Summary of Contents for Datavideo TLM-700UHD

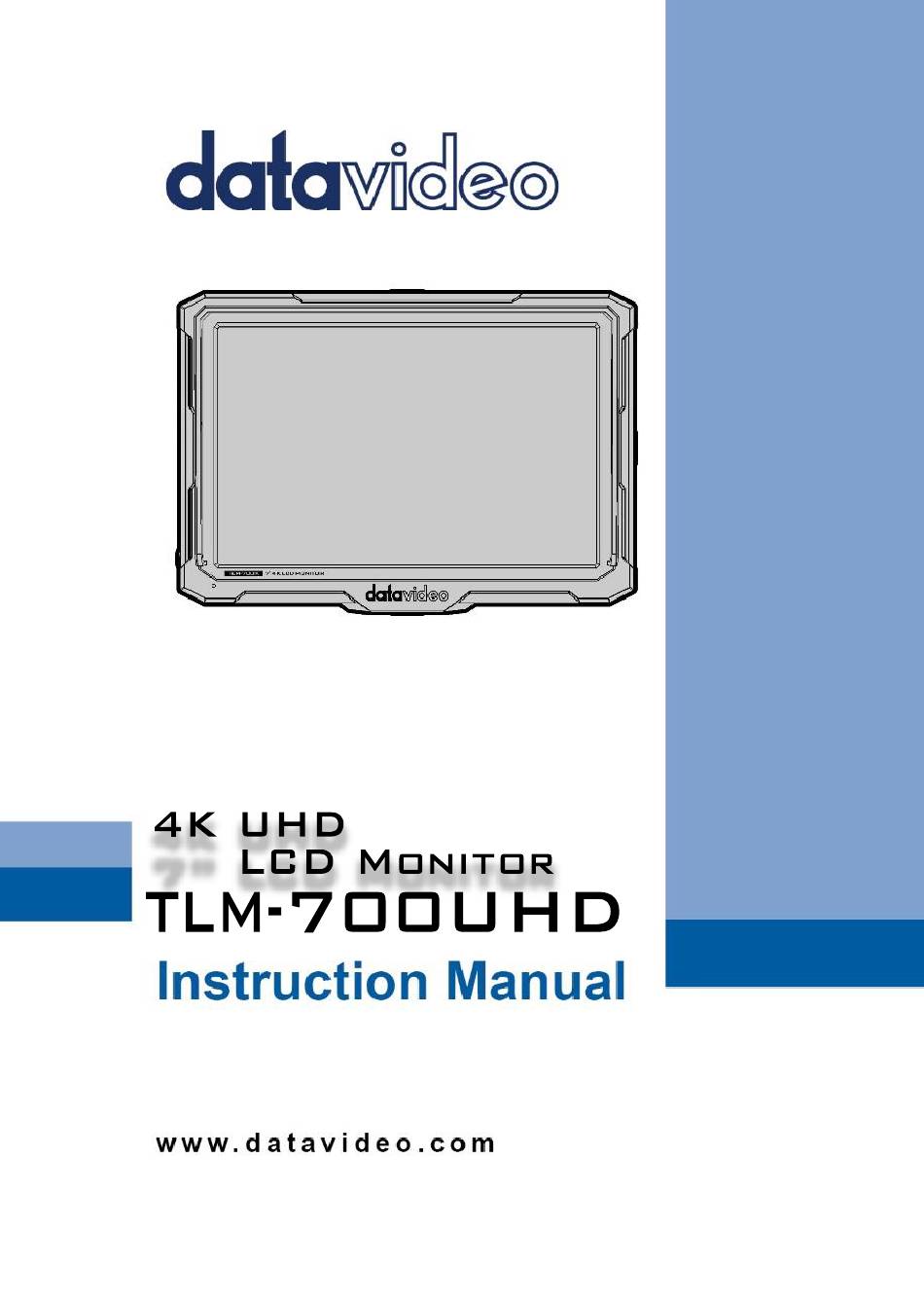

  • Page 1 7”...

  • Page 2: Table Of Contents

    WARRANTY ..............4 ............4 TANDARD ARRANTY ............ 5 HREE ARRANTY DISPOSAL ..............6 INTRODUCTION ............. 7 TLM-700UHD M ..........8 ODEL ......9 OMPATIBLE ESOLUTIONS AND ORMATS CONNECTIONS AND CONTROLS ......12 OSD MENU ............17 DIMENSIONS ............24 FIRMWARE UPGRADE PROCEDURE ......
  • Page 3 Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual.

  • Page 4: Fcc Compliance Statement

    This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.

  • Page 5: Warranty

    Warranty Standard Warranty  Datavideo equipment is guaranteed against any manufacturing defects for one year from the date of purchase.  The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.

  • Page 6: Three Year Warranty

    Non-PCIe Card and third party provided PC components are covered for 1 year.  The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.

  • Page 7: Disposal

    Waste Electrical and Electronic Equipment. For more detailed information about the recycling of this product, please contact your local Datavideo office or your local recycling centre.

  • Page 8: Introduction

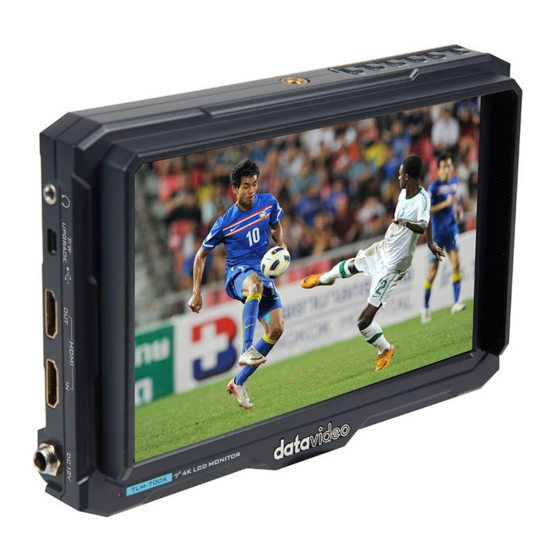

    1. Introduction The Datavideo TLM-700UHD 7” 4K LCD Monitor features 4K inputs at the 7” screen size. It’s UHD 4K resolution is compatible with 16:9 Aspect Ratio LCD field monitor which presents its images on a Full HD 1920x1200 LCD panel.

  • Page 9: Tlm-700Uhd Model Type

     75mm VESA and hot shoe mounts for fixing on the top of camera or camcorder TLM-700UHD Model Type Model TLM-700UHD Image System Optimized for use with the professional DSLRs & Camcorders...

  • Page 10: Compatible Resolutions And Formats

    Compatible Resolutions and Formats TLM-700UHD Interface Format HDMI 4096×2160p @23.98 Support 4096×2160p @24 Support 4096×2160p @25 Support 4096×2160p @29.97 Support 4096×2160p @30 Support 4096×2160p @50 Support 4096×2160p @59.94 Support 4096×2160p @60 Support 3840×2160p @23.98 Support 3840×2160p @24 Support 3840×2160p @25 Support 3840×2160p @29.97...
  • Page 11 3840×2160p @60 Support 2048×1080p @50 Support 2048×1080p @59.94 Support 2048×1080p @60 Support 1920×1080p @59.94 Support 1920×1080p @60 Support 1920×1080p @50 Support 1920×1080p @29.97 Support 1920×1080p @25 Support 1920×1080p @30 Support 1920×1080p @23.98 Support 1920×1080p @24 Support 1920×1080i @59.94 Support 1920×1080i @60 Support 1920×1080i @50 Support...
  • Page 12 1280×720p @24 Support 1280×720p @25 Support 1280×720p @29.97 Support 1280×720p @30 Support 720×480i @59.94 Support 720×480i @60 Support 720×480p @59.94 Support 720×480p@60 Support 720×576i@50 Support 720×576p@50 Support...

  • Page 13: Connections And Controls

    Connections and Controls Item Buttons Description Menu Function: press this button to activate the OSD menu which is displayed on the screen. MENU Button Shortcut Functions: Press the left/right button, the volume adjusting bar will appear at the bottom of the screen. At this time, press the menu button to select brightness,...
  • Page 14 contrast, saturation, tint, sharpness and Exit. Confirm Function: 1. Press the menu button once to show the OSD menu. 2. After the OSD menu is shown, press the menu button once to highlight the menu option and it is ready to navigate the OSD menu by using the left/right button.
  • Page 15 Press this button to go back to previous step EXIT Button or to exit the OSD menu. Long press any F1 key for 3-5 seconds to pop-up a shortcut menu directly. After the pop-up shortcut menu is shown, press the F1 button to set the value or mode of that shortcut option, then press EXIT to exit.
  • Page 16 Note: 1. This mini USB interface is used for firmware update only, please DO NOT turn off the power of the TLM-700UHD when the USB cable is connecting to the mini USB interface or the TLM-700UHD can not be turned off normally.
  • Page 17 HDMI Video and Audio input from an HDMI device. Input DC In DC In Socket for connecting the power Socket supply cable. Slide the switch to the left side before Battery inserting the battery plate into the slot and Plate then slide the switch to the right side to lock Switch the battery plate.

  • Page 18: Osd Menu

    Press the MENU button to select an option or confirm a value. The six main categories of the TLM-700UHD OSD menu is shown as follows. 1. Picture...
  • Page 19 3. Function 4. Waveform...
  • Page 20 5. Audio 6. System...
  • Page 21 The sub menus and details of the setting values are shown as follows. Menu Sub-menu Value Brightness 0~100 Contrast 0~100 Picture Saturation 0~100 Tint 0~100 Sharpness 0~100...
  • Page 22 Color Temp. 6500K/7500K/9300K/User Red Gain 0~255 Green Gain 0~255 Blue Gain 0~255 Red Offset 0~511 Green Offset 0~511 Blue Offset 0~511 Center Marker Off/On Off/16:9/1.85:1/2.35:1/4:3/3:2/ Aspect Marker 9:16 Off/95%/93%/90%/88%/85%/80 Safety Marker Marker Marker Color Red/Green/Blue/White/Black Grid Off/On Marker Mat. 0ff/1/2/3/4/5/6/7 Thickness 2/4/6/8...
  • Page 23 Scan Aspect/Pixel To Pixel/Zoom Aspect Full/16:9/1.85:1/2.35:1/4:3/3:2 Underscan Off/On Function Check Field Off/Mono/Red/Green/Blue Zoom ×1.5/×2/×3/×4 Freeze Off/On DSLR 0ff/5D2/5D3 Peaking Off/On Peaking Color Red/Green/Blue/White/Black Peaking Level 0~100 Waveform False Color Off/On Exposure Off/On Exposure Level 0~100 Histogram Off/On Volume 0~100 Audio Level Meter Off/On...
  • Page 24 Language English/中文 OSD Timer 10S/20s/30s Image Flip Off/H/V/ H/V Back Light 0~100 System F1 Configuration All Functions Format Information Off/On Reset Off/On CPU Version V1.0 FPGA Version V1.0 *The parameters such as Red Gain, Blue Gain, Green Gain, Red Offset, Green Offset and Blue Offset can be activated and shown only when the Color Temp.

  • Page 25: Dimensions

    4. Dimensions...
  • Page 26 All measurements in millimetres (mm)

  • Page 27: Firmware Upgrade Procedure

    5. Firmware Upgrade Procedure The TLM-700UHD provides a mini USB firmware upgrade interface for users to upgrade the latest CPU and FPGA firmware. Requirement USB female to mini USB transfer cable A USB thumb drive Please follow following steps for upgrading the CPU and FPGA firmware.
  • Page 28 It will cost about 20 seconds to finish the firmware update procedure. Step 5. After the firmware update is finished, the TLM-700UHD will be turned off automatically. After that, you can check that whether the version number that is shown in the Version option on the main OSD...
  • Page 29 USB thumb drive. Step 3. Please long-press the EXIT button to enter the engineering mode when the TLM-700UHD is booting. Step 4. Please select the option “FPGA Update” and then set this option to “On” and then the CPU firmware upgrade procedure will start automatically.

  • Page 30: Specifications

    6. Specifications Model Name TLM-700UHD Product Name 7" 4K LCD Monitor Screen 7" TFT LCD Chassis Camera Mount Resolution 1920 x 1200 (H) +85/-85° Viewing Angle (V) +85/-85° Luminance/Co 450 cd/m² ntrast 1000:1 1x HDMI (2.0), HDCP 2.2 Video Inputs Loop Through 1x HDMI (2.0)
  • Page 31 576i:50Hz, 576p:50Hz, 480i: 59.94/60Hz), 480p: 59.94/60Hz Aspect Ratio Full/16:9/1.85:1/2.35:1/4:3/3:2 Aspect Marker Off/16:9/1.85:1/2.35:1/4:3/3:2/9:16 Safety Marker Off/95%/93%/90%/88%/85%/80% Tally LED Embedded Audio (48KHz sampling) Analog Stereo (Phone Jack), Audio In/Out Speaker x1 (2W) Focus assist (peaking), False Color, Histogram, Special Exposure, Pixel to Pixel Zoom, Underscan, Check Features Field(blue-only mode, monochrome mode) Dimension(L...

  • Page 32: Accessories

    Accessories Accessory Quantity Folding sun shade cover 1 Piece HDMI A/C cable 1 Piece Battery plate(F970) 1 Piece Hot shoe mount 1 Piece 12V adapter 1 Piece...
  • Page 33 Note...
  • Page 34 Note...
  • Page 35 Note...

  • Page 36: Service And Support

    Datavideo Technologies Co., Ltd. All rights reserved 2020 Dec.-01.2020 Ver:E1...
