Processor Board - Partlow MRC 7000 Installation & Operation Manual

50
Appendix A
Board Layout - Jumper Positioning

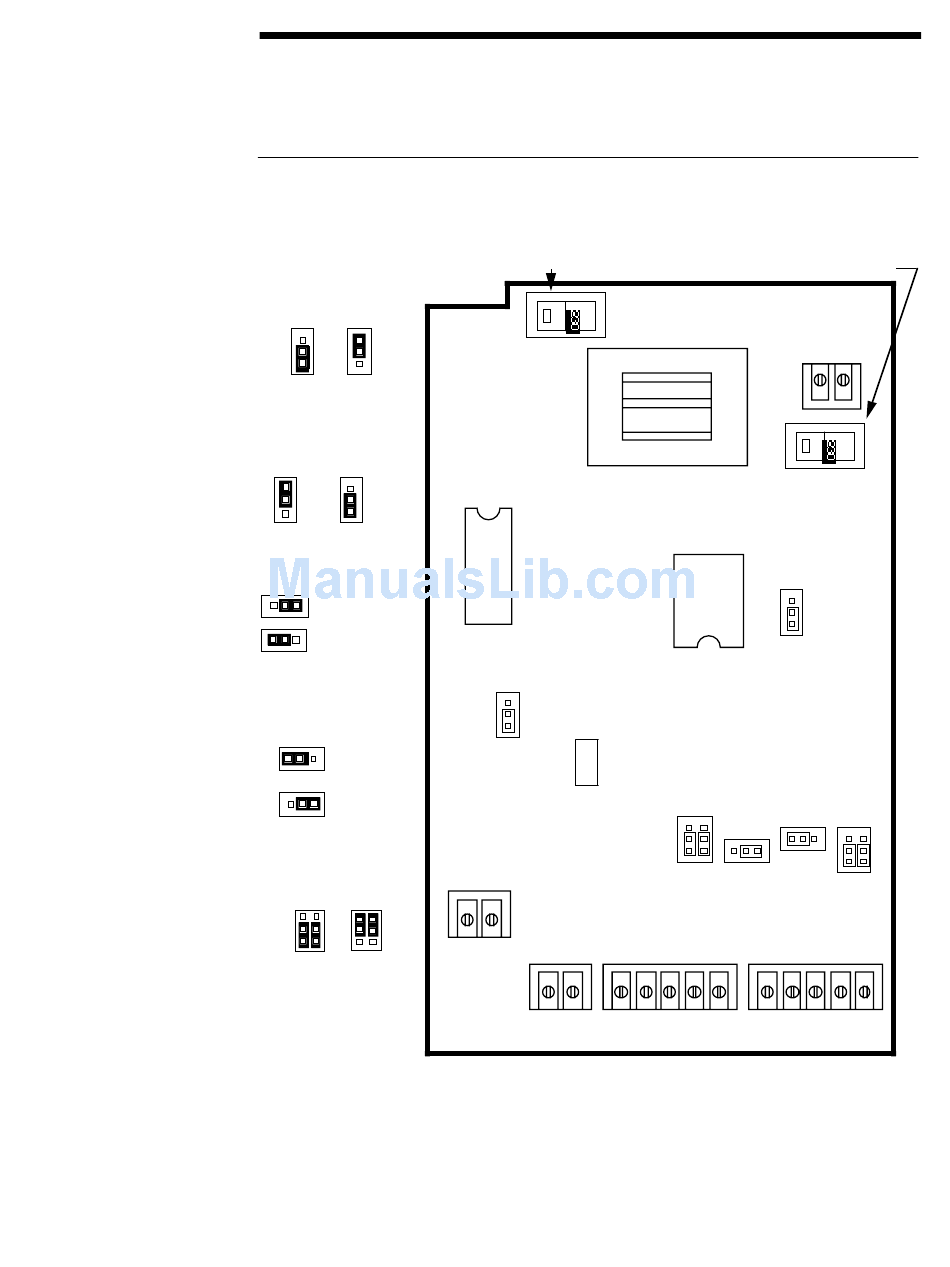

FIGURE A-1 - PROCESSOR BOARD
JU1
ENABLE MODE
UNLOCKED LOCKED
JU3
EPROM SIZE
32K
64K
JU4
PEN 1 INPUT
T/C,mV, RTD
VOLT/mA
JU5 PEN 2 INPUT
(REVERSE OF JU4)
T/C,mV, RTD
VOLT/mA
JU6 /JU7
RTDINPUT
NON- RTD
RTD
SWI for Rev. Y and above
U5
JU1
Battery
TB2
TB3
Top
SWI for Rev. X and below
230/115 VAC
SWITCH 230 VAC
MODEL ONLY
JU3
U7
JU6
JU5
JU4
TB4 TB5
TB1
JU7
