G A U G E S
T H E R M O M E T E R S
T R A N S M I T T E R S
R E C O R D E R S
C O N T R O L L E R S
L I Q U I D
L E V E L
S Y S T E M S
R T D S

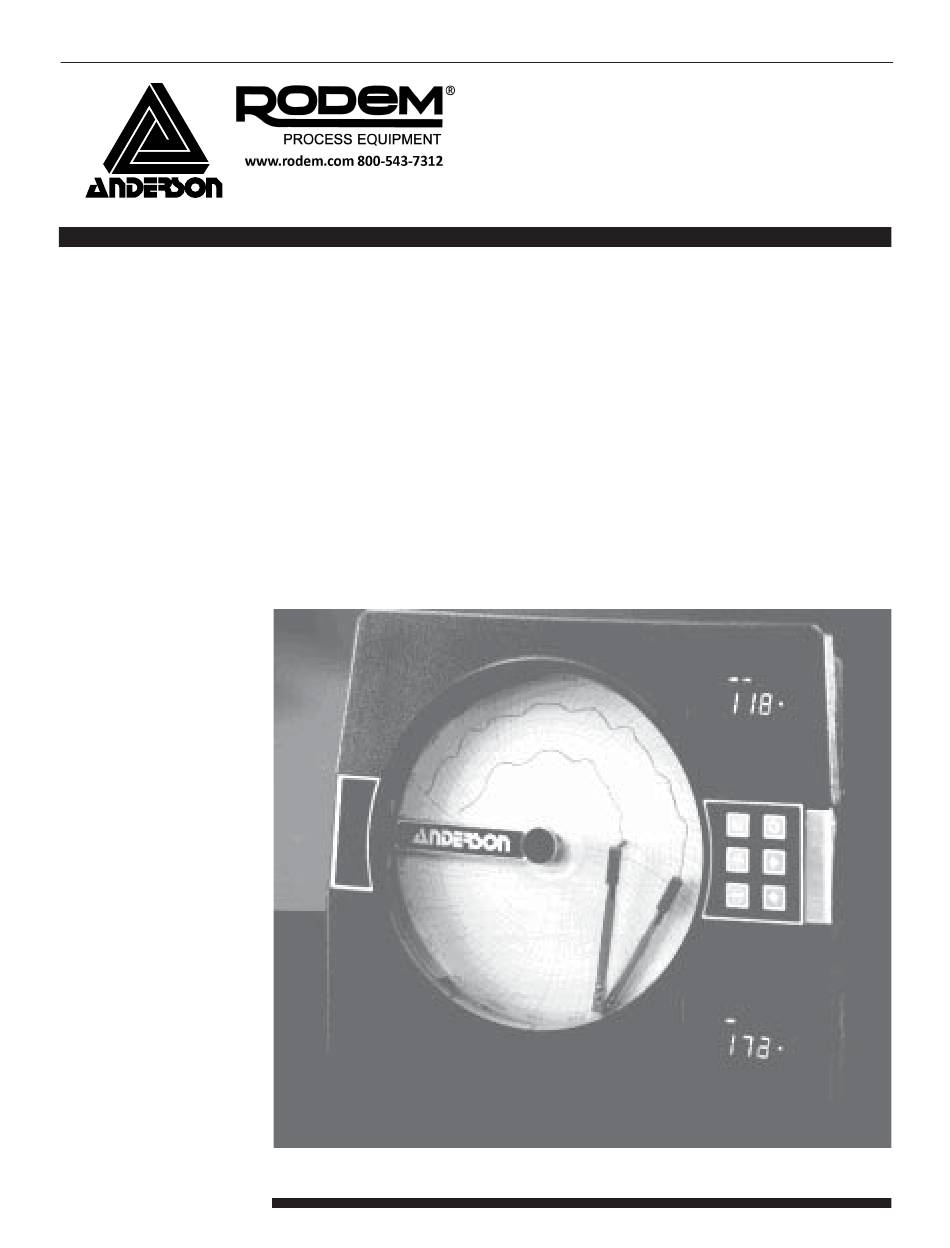

ONE AND TWO PEN CIRCULAR CHART RECORDER
ACR 710
Installation, Wiring, Operation Manual
Form AIC 3382
Edition 2 © December 1996
ANDERSON INSTRUMENT CO. • 156 AURIESVILLE RD. • FULTONVILLE, NY 12072 USA • 1-800-833-0081 • FAX 518-922-8997
ANDERSON EUROPE CALL 2-353-1520 • FAX 2-353-1533

Advertisement

Table of Contents
loading

Related Manuals for Partlow ANDERSON AIC 3382

Summary of Contents for Partlow ANDERSON AIC 3382

  • Page 1 G A U G E S T H E R M O M E T E R S T R A N S M I T T E R S R E C O R D E R S C O N T R O L L E R S L I Q U I D L E V E L S Y S T E M S...
  • Page 2 Would you like information on our other products? Make a copy of this page, check next to the products you are interested in and fax it to us at 1-518-922-8997 or just call us at 1-800-833-0081 GAUGES RECORDERS THERMOMETERS CONTROLLERS TRANSMITTERS LIQUID LEVEL SYSTEMS RTDS...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION 1 - GENERAL PAGE NUMBER 1.1 Product Description SECTION 2 - INSTALLATION & WIRING 2.1 Installation & Wiring 2.2 Unpacking 2.3 Location 2.4 Mounting 2.5 Preparation for Wiring 2.6 Wiring Connections SECTION 3 - CONFIGURATION 3.1 Configuration (Set Up) 3.2 Configuration/Jumper Positioning 3.3 Operation Summary 3.4 Start up Procedure...
  • Page 4 FIGURES & TABLES Figure 1-1 Recorder Description Figure 1-2 Recorder Display Figure 2-1 Installation Panel Dimensions Conduit Opening Locations Figure 2-2 Noise Suppression Figure 2-3 Noise Suppression Figure 2-4 Board and Terminal Locations Figure 2-5 AC Power Input Figure 2-6 Thermocouple Inputs Figure 2-7 RTD Inputs...

  • Page 5: Section 1 - General

    Product Description 1.1.1 GENERAL The instrument is a microprocessor based circular chart recorder capable of measuring, displaying and recording from a variety of inputs. Applications include temperature, pressure, flow and others. The instrument can be specified as either a single or dual pen unit. Recording, alarm, or limit settings and other parameters are easily entered via the keypad.
  • Page 6 1.1.2 RECORDING The instrument records the selected process variable on a 10-inch circular chart. One box of standard charts is provided with each recorder. Charts are available in a wide selection of ranges. Chart rotation speed is programmable from 0.1 to 999.9 hours per revolution in 0.1 hour increments.

  • Page 7: Installation & Wiring

    Installation and Wiring 2.1 Read these instructions carefully before proceeding with installation and operation. Electrical code requirements and safety standards should be observed. Installation should be performed by qualified personnel. CAUTION: The Instrument AC power input is specified in the model number and on the wiring label affixed to the the top center of the platen.

  • Page 8: Preparation For Wiring 2.5

    FIGURE 2-1 Preparation for Wiring 2.5 2.5.1 WIRING GUIDELINES Electrical noise is a phenomenon typical of industrial environments. The following are guide- lines that must be followed to minimize the effect of noise upon any instrumentation. 2.5.1.1 INSTALLATION CONSIDERATIONS Listed below are some of the common sources of electrical noise in the industrial environment: •...
  • Page 9 2. If possible, eliminate mechanical contact relay(s) and replace with solid state relays. If a mechanical relay being powered by an instrument output device cannot be replaced, a solid state relay can be used to isolate the instrument. 3. A separate isolation transformer to feed only instrumentation should be considered. The transformer can isolate the instrument from noise found on the AC power input.
  • Page 10 FIGURE 2-2 FIGURE 2-3 Inductive Load 2.5.2 SENSOR PLACEMENT (THERMOCOUPLE OR RTD) Thermocouple lead resistance should not exceed 300 ohms. It this is exceeded, instrument accuracy could be affected. Two wire RTD's should be used only with lead lengths less than 10 feet. If the temperature probe is to be subjected to corrosive or abrasive conditions, it should be protected by the appropriate thermowell.
  • Page 11 THERMOCOUPLE LEAD RESISTANCE Thermcouple lead length can affect instrument accuracy since the size (gauge) and the length of the wire affect lead resistance. To determine the temperature error resulting from the lead length resistance, use the following equation: Terr = TLe * L where;...
  • Page 12 RTD LEAD RESISTANCE RTD lead length can affect instrument accuracy, since the size (gauge) and length of the wire affect lead resistance. To determine the temperature error resulting from the lead length resistance, use the follow- ing equation: Terr = TLe * L where;...

  • Page 13: Wiring Connections

    Wiring Connections All wiring connections are typically made to the instrument at the time of installation. Connec- tions should be made at the terminal blocks , two 12 gauge wires maximum. Terminal blocks are designated TB1 through TB13. See Figure 2-4 for the terminal block locations (SPST Relay Board shown).
  • Page 14 FIGURE 2-5 AC Instrument Power Input Connect the 115 VAC hot and neutral to terminals 1 and 2 respectively of TB1. See Figure 2-4 (page 13) for Terminal Board locations on the instrument. Connect the 230 VAC one leg to each terminal, be sure to check the position of the Voltage Selector switch provided with 230 VAC instruments.
  • Page 15 FIGURE 2-8 Volt, Millivolt and milliamp Input Make the volt, millivolt or milliamp connections as shown below. Use TB4 for the Pen 1 input, and TB5 for the Pen 2 input. Terminal 1 is positive and terminal 2 is negative. The milliamp input requires the installation of an appropriate shunt resistor (ordered separately) between terminals 1 and 2.
  • Page 16 2.6.4 OUTPUT CONNECTIONS Relay output(s) if provided in the instrument may be assigned to alarm output functions for Pen 1 and/or Pen 2 (if present) if instrument is recorder. Relay outputs, if instrument is a limit device, may be assigned to limit output functions. Current outputs may be assigned to process value retransmission output for Pen 1 and/or Pen 2 (if present).
  • Page 17 FIGURE 2-12 Current Output Connections are made to current outputs A thru D as shown. Each current output is program- mable as either 4 to 20 mADC or 0 to 20 mADC. Each output must be assigned to the desired function (refer to Table 3-2, page 28, for details.) Terminal connections are made using TB10 through TB13 for current output A through D respectively.

  • Page 18: Section 3 - Configuration

    Configuration 3.1 After completing installation and wiring of the instrument the configuration (set up) proce- dures must be performed to prepare the instrument for operation of the intended application. The procedures include selecting specific parameters, entering data and possible jumper positioning.

  • Page 19: Configuration/Jumper Positioning

    Shipped Configuration/Jumper Positioning 3.2 Each instrument is factory shipped ready to accept a thermocouple input on TB 4 and TB 5. All configuration parameters in each mode are set to default values. These defaults are shown in tabular form after the description for each mode. Instrument AC power input is as specified in the instrument model number and is shown on the ratings label.

  • Page 20: Start Up Procedure 3.4

    3.3.2 CONFIGURATION DISPLAYS Each pen specified is provided with its own 4 digit LED display. These are used during configuration to display the parameter codes and values. The display located in the upper right hand corner of the instrument is used to show the codes for Pen 1 and those that are common between Pens 1 and 2.

  • Page 21: Front Panel Operation

    Step 2B - For instruments with software revision r3.00 and above Upon power up, a brief flash on all displays (upper and, if equipped, lower) will occur to show the instrument is "alive". Then 7XXX will be displayed (X representing digits) then XXXX, then XXXX, identifying the twelve digit model number as defined in the order matrix.
  • Page 22 3.5.2 KEYPAD CONTROLS The keys provided on the keypad and their functions include: SCROLL: Used to : Advance the display through the enabled modes. While in a mode, used to sequence the parameter codes and values. Exit some Test and Calibration functions. Work in conjunction with other keys.
  • Page 23 entry into the Enable mode is not possible until the jumper is moved to the unlock position. 3.5.3 PROGRAM MODE CONFIGURATION PROCEDURE The Program mode provides a means to configure or reconfigure the instrument operation within the limits of the hardware specified and provided. Parameters to be configured will be only those that are applicable as determined by the hardware provided.
  • Page 24 This is the mode code for the Alarm Set mode. With ASEt in the display , press the DOWN key to enter the mode. If the ASEt code does not appear refer to Table 3-1 (page 24) for Enable mode instructions. 3.5.4.2 MOVEMENT IN THE ALARM SET MODE Each time the DOWN key is pressed while a parameter code is being displayed another parameter code will be displayed.
  • Page 25 ENABLE MODE FLOW CHART Prog Pen 1 & Pen 2 Prnd inPS iCor Pout dPoS HyAo PAEC SPuL SPLL Unit...
  • Page 28 PROGRAM MODE FLOW CHART TABLE 3-2 PROGRAM MODE CONFIGURATION PROCEDURE Press the SCROLL key until Prog is displayed. Press the DOWN key to enter the Program mode. Pen 1 will be displayed in the upper display. To enter the Pen 1 parameter, press the DOWN key.
  • Page 29 DISPLAY AVAILABLE FACTORY YOUR STEP DESCRIPTION CODES SETTINGS SETTING SETTING 3=Deviation Only 4=Deviation and Setpoint 5=Setpoint Only Decimal Position dPoS 0=None 1=One decimal position 2=Two decimal positions 3=Three decimal positions RTD and thermocouple inputs are limited to either 0 or 1 decimal positions Engineering Units -9999 to 9999...
  • Page 30 DISPLAY AVAILABLE FACTORY YOUR STEP DESCRIPTION CODES SETTINGS SETTING SETTING ment will advance the display to be inPS in the Pen 2 window. The Pen 2 Program mode parameter selections can be made now. Pressing the SCROLL key with the PAEC param- eter value displayed in the Pen 2 window will cause the display to advance to the unit Unit Parameters parameters.
  • Page 31 DISPLAY AVAILABLE FACTORY YOUR STEP DESCRIPTION CODES SETTINGS SETTING SETTING in Off Mode in the Off mode 1=Chart stops rotating while in the Off mode Communications Options Parameters Communication CCon 0=Off Configuration 1=Monitor Mode (Read Only) 2=Normal Mode (Read and Write) 3=Total Access with Limit Checking 4=Total Access without Limit Checking Communication Bit...
  • Page 32 ALARM SET FLOW CHART ASEt PAL1 Actual Displa On/Off Display - Use arrow keys PAL2 to turn on or off Scroll Ke Numeric Display - Use arrow keys to change value Up Arrow Ke Down Arro TABLE 3-3 ALARM SET MODE CONFIGURATION PROCEDURE Press and release the SCROLL key until ASEt is displayed, then press the DOWN key.

  • Page 33: Service 4.1

    Service 4.1 This section contains information regarding calibration and test procedures that can be performed in the field as well as items concerning the normal maintenance of the instrument. Changing Charts Chart changes may be done while in the normal operating mode. CAUTION: The chart flange assembly pin is sharp to perforate the chart.

  • Page 34: Calibration 4.4

    Calibration 4.4 CAUTION: Do not attempt any calibrations without the proper test equipment that meets or exceeds the specifications listed. Press and release the SCROLL key until CAL appears on the display , then press the DOWN key to enter the mode. The display will change to CAL1. Press the SCROLL key to advance the display to the other calibration modes available.
  • Page 35 TABLE 4-1 CALIBRATION PROCEDURES Calibration Procedure Description CAL 1 Reinitialization of program and tuning values. CAL 2 Main calibration necessary for all input types. CAL 3 Cold Junction Compensation calibration used to correct for component variation in the CJC circuit. Necessary for thermocouple inputs. CAL 4 Cold Junction Utility, displays temperature the cold junction compensator is sensing.
  • Page 36 Error recovery: See section 4.6 (page 43) for details. Insure that the millivolt source is connected correctly and functioning properly. The calibration can be exited when hLd1 or the calibration reference number is displayed by pressing the SCROLL key. CAL2 QUICK CALIBRATION This routine will allow the operator to execute a rough calibration on their unit via the keypad with no other equipment or disturbance to established wiring.
  • Page 37 4.4.5 CAL 5 RTD INPUT This procedure determines and saves calibration values relating to RTD inputs. This calibra- tion must be preceded by CAL 2 to properly calibrate the instrument. Both RTD inputs must be calibrated and both inputs must have valid inputs during the calibration. Decade boxes with .01% resolution or equivalent are required.
  • Page 38 4.4.7 CAL 9 PEN CALIBRATION This procedure is used to calibrate the pen(s). No special test equipment required. Valid inputs must be connected to TB 4 and TB 5 before performing this calibration. With CAL 9 displayed, push and hold the DOWN key, then press the SCROLL key . Release both keys and the display will indicate PEn1.

  • Page 39: Test Mode

    Test Mode 4.5 5 5 5 5 To enter the Test mode, press and release the SCROLL key until tESt appears on the display then press the DOWN key. tSt1 will be displayed, press and release the SCROLL key to advance the display to the desired test. Tests 1, 2 and 3 are performed as a unit so the display will advance directly to tSt4 from tSt1.
  • Page 40 TABLE 4-2 TEST PROCEDURES AND DESCRIPTION N N N N Test Description Test 1 Microprocessor internal RAM test. Used to check the processor RAM to make sure it is functioning correctly. Test 2 External RAM test, used to test the RAM chip for proper function. Test 3 EPROM checksum test, used to check that the EPROM program is correct.
  • Page 41 4.5.5 TEST 5 KEYPAD/DISPLAY TEST This test allows the operator to verify that the keys work and that all display elements can be lighted. No special test equipment is required. With tSt5 displayed, press and hold the DOWN key, then press the SCROLL key and then release both keys.
  • Page 42 The current output reading should be ± 0.1 mADC at any output value. A ± 5 % of span adjustment for the current output(s) is provided by using the potentiometer adjacent to the current output on the Current Output board. See Appendix A-4 (page 53). To exit the test, press the SCROLL key and tSt7 will be displayed.

  • Page 43: Trouble-Shooting And Diagnostics 4.6

    Trouble-shooting and Diagnostics 4.6 The Trouble-shooting Guidelines Section consists of two columns. The first column is a list of some possible instrument conditions. The second column is a list of steps that should improve the condition. The steps should be performed in order until the condition improves or all the steps have been completed.
  • Page 44 Model Number Displayed 1. Turn off the instrument power, wait 5 seconds then during power up is reapply the power. Verify that the number displayed incorrect during the power up sequence is the same as indicated on the label affixed to the platen. If the number displayed is incorrect perform the following steps: a.
  • Page 45 5. If the output appears not to turn off remove the power to the instrument. Open the cover and loosen the platen hold down screw. Swing the platen open. Clip the resistor located on the Relay Board adjacent to the output(s) that seem to stay on (See Appendix A-2, page 51).
  • Page 46 4. For software revision R2.99 and below, perform Test 9 as described in the Test Section of the manual (page 42). If the pen feedback voltage does not vary, check the pen Potentiometer Segment board for proper ribbon cable connection to the Processor board (Appendix A-1, page 50) and that the pen position fingers are making contact with Potentiometer Segment board.
  • Page 47 Er 2 - External RAM 1. Turn off the power to the instrument. Wait 5 seconds, Failure and turn the power on. Er 3 - EPROM Checksum 1. Perform the steps listed for Er 1 except that Failure the EPROM (U7) on the Processor board should be inspected.
  • Page 48 Er12 - CAL2 Voltage Error 1. Check that 50 mVDC is properly connected to the instrument and is within the tolerance limits as indicated in the CAL2 procedure of the Calibration section (page 35). 2. Turn off the power to the instrument and open the cover.
  • Page 49 Momentary ER 70 - 1. May occur when incrementing or decrementing a Controller unable to respond value. Error clears itself. within 250 milliseconds Momentary ER 71 - 1. Computer program must wait longer for a response Byte received before the from the instrument.

  • Page 50: Processor Board

    Appendix A Board Layout - Jumper Positioning FIGURE A-1 - PROCESSOR BOARD...

  • Page 51: Spst Relay/Ssr Driver Output Board

    FIGURE A-2 - SPST RELAY/SSR DRIVER OUTPUT BOARD (rly E) (rly F) (rly D) (rly B) (rly C) (rly A) (rly G) (rly H) If the relay is connected to a Resistor Relay high impedance AC device, Relay A the snubber network used to Relay B protect the relay contact may Relay C...

  • Page 52: Spdt Relay/Ssr Driver Output Board

    FIGURE A-3 - SPDT RELAY/SSR DRIVER OUTPUT BOARD (rly B) (rly A) (rly C) (rly D) (rly G) (rly H) If the relay is connected to a Resistor Relay high impedance AC device, R1, R2 Relay A the snubber network used to R3, R4 Relay B protect the relay contact may...

  • Page 53: Current Output Board

    FIGURE A-4 - CURRENT OUTPUT BOARD TB12 TB13 TB10 TB11 If this option board was ordered, you will find it located in the lower right hand corner of the instrument.

  • Page 54: B - Glossary

    Appendix B Glossary DISPLAY FILTER FACTOR This parameter is adjustable from 1 to 20 which represents the number of scans per second of the process variable that are averaged together before updating the displayed and re- corded value. The factory default value is 1 = no filtering. Display code dFF. HYSTERESIS This parameter is adjustable from 0 to 300 units representing the width of the band (half above and half below setpoint).

  • Page 55: C - Model Number Hardware Matrix Details

    Appendix C - Order Matrix OPTION SUFFIX PEN 1 00 No Options 1 Recorder Only 01 Sealable Chartplate 4 High or Low Limit PEN 2 VOLTAGE (50/60 HZ) 0 None 1 115VAC Input 1 Recorder only 2 115/230 VAC Input *RELAY OUTPUTS CSA Approved 4 115VAC Input...

  • Page 56: D - Specifications

    Appendix D - Specifications Measurement Error Limit • Type J, K, T, E, N, C T/C's and RTD +/- 0.25% of reading plus 1 degree @ 25 degrees C • Type R, S, B T/C's +/- 0.25% of span @ 25 degrees C •...
  • Page 57 Input Specifications THERMOCOUPLE TYPE RANGE TYPE RANGE 0 to 760 C 0 to 750 C 0 to 1400 F 0 to 1400 F 0 to 1360 C 200 to 1800 C 0 to 2500 F 400 to 3300 F -220 to 400 C 0 to 1300 C -330 to 750 F 0 to 2370 F...
  • Page 58 RECORD Chart 10 inch circular chart; 100 charts furnished with each instrument if standard range Chart Range -9999 to 9999 degrees/units Chart Drive DC stepper motor Chart Rotation User configurable from 0.1 to 999.9 hours per revolution Pen Type Disposable Fiber-tip Pen Color Pen 1 - Red Pen 2 - Green...

  • Page 59: E - Software Record/Reference Sheet

    Appendix E Software Reference Sheet PROGRAM MODE Pen 1 Pen 2 ENABLE MODE rLyA inPS EtSt rLyb iCor ECAL rLyC EPro u n i t rLyd EASt rLyE disP ESPC rLyF dPoS rLyg rLyH ALARM CurA HyAo Pen 1 Pen 2 Curb SPuL CurC...
  • Page 60 Warranty and Return Statement These products are sold by The Anderson Instrument Company (Anderson) under the warranties set forth in the following paragraphs. Such warranties are extended only with respect to a purchase of these products, as new merchandise, directly from Anderson or from an Anderson distributor, representative or reseller, and are extended only to the first buyer thereof who purchases them other than for the purpose of resale.
