OPERATING MANUAL BGS-250-115V-V2
VERSION 1.1
www.blastrac.com
1-800-256-3440

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BGS-250-115V-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Blastrac BGS-250-115V-V2

Summary of Contents for Blastrac BGS-250-115V-V2

  • Page 1 OPERATING MANUAL BGS-250-115V-V2 VERSION 1.1 www.blastrac.com 1-800-256-3440...

  • Page 2: Table Of Contents

    Table of contents 1 Introduction 2 Machine description Application Accessories 3 Safety Safety precautions Safety regulations Safety instructions 4 Initial operation Checkpoints of electrical safety Checkpoints of machine safety Removing the diamond disc Mounting the diamond disc 5 Operation Switch on the BGS-250 Switch off the BGS-250 6 Maintenance Replacing the flexible coupling...

  • Page 3: Introduction

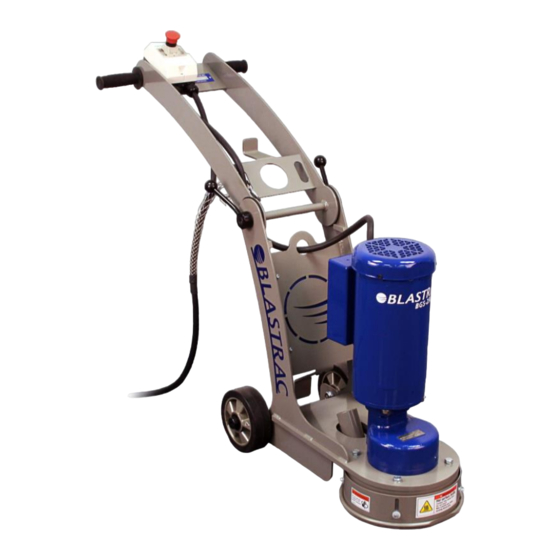

    The rotating parts are covered by a protection cap with a connection for a dust hose. With a suitable Blastrac dust collector you can work in a virtually dust free environment.

  • Page 4: Safety

    Wear gloves and dust mask during operation of machine. Safety instructions Disconnect main plug during inspections and repairing machine.  Keep machine original, only use original Blastrac parts.  Do not pull out the power supply cable by the wire, use the connector to unplug. ...

  • Page 5: Initial Operation

    4. Initial operation Before using the machine it is committed to inspect the machine. It is not permitted to use machine if machine does not meet safety standards according to the check points below. Check points for electrical safety  Use only extension cables for extending the main cable that are sized and marked in accordance with the overall power consumption of the machine.

  • Page 6: Operation

    5. Operating During operation of the BGS-250, the following additional safety instructions must be followed closely. Switch on the BGS-250  Connect the dust hose with the machine. Turn on the dust collector before switching on the machine.   Stand behind the machine.

  • Page 7: Maintenance

    Store the cleaned machine in a dry humid free room. Protect the electrical motor from moisture, heat, dust and shocks. All repair work should be done by qualified Blastrac personnel only, this will guarantee a safe and reliable machine. Any warranty on this machine will be void if: ...

  • Page 8: Technical Data

    862 RPM Disc speed 115V/15A Voltage/Amperage 24” Length (L) 18” Width (W) 32” Height (H) Maximum height steering 48” handle 10” Working width 165 LB Weight Design and specifications are subject to change without notice by Blastrac. 48” 32” 18” 24”...
  • Page 9 SERVICE MANUAL BGS-250 V2-115V VERSION 1.1 www.blastrac.com 1-800-256-3440...

  • Page 10: Contact

    Index 1. Spare parts 2. Electrical 3. Contact...

  • Page 11: Spare Parts

    1. Spare Parts Fig. 01 Fig. 01 Item Part number Description Qty. CP-10808 Control Panel P004024 Grips PG-10486 Upper Assembly CP-10758 Handle Adjustment Lever PG-10485 Lower Assembly CP-10759 Shoulder Bolt E03603 Wheel 160-50/60 800913 3/4” Nylon Washer 800899 M16 Flange Nut Fig.
  • Page 12 Item Part number Description Qty. P004621 Motor/ Elec. 115/230V CP-10630 Gear Reducer/ Parallel Shaft PG-10088 Upper Dust Hood PG-10076 Lower Dust Hood E04595 Gearbox Coupling CP-10061 Flexible Coupling DG05 Adapter Disk B20507 Tube/ Spacer 800900 HCS M10 x 1.5 – 50mm 800902 M10 Plain Washer 800901...
  • Page 13 Item Part number Description Qty. CG-1020ASEG 10" 20 SEGMENT PREMIUM ARROW PLATE 800914 12mm x 1.75 x25 SCREW, FHSC...
  • Page 14 2. Electrical Schematic...
  • Page 15 Layout & Device Settings...
  • Page 16 13201 North Santa Fe Avenue  Oklahoma City, OK 73114  Ph: 800-256-3440  F: 405-478-8608 blastrac.com Product Warranty Standard Equipment Products: Blastrac warrants its Blastrac Standard Equipment Products against defects in quality of material and workmanship, under normal and proper use for a period of 1 Year from the date of delivery, as noted on the returned warranty registration card, or, in the case of Rental Fleet Machines, 180 Days from the date of assignment to Rental Fleet.
