Atlantic WOYA060LCD Installation And Operating Manual

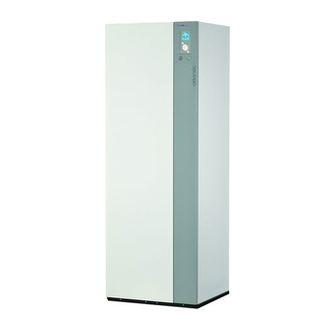

Alfea extensa duo + series. heat pump air/water split 2 services
Hide thumbs

Advertisement

Table of Contents

alféa extensa duo +
Heat pump air/water
split 2 services
Outdoor unit
WOYA060LDC
WOYA080LDC
WOYA100LDT
Hydraulic unit
023208
023209
Document n° 1578-3 ~ 26/07/2013
FR
NL
DE
EN
ES
PT
PL
PT
Installation and
operating manual
intended for professionals
To be saved for
future consultation
atlantic-comfort.com
IT
PT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WOYA060LCD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlantic WOYA060LCD

Summary of Contents for Atlantic WOYA060LCD

  • Page 1 + Document n° 1578-3 ~ 26/07/2013 Heat pump air/water split 2 services Outdoor unit Hydraulic unit WOYA060LDC 023208 WOYA080LDC 023209 WOYA100LDT Installation and operating manual intended for professionals To be saved for future consultation atlantic-comfort.com...
  • Page 2 capacity for handling refrigerants. Contents Description of the unit ......4 Package .

  • Page 3: Table Of Contents

    Regulation system ....... 32 ....36 .

  • Page 4: Description Of The Unit

    Packing list Heat pump (HP) Outdoor unit Hydraulic unit Model Code Model Code Model Code 522929 023208 700164 522930 522931 700165 023209 522932 700166 Optional equipment Scope of application 2nd circuit kit Regulation extension kit Boiler connection kit Electrical back-ups kit Room thermostat T37 Room thermostat T55 Room thermostat radio T58...
  • Page 5 Designation model alfea extensa duo + Nominal heating performances Heat output 4,52 4,26 4,08 4,02 Electrical characteristics 2530 2875 4025 4255 1500 Hydraulic circuit Various 24 / 190 Heating system operating limits Refrigeration circuit 1100 1100 1400 1800...
  • Page 6 Outside unit, Model extensa duo + 5, 6 & 8 4 holes Ø11 Outside unit, Model extensa duo + 10 Dimensions in mm...
  • Page 7 Hydraulic module Back view Side view Front view Dimensions in mm...
  • Page 8 1 mbar = 10 mmCE = 100 Pa 43907 10000 2490 1000 ° C m /h 1 mbar = 10 mmCE = 100 Pa 32500 30000 27500 25000 22500 20000 17500 15000 12500 10000 7500 5000 2500 °C m /h Ohmic values of the sensors (Hydraulic module) 10000...

  • Page 9: Model Extensa Duo

    Description Model extensa duo + 5 & 6 Model extensa duo + 10 Model extensa duo + 8 Legend : Outside unit components...
  • Page 10 Legend : Sensors : Hydraulic unit components Operating principle Regulation functions Protection functions...
  • Page 11 4 kW Heat produced 20 °C Energy from the air COP 4 1 kW Electrical energy consumed Heat pump operating principle...

  • Page 12: Installation

    2 Installation Regulation installation 2.2.3 Containment of refrigerant circuits and maintenance conditions It’s necessary to ensure correct containment In case of subsequent failure and expertise, the Unpacking and reservations 2.2.1 Receipt 2.2.2 Handling 2.2.4 Accessories provided Accessories provided with the outdoor unit Accessories provided with the hydraulic unit...

  • Page 13: Model Extensa Duo

    Installation position Installation of the outdoor unit 2.4.1 Installation precautions The outdoor unit must only be installed outdoor Model extensa duo + 5, 6 & 8 100 mm or more 300 mm or more Model extensa duo + 10 100 mm or more 250 mm 300 mm...

  • Page 14: Model Extensa Duo

    2.4.2 Outdoor unit positioning 2.4.3 Condensate drain hose trace resistance to avoid it icing up. The trace resistance must heat not only the pipe but also the bottom of the appliance's condensate collection tank. Model extensa duo + 10 only Positioning of the outside unit, draining away the condensate...

  • Page 15: Installing The Hydraulic Unit

    Installing the hydraulic unit 2.5.1 Installation precautions refrigerant connections. Minimum installation clearances around the hydraulic module and distances to the combustible partitions Front view Open the front cover Removing the cover...
  • Page 16 Refrigeration connections This appliance uses refrigerant R410A. 2.6.1 Rules and precautions Minimum necessary tools Manifold Provision on using tools that have been in regard to the guarantee if the above instructions are not observed. Flared connections is forbidden. POE refrigeration oil. Do not use mineral oil.
  • Page 17 2.6.2 Refrigeration connections 2.6.4 Shaping the refrigeration pipes The minimum length of the refrigeration connections is 5 m for correct operation. 2.6.5 2.7, page 19 2.6.3 Take particular care positioning the tube opposite its connector so as not to risk damaging the The refrigeration circuit is very sensitive to dust and humidity: check that the area around the connection is clean and dry before removing the...
  • Page 18 HP model extensa duo + 8 Outdoor unit connections Diameter Minimum length (L) Refrigeration Maximum length* (L) connections Maximum length** (L) Maxi. level difference (D) Male-female adapter (reduction) Hydraulic unit connections page 21 Hydraulic unit Outdoor unit...
  • Page 19 This operation is reserved for installers familiar Method 3 empty Manifold refrigerant other than a HFC. ANNEX 1 building the refrigerant connections. Jeu de manomètres Unfavorables conditions : Manifold (manifold) Basse Haute pression pression Vacuomètre Liaison... liquide Pompe à vide Azote Haute pression...
  • Page 20 First seal test Refrigeration connexion Plug (A) Schrader 3-way valve Manifold. Manifold Hex / Allen key of 4 mm Load orifice Azote Haute Plug (B) Service hose (blue) 10 bars max. pression fitted with valve push-button 30 mn mini "Gas" hose connection Liaison...
  • Page 21 2.7.3 Additional charge 2.7.4 per additional meter 100 g per additional meter 200 g page 18 extraction position. Manifold LED2 LED1 R410A Location of DIP switches and diodes on the hydraulic unit interface card...
  • Page 22 Hydraulic connecting 2.8.1 General Never use monoethylene glycol. In certain installations, the presence of different metals can cause corrosion problems; the formation of metal particles and sludge in the hydraulic circuit is then seen. In this case, it is advisable to use a corrosion inhibitor in the proportions indicated by its manufacturer.
  • Page 23 2.8.2 DHW pipes mounting DHW outlet...
  • Page 24 2.8.3 Rinsing out the installation 2.8.4 Filling and purging the installation manometric height of the installation. 2.8.5 Connecting the Fan convector circuit Legend: Hydraulic Connections module bleeder valve...
  • Page 25 Thermal insulation the straight insulating sleeves the conical insulating sleeves Thermal insulation...
  • Page 26 2.10 Heating circulation pump speed settings 1 mbar = 10 mmCE = 100 Pa Variable pressure radiators m /h 1 mbar = 10 mmCE = 100 Pa Constant pressure m /h Operation signals the HP circulator...
  • Page 27 Pression variable Variable pressure Cut off the electricity supply from the circulation Dégazage Venting pump for 30 seconds in order to release and authorise another start cycle. Pression constate Constante pressure Pump dial...
  • Page 28 2.11 Electrical connections Flexible wires B 2.11.1 Characteristic of the electrical supply page 29 Connecting to regulation cards: 2.11.2 General remarks on electrical connections Connecting to spring terminals: Rigid wires A...
  • Page 29 2.11.3 2.11.4 Cable section and protection rating Heat pump (HP) Cable connection Model Maxi. power absorbed (phase, neutral, earth) 16 A 25 A Heat pump (HP) Electrical back-ups Power supply to the electrical back-ups Cable connection Model Power Nominal current (phase, neutral, earth) 32 A...
  • Page 30 2.11.5 Electrical connections on the outdoor unit side Model extensa duo + 5, 6 & 8 Model extensa duo + 5, 6 & 8 Model extensa duo + 10 Remove the cap (2 screws) Model extensa duo + 10 Remove the front panel (2 screws) Terminal block...
  • Page 31 2.11.6 Electrical connections on the hydraulic unit side hydraulic unit: External faults the heat pump: If the boiler connection option is used, the electric boost option must not be connected. Second heating circuit: 230 V Access to hydraulic model electric box and description...
  • Page 32 Hydraulic unit Outdoor unit 1 2 3 230 V 230 V Connection to terminal block and power relays B2 M B1 3 2 1 M B9 Connections to the heat pump regulator (accessories and options)
  • Page 33 2.12 Outdoor sensor 2.14 Commissioning 2.13 Room thermostat 2.13.1 Installing a room sensor Room thermostat T37 page 35 B2 M In the case of 2 heating circuits, Room thermostat T55 Room thermostat radio T58 2.13.2 Installing a room control unit Room control unit T75 Room control unit radio T78...
  • Page 34 2.15 it in zone 2, Then connect the other room thermostat and 2.16 In the case of 2 heating circuits: page 40 English 42* 44* 48* page 40 Line Function Setting range Setting Basic or display increment setting Room appliance 1 Heating circuit 1 Commonly...

  • Page 36: Regulation System

    3 Regulation system Auto Auto °C...
  • Page 37 Ref. Function Manual start button Auto page 59 page 58 Do not use during normal operation.
  • Page 38 Description of the display Temperature control Xxxxxxxxxxxxxxxxxxxxxxxxxxx 3.3.1 Set to Xxxxxxxxxxxxxxxxxxxxxxxxxxx Xxxxxxxxxxxxxxxxxxxxxxxxxxx User interface display Symbols INFO PROG temperature ambiante temperature ambiante temperature ambiante...
  • Page 39 +4,5 -4,5 & & & & & & & & & Corrective actions in the case of discomfort...

  • Page 40: Parametering The Setting

    Parametering the setting 3.4.2 Setting parameters 3.4.1 General ESC. 01.01...31.12 3.4.3 Line Function Setting range Setting Basic or display increment setting Date and time 00:00... 23:59 01.01... 31.12 1900... 2099 01.01... 31.12 25.03 01.01... 31.12 25.10 User interface English Temporary...
  • Page 41 Line Function Setting range Setting Basic or display increment setting Heating time programme, circuit 1 Mon-Sun 6:00 22:00 --:-- --:-- --:-- --:-- Heating time programme, circuit 2 Mon-Sun 6:00 22:00 --:-- --:-- --:-- --:-- Mon-Sun 00:00 05:00 14:30 17:00 --:-- --:--...
  • Page 42 Line Function Setting range Setting Basic or display increment setting Mon-Sun 8:00 20:00 --:-- --:-- --:-- --:-- Holidays, heating circuit 1 Period 1 01.01... 31.12 01.01... 31.12 Frost protection Holidays, heating circuit 2 Period 1 01.01... 31.12 01.01... 31.12 Frost protection Heating adjustment, circuit 1 Important Note :...
  • Page 43 Line Function Setting range Setting Basic or display increment setting 180 min 30 min 240 s 0... 32 0... 32 Reduced standards and instructions manufacturer performance of this function installation correctly This function can be stopped the adjustment on "Stop". Diagram of the concrete slab drying programmes...
  • Page 44 Line Function Setting range Setting Basic or display increment setting Cooling circuit 1 Time program 5 8... 100 24 h 80 % 240 s Control 60 min Heating adjustment, Circuit 2 1010 1012 1014 1016 1020 1021 1030 1040...
  • Page 45 Line Function Setting range Setting Basic or display increment setting 1041 Important Note : 1050 50 % 1060 1010 1060 1080 1090 180 min 1091 30 min 1100 1101 1130 1134 240 s 1150 1151 1156 0... 32 1157 0... 32 1200...
  • Page 46 Line Function Setting range Setting Basic or display increment setting 1610 1612 1620 Programme Heating circuit time programme: Off-peak tariff* : 1640 1641 1642 Sunday 2056 2803 240s 2843 8 min 2844 2862 5 min 2873 240 s 2882 2884 2886 2916 2920...
  • Page 47 Line Function Setting range Setting Basic or display increment setting 3692 Substitute 3700 3701 3705 20 min 3720 3723 30 min 5024 5030 90 min 5055 5057 Summer 5061 Release of 5093 5700 5710 5711 5715 5731 Diverting valve 5806 2-stage complementary 5981...
  • Page 48 Line Function Setting range Setting Basic or display increment setting 6420 1... 56 6421 LPB system 6600 Error 6711 6800 6802 6804 6806 6808 6810 6812 6814 6816 6818 7070 7071 0... 240 7073 0... 12 7141 7142 Manual 7150 7700...
  • Page 49 Line Function Setting range Setting Basic or display increment setting 7710 7712 7716 7719 7722 7723 7724 7725 7804 7805 7806 7807 7808 7809 7830 7832 7847 Open 7911 7912 7913 7973 7974 7975 7976 7977 7978 7996 Open State 8000 8001 8003...
  • Page 50 Line Function Setting range Setting Basic or display increment setting 8410 8412 8413 8414 8425 8450 8454 8455 0... 65535 8456 8457 0... 65535 8499 8505 8510 8511 8512 8513 8515 Diagnostics consumers 8700 8701 8702 8703 8704 8730 8731 8732 8740 8743...
  • Page 51 Line Function Setting range Setting Basic or display increment setting 8760 8770 8773 8820 8821 8830 8840 8841 0... 199999 8842 8843 0... 65535 8900 8950 8957 8980 8981 9031 9032 9033 9034 9035 9050 9051 9052 9053 9054 9055 9071 9072 9073...

  • Page 52: Overall Hydraulic Layout

    4 Overall hydraulic layout...
  • Page 54 Reactor Reactor WOYA 060 LDC Compressor Electronic expansion valve Compressor CN73 2 CN72 Temperature sensors Temperature sensors Evaporator Temperature sensors Pressure CN39 CN71 Sensor Discharge Temperature sensors Regulation board Outdoor Temperature sensors CN70 CN800 Ventilator Electronic Fuse 250V 20A CN401 expansion valve 4-way valve CN30...
  • Page 55 WOYA080LDC HP pressure sensor CN90 Compressor CN64 Regulation board Temperature sensors Expansion valve Temperature sensors CN72 CN42 CN40 CN200 CN400 1 2 3 4 5 1 2 3 4 5 6 7 8 9 1 2 3 4 Outside CN62 1 2 3 4 5 6 7 8 9 1 2 3 4 5 1 2 3 4...
  • Page 56 WOYA100 LDT Expansion valve Temperature sensors CN72 HP pressure sensor CN90 Regulation board Compressor Temperature sensors CN64 Outdoor Temperature sensors CN42 CN40 CN200 CN400 CN62 1 2 3 4 1 2 3 4 Evaporator Temperature sensors CN65 Discharge Temperature sensors CN63 1 2 3 4 5 6 7 8 9 1 2 3 4 5...
  • Page 57 Electrical wiring, Hydraulic module (Except installer's connections)

  • Page 58: Troubleshooting

    6 Troubleshooting Faults displayed on the hydraulic unit Hydraulic unit Heat pump operation Error number Error description Error location despite the error page 59 Hydraulic unit Diodes display Error contents LED 2 (green)
  • Page 59 Information display Designation Line page 58 8006 8022 8003 8011 8000 8001 8004 8700 8740 8743 8770 8773 8830 8410 8412 8900...

  • Page 60: Maintenance Of The Installation

    7 Maintenance of the installation Hydraulic checks it is essential that you look for any leaks. 7.2.1 7.2.2 Descaling Emptying the hydraulic unit and/or Domestic hot water tank Checking the outdoor unit Checking the refrigeration circuit : Electrical checks...

  • Page 61: Maintenance

    8 Maintenance Emptying the hydraulic unit Distribution valve ACI check Fitting the distribution valve Check ACI voltage Connecting U = + 0 + 6,5 V ACI connecting: on the tank mass. on the electrode connector. ACI check 9 Instructions for the user...

  • Page 62: Quick-Start Procedure

    10 Quick-start procedure 10.1 Start-up check-list 10.1.1 Before starting-up Sight checks Hydraulic checks Refrigeration connections and checks Electrical checks...
  • Page 63 10.1.2 Starting-up Quick start-up Outdoor unit checks Hydraulic unit checks Regulation system...
  • Page 64 10.2 Settings sheet Setting Description Set to. Menus Setting Description Set to. Menus Boiler backup Preliminary settings language 3700 operator section 3705 hour / minutes time & date Miscellaneous day / month time & date 6420 input H33 function year time &...
  • Page 65 10.3 Start-up data sheet Site Installer Outdoor unit Hydraulic unit Checks Operating voltage & current on outdoor unit Reading in HEATING operating mode Hydraulic system of hydraulic unit Options & accessories : Control settings...
  • Page 68 Date of installation : www. atlantic-comfort.com www.atlantic.fr Société Industrielle de Chauffage SATC - BP 64 - 59660 MERVILLE - FRANCE Contact of your heating technician or your after-sales service.
