alféa extensa +
Heat pump air/water
split 1 service

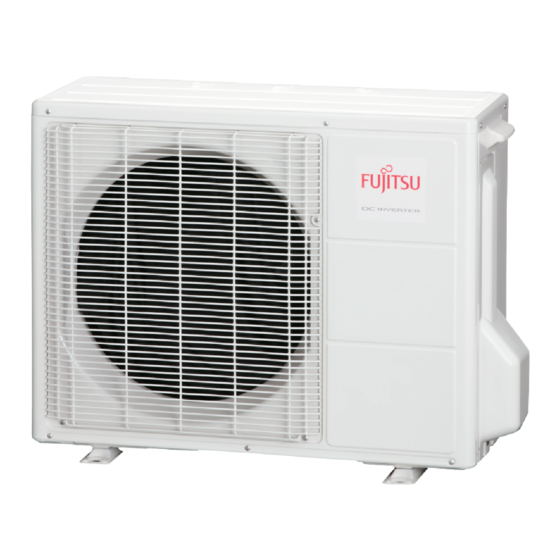

Outdoor unit
WOYA 060 LFCA
WOYA 080 LFCA
WOYA 100 LFTA
WOYG112LHT
WOYG112LCTA
WOYG140LCTA
Hydraulic unit
023650
023651
023652
Document n° 1734-10- ~ 19/05/2017
FR
NL
DE
EN
ES
PT
PL
PT
Installation and
operating manual
intended for professionals
To be saved for
future consultation
atlantic-comfort.com
