urmet domus 1717/31 User Manual
  1. Manuals
  2. Brands
  3. urmet domus Manuals
  4. Monitor
  5. IperVoice 1717/31
  6. User manual

urmet domus 1717/31 User Manual

Ip 7 inch touchscreen monitor
Hide thumbs Also See for 1717/31:
Table of Contents

Advertisement

Quick Links

See also: Complete User's Manual , Quick User Manual
Mod.
1717
DS1717-020
LBT20144

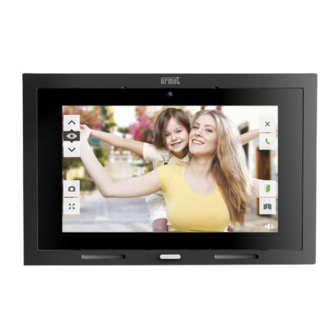

IP 7" TOUCHSCREEN MONITOR
Ref. 1717/31 (White)
Ref. 1717/33 (Black)

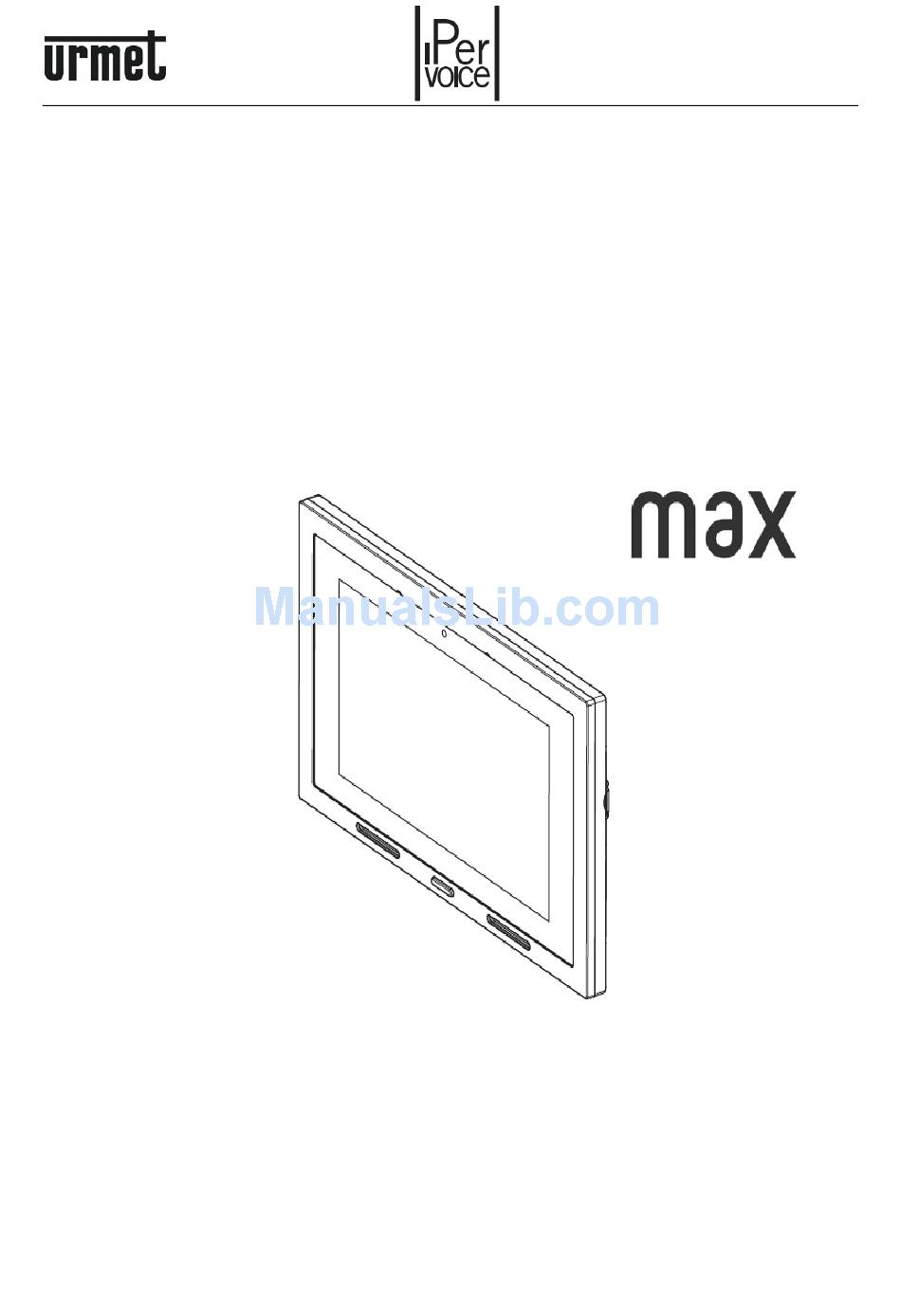

COMPLETE USER MANUAL
