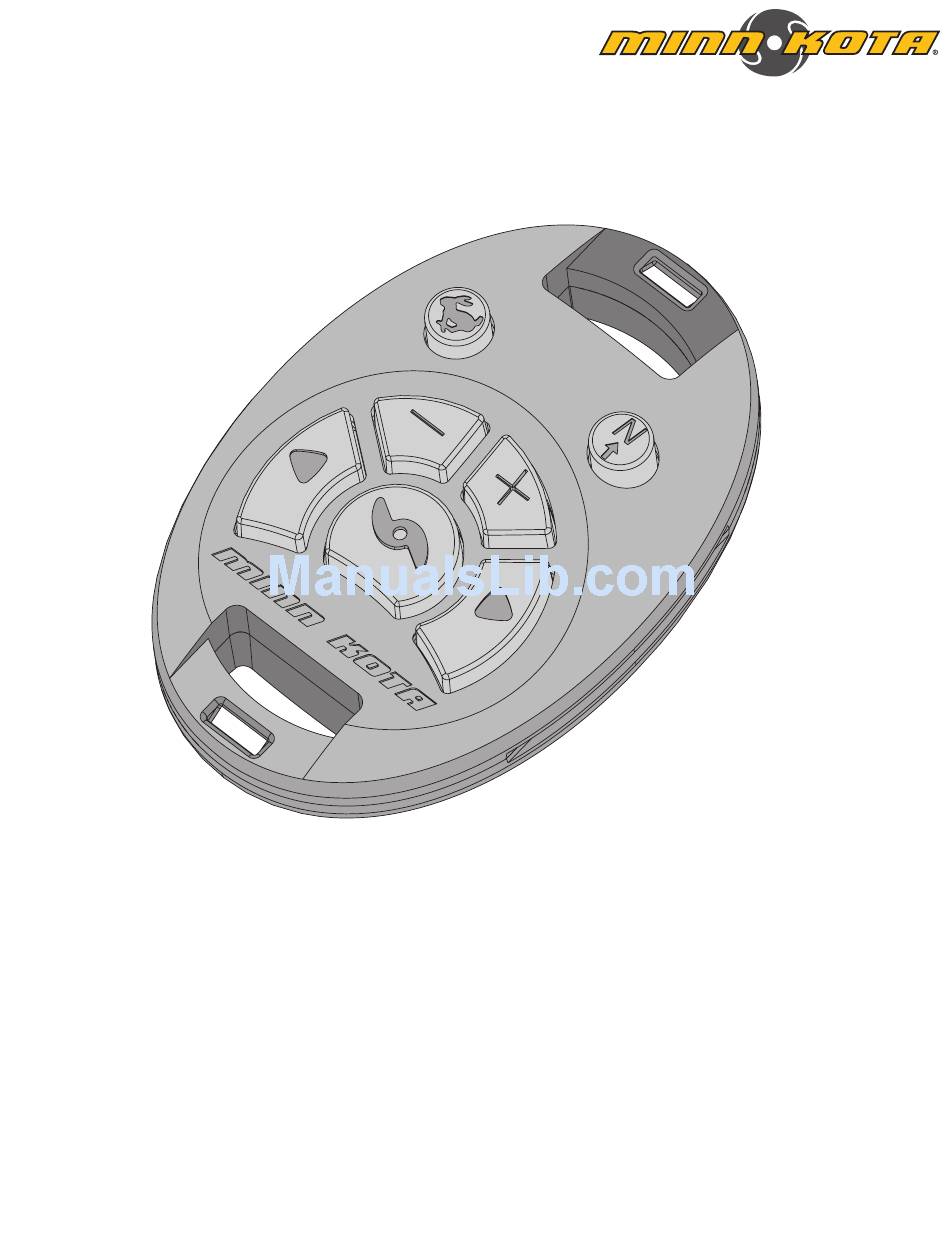

COPILOT ACCESSORY
FOR TERROVA
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1866160 and is the answer not in the manual?

Questions and answers

Related Manuals for MINN KOTA 1866160

Summary of Contents for MINN KOTA 1866160

  • Page 1 COPILOT ACCESSORY FOR TERROVA OWNER'S MANUAL...
  • Page 2 Countless hours of research and testing provide you the advantages of a Minn Kota product that can truly take you “Anywhere. Anytime. “ We don’t believe in shortcuts. We are Minn Kota.
  • Page 3 FEATURES High Speed Bypass AutoPilot ON/OFF Decrease Speed Increase Speed Steer Right Steer Left CoPilot Remote Prop ON/OFF Power Connection Antenna Learn Button CoPilot Receiver NOTE: Specifications subject to change without notice. This diagram is for reference only and may differ from your actual motor.

  • Page 4: Installation

    This remote is compatible with Terrova and Legacy Terrova motors. Installation instructions vary depending on the year your motor was manufactured. Before installing the CoPilot Receiver, determine which year your motor was manufactured. Minn Kota recommends looking at the trolling motor serial number to determine the year of manufacture. Review the "INTRODUCTION" of your trolling motor manual to determine the location of your serial number.
  • Page 5 INSTALLATION INSTALLATION Installing the CoPilot Receiver for Motors Manufactured 2016 or Prior NOTE: Please verify the year your motor was manufactured before beginning. See page 6 for details. a. Make sure that the Power Cables from the battery are disconnected, or that the breaker, if equipped, is "off".
  • Page 6 INSTALLATION ITEM(S) NEEDED #4 x 1 #B x 1 e. With the CoPilot Cover removed, take the CoPilot Screw Peg Right Sideplate Receiver (Item #B) and position it in the space below where the CoPilot Cover was attached. Mounting Hole Position the CoPilot Receiver so that the Learn Button is positioned towards the upper left of the sideplate.
  • Page 7 INSTALLATION ITEM(S) NEEDED #3 x 3 #1 x 1 k. Take the new CoPilot Cover (Item #1) and place it CoPilot Receiver over the CoPilot Reveiver that was just installed. Power Antenna Connection Attach the CoPilot Cover to the Right Sideplate with the three 8-18 X 1/2 Screws (Item #3) using a #2 Phillips Screwdriver.
  • Page 8 INSTALLATION p. Using a #2 Phillips Screwdriver, replace the two Screws to secure the Right Sideplate to the Mount. Sideplate Screw Installing the CoPilot Receiver for Motors Manufactured 2017 or After NOTE: Please verify the year your motor was manufactured before beginning. See page 6 for details. a.
  • Page 9 INSTALLATION ITEM(S) NEEDED #B x 1 d. Turn the Right Sideplate over. Right Sideplate e. Take the CoPilot Receiver (Item #B) and position it so that the Learn button is towards the bottom right of the sideplate. The Antenna and CoPilot Power Connection should sit to the left and exit the board from the Antenna surface that sits towards the Right Sideplate.
  • Page 10 INSTALLATION With the Right Sideplate laying flat, and the Power Connection Right Sideplate CoPilot Receiver that was just installed facing CoPilot Receiver upwards, route the yellow wire Antenna through Antenna the pegs and grooves on the Right Sideplate. Follow the grooves in each of the pegs. Route the CoPilot Power Connection through the bottom groove in the Right Sideplate.
  • Page 11 COPILOT CONTROLLING THE MOTOR WITH COPILOT Review the complete CoPilot section of this manual to become familiar with this feature. High Speed Bypass Decrease Speed AutoPilot ON/OFF Steer Left Increase Speed Prop ON/OFF Steer Right Prop ON/OFF This button is located in the middle of the remote. It turns the propeller on or off. Press the button once to turn the propeller ON; press button a second time to turn it OFF.
  • Page 12 COPILOT COPILOT GENERAL OPERATION Operating with the Remote and Foot Pedal • The CoPilot and foot pedal can be used for motor control simultaneously. • The foot pedal and CoPilot remote operate on a first-in-line priority basis. If a button is pressed and held down on the foot pedal and a button with the same function is then pressed on the remote, the foot pedal will have priority.

  • Page 13: Audio Modes

    COPILOT AUDIO MODES There are three receiver Audio Modes available. The unit is factory set to Audio Mode 2. To switch from one audio mode to another, simultaneously press and hold the increase and decrease speed buttons for one second. The receiver will respond with 1, 2 or 3 audible beeps indicating the corresponding receiver audio mode change.

  • Page 14: Adding/Removing Remotes

    COPILOT ADDING/REMOVING REMOTES The CoPilot remote came from the factory already "Learned" by the CoPilot receiver. Any additional remotes must be "Learned" by the receiver. The receiver stores all "Learned" information even when the motor is disconnected from a power source. To "Learn"...

  • Page 15: Replacing The Battery

    COPILOT b. Press and hold the Learn Button and power up the CoPilot receiver by reconnecting the Power Cables, or by making sure that the breaker, if equipped, is "on". c. Continue to hold the Learn Button down for 10 seconds.
  • Page 16 COPILOT Reassemble the remote. Begin by removing the board from the front of the remote case. This is Remote the same board that holds the battery. Leave the Case Front Keypad in place on the front of the remote. g. Note that the alignment peg in the back of remote case must line up with the corresponding alignment hole in the circuit board.

  • Page 17: Environmental Compliance Statement

    Minn Kota motors are not subject to the disposal regulations EAG-VO (electric devices directive) that implements the WEEE directive. Nevertheless never dispose of your Minn Kota motor in a garbage bin but at the proper place of collection of your local town council.

  • Page 18: Fcc Compliance

    COMPLIANCE STATEMENTS FCC COMPLIANCE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. 2. This device must accept any interference that may be received, including interference that may cause undesired operation. Changes or modifi...

  • Page 19: Service And Maintenance

    SERVICE & maIntEnanCE TROUBLESHOOTING Cause Effect Solution The battery is discharged. Replace battery. Receiver may not have "learned" the remote. Remote needs to be learned. See the Adding/ Removing Remotes section of this manual to learn the remote. With the foot pedal connected, the MOM-CON The foot pedal switch must be placed in Momentary Remote is not transmitting.

  • Page 20: Parts Diagram & Parts List

    PARTS DIAGRAM & PARTS LIST COPILOT ACCESSORY TERROVA CoPilot Parts Diagram CoPilot Parts List Assembly Part # Description Quantity TRANSMITTER ASY, T RRV CPLT 2994095 2374197 PCB ASY COPLT REC. T ERROVA 2994865 BAG ASSY PD PRO CO-PILOT Item Part # Description Quantity 2370220...

  • Page 21: Recommended Accessories
