new

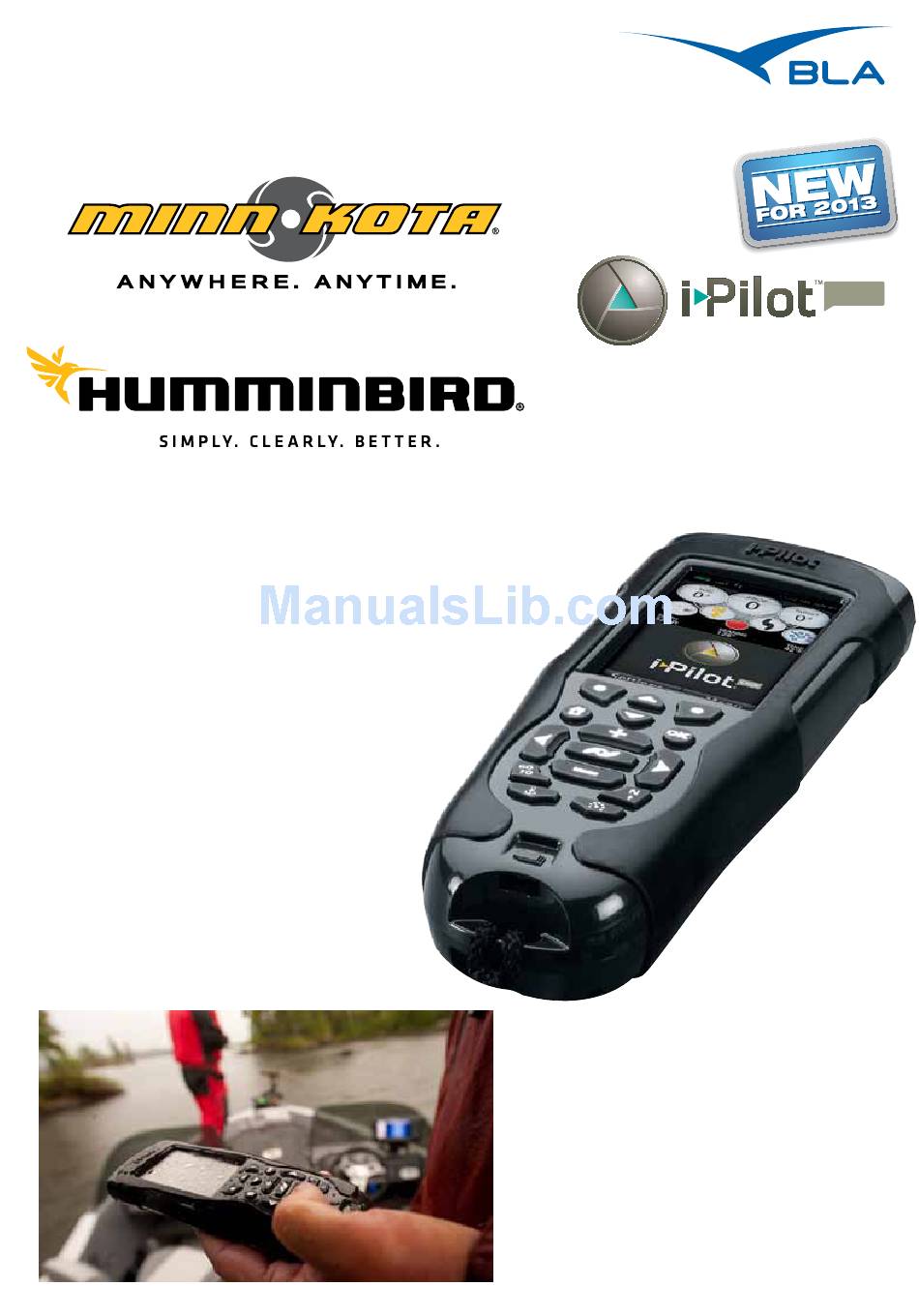

Product Release
• New i-Pilot
platform that interacts with Ethernet equipped Humminbird
TM
including 700 HD, 800, 900 & 1100 series.
• Compatible with PowerDrive
• Has all the same functions as current i-Pilot
• No cross compatibility with existing i-Pilot
existing i-Pilot
system.
TM
i-Pilot
Link includes:
TM

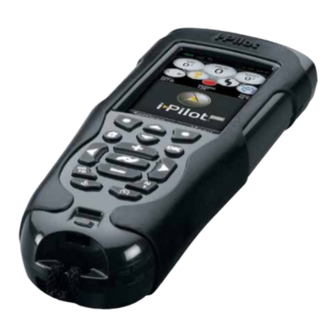

– Control Head
– Remote Control
– Charging Cable with AC adapter
– User Manual
– Quick Reference Guide
– Lanyard
Add-on Accessories (sold separately):
– Remote Holding Cradle (with Belt Clip)
– Charging Cable
V2, Riptide
ST, and Riptide
TM
®
, plus additional features
TM
however the new kit can replace the
TM
units
®
SP motors
®
boatinglifestyleadventure
LINK
Advertisement
Table of Contents
Related Manuals for MINN KOTA i-Pilot Link
Summary of Contents for MINN KOTA i-Pilot Link
- Page 1 Product Release boatinglifestyleadventure LINK • New i-Pilot platform that interacts with Ethernet equipped Humminbird units ® including 700 HD, 800, 900 & 1100 series. • Compatible with PowerDrive V2, Riptide ST, and Riptide SP motors ® ® • Has all the same functions as current i-Pilot , plus additional features • No cross compatibility with existing i-Pilot however the new kit can replace the existing i-Pilot system. i-Pilot Link includes: – Control Head – Remote Control – Charging Cable with AC adapter – User Manual – Quick Reference Guide – Lanyard Add-on Accessories (sold separately): – Remote Holding Cradle (with Belt Clip) – Charging Cable...
- Page 2 LINK Spot-Lock • Functionality is similar to current i-Pilot – spot-Lock can be engaged from the i-Pilot remote or from the Humminbird unit ® – spot-Lock location shows up on the Humminbird screen ® – spot-Lock locations can be stored on the Humminbird and on the i-Pilot ® • Spot-Lock storage on the Humminbird is limited to the amount of waypoint storage ® space available, typically up to 2500 • Spot-Lock storage on the i-Pilot controller is limited to 16 Humminbird displaying Spot Lock location Remote displaying Remote while ® active Spot-Lock recording an iTrack iTrack • i Track is a new term designating an i-Pilot Link compatible track • i Tracks are displayed on the Humminbird along with the current track...
- Page 3 LINK i-Pilot Link – AutoPilot • A utoPilot has the same functionality as current i-Pilot – GPS Advanced AutoPilot and Legacy compass AutoPilot are both available – Advanced AP or Compass AP is user selectable • AutoPilot can be enabled from the remote or from the Humminbird ® – On the HB screen, the AP bearing can be set by motor direction or by cursor i-Pilot Link – Go To Waypoint • Any stored Waypoint on the Humminbird can be used as a Go To ® location – From the Humminbird ® • Cursor over a stored Waypoint and press Go To button • Select from a list – From i-Pilot remote • Press Go To and a list of all stored Waypoints within range will appear as a list on the screen...
- Page 4 LINK i-Pilot Link – Go To Spot-Lock • Selection function is the same as Go To Waypoint • W hen navigating to selected Spot-Lock location – No user speed control • S peed automatically ramps up until it reaches arrival or hits top speed • i -Pilot automatically goes into Spot-Lock on arrival; No option Remote selecting Spot-Lock Fishfinder selecting Spot-Lock Fishfinder going to Spot-lock Remote navigating Start of iTrack i-Pilot Link –...
- Page 5 RT 80/ST W/I-PILOT/LINK NO FT PD 54” 24V 601576 RT 80/ST W/I-PILOT/LINK NO FT PD 60” 24V i-PILOT LINK KITS AND ACCESSORIES 602914 I-PILOT LINK SYSTEM KIT T/S POWERDRVE V2 602924 I-PILOT LINK SYSTEM KIT T/S RIPTIDE ST 602934 I-PILOT LINK SYSTEM KIT T/S RIPTIDE SP 602944...
