MINN KOTA i-PILOT LINK Quick Reference Manual

COMPATIBLE WITH ALL BLUETOOTH
REMOTE
Home Screen Buttons
Legacy AutoPilot
AutoPilot button is used to engage
and disengage Legacy AutoPilot.
Advanced AutoPilot
AutoPilot button is used to engage
and disengage Advanced AutoPilot.
Record
- The Record button is used
to start and stop recording an iTrack.
HSB
- Select the HSB (High Speed
Bypass) button to engage High
Speed Bypass. High Speed Bypass
automatically sets the Prop speed
to 10. Double press to engage.
Single press to disengage.
Lock Keys
- Select the Lock
button to lock the buttons and
touch screen. Pressing and holding
the Screen Navigation
also locks and unlocks the remote.
Cruise Control
Control button to enable or disable
Cruise Control. Once Cruise Control
is enabled, pressing the Speed Up
or Speed Down
will change the Target Speed rather
than the Prop Speed.
Mark Waypoint
a Waypoint.
Settings
- Press the Settings
button to open the Settings menu
and adjust settings within the i-Pilot
Link system.
Options
- Press the Options button
to open the Options menu and
adjust options within the i-Pilot Link
system.
Go To Spot-Lock
To Spot-Lock button is used to
open a menu used to navigate to a
Spot-Lock location. The i-Pilot Link
system will only bring up Spot-
Locks within a quarter mile range.
Go To iTrack
- The Go To iTrack
button is used to open a menu
used to navigate to an iTrack. The
i-Pilot Link system will only bring up
iTracks within a quarter mile range.
Go To Waypoint
Waypoint button is used to open
a menu used to navigate to a
Waypoint location. The i-Pilot Link
system will only bring up Waypoints
within a quarter mile range.
TEMP 72 °F
Ulterra
- The Ulterra button is
t
used to access functions specifi c to
controlling the Ulterra.
NOTE: The information displayed in the
Content Area changes based on menu
TEMP 65 °F
selections. It may display Home Screen
Buttons, Active Bands, Control Screens and
other menus.
©2016 Johnson Outdoors Marine Electronics, Inc.
All manuals and user guides at all-guides.com
® ENABLED i-PILOT® LINK
Screen
- The
Navigation
Steer Left
Prop
- The
On/Off
Spot-Lock
Speed
Down
Dashboard
Info Boxes
button
- Press the Cruise
buttons Control Buttons
- Press to mark
- The Go
PROP
TEMP 72 °F BRG 359°
Info Boxes
- The Go To
TEMP 72 °F BRG 359°
BRG 359° DPTH
TEMP 65 °F HDG 255°
TEMP 65 °F HDG 255°
TEMP 72 °F
HDG 255° DPTH
TEMP 65 °F
t Only available with Ulterra.
TM SYSTEMS
Home
- Press to bring up the Home
Screen Buttons.
Screen Navigation
- Press to
navigate the menu without touching
the screen. Press and hold to lock
and unlock the remote.
Ok - Press to accept menu selections.
Press to power remote on. Press
and hold for 3 seconds to power
remote off .
Speed Up & Speed Down
Press to increase or decrease motor
speed.
Steer Left & Steer Right
Press to steer the motor to the left
or to the right.
Prop On/Off
- Press to turn the
PROP
Prop on and off .
Spot-Lock
- Press to enable and
disable Spot-Lock.
DPTH 1 ft
DPTH 1 ft
Bearing
- Bearing is the direction
from the boat's current location
to the target destination during
navigation.
1 ft
DPTH 5 ft
Heading
- Heading is the direction
that the motor is pointing.
DPTH 5 ft
BRG 359°
Temperature
- The current
water temperature based on
communication with the Humminbird.
Depth 5 ft
- The current water depth
based on communication with the
Humminbird.
HDG 255°
n Only available with Ultrex.
i-PILOT
QUICK REFERENCE GUIDE

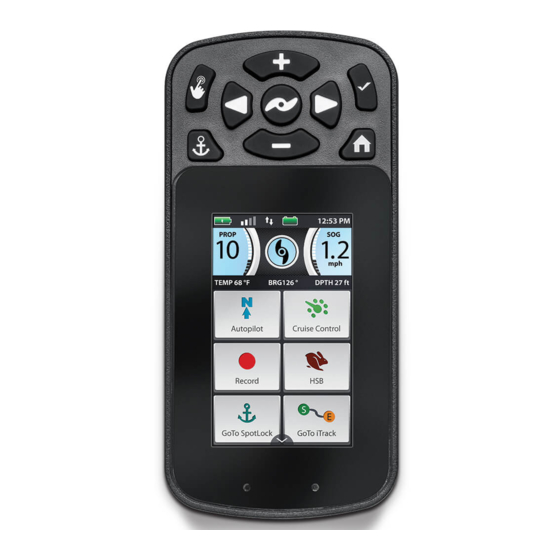

Remote
Speed Up
Battery
GPS Signal
Ok Strength
Steer Right
Header
Home
Humminbird Connection
Displays white arrows to show
when the i-Pilot Link controller
is communicating with the
Header
Humminbird. Grey arrows indicate
that there is no communication.
Display
Motor Battery
Screen
motor battery level when prop is
Content disengaged.
Area
Time
Remote Battery
battery level of the remote.
GPS Signal Strength
Displays the level of GPS signal
strength. If no bars appear, or if the
bars are fl ashing, the system has
not yet acquired a GPS fi x.
PROP
High Speed
Prop
Bypass
Speed
PROP
Dashboard
-
SOG
Speed Over Ground
the current speed over ground.
-
High Speed Bypass
when High Speed Bypass is engaged.
PROP
Prop On/Off
SOG
the Prop is enabled. Rotates when
the Prop is on and the Prop Speed
is greater than zero. Blinks when
a mode of navigation is used that
requires the prop to be enabled.
Cruise Control
Cruise Control is engaged along
with the Target Speed.
PROP
Prop Speed
Prop Speed. Can be adjusted in 1/2
speed increments between 0 and 10.
TEMP 72 °F
TEMP 72 °F
DPTH 1 ft
Temperature
TEMP 65 °F
TEMP 65 °F
Heading
DPTH 5 ft
® LINK ™
Humminbird
Time
Connection
Motor
Battery
- Displays
t n
- Displays the current time.
- Displays the
-
SOG
mph
1.5
Prop Cruise
Speed
On/Off Control
Over Ground
- Displays
- Displays
SOG
- Displays when
- Displays when
- Displays the current
BRG 359° DPTH 1 ft
BRG 359° DPTH 1 ft
Bearing
HDG 255° DPTH 5 ft
HDG 255° DPTH 5 ft
Depth
