Related Manuals for Pullman PULL10LD
Summary of Contents for Pullman PULL10LD

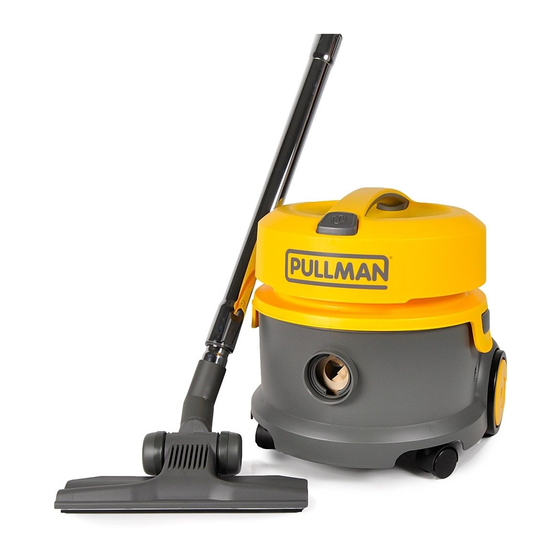

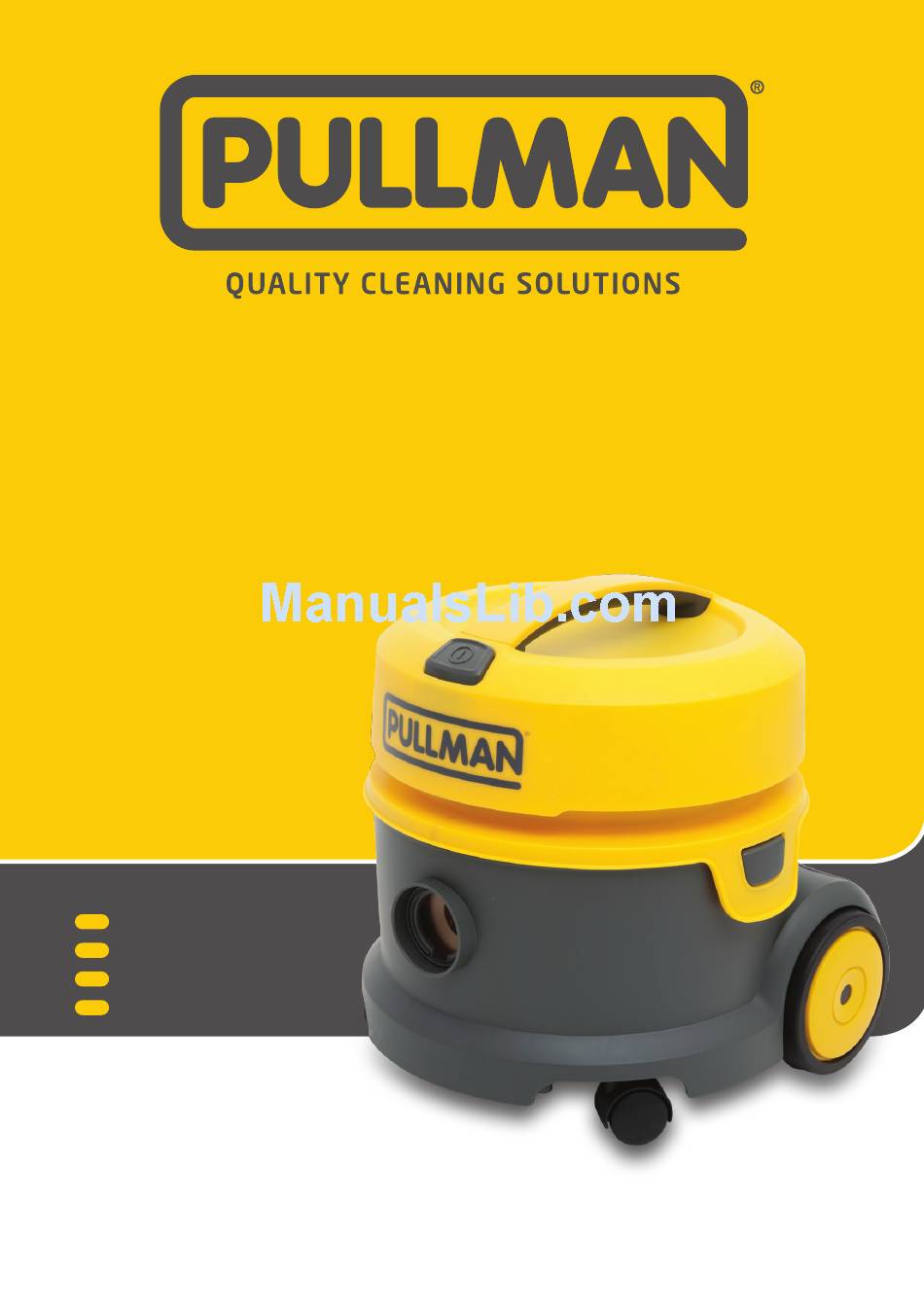

- Page 1 IDEAL FOR: Schools Offices Motels & Hotels Restaurants & Cafes 10L DRY VACUUM PULL10LD 1200W...
- Page 2 IMPORTANT Always switch off the cleaner and remove the plug from the electricity power supply before cleaning your appliance, when not in use or attempting any maintenance task. The cleaner must only be connected to an AC power supply at the voltage shown on the rating label. This cleaner should only be used for its intended purpose as described in this instruction manual.
-
Page 3: Before You Begin
First clear the blocked substance before attempting to start the vacuum cleaner again. This machine is equipped with a cord and plug. In the event that either of these parts get damaged, it must be repaired by a qualified technician. PULLMAN 10L DRY PULL10LD... -
Page 4: Know Your Product
4. Hose Assembly with Handle 5. On/Off Switch 6. Connection Latches Canister 8. Castor Wheel 9. Rear Wheel 10. 2pc Tubes 11. Gulper Floor Tool 12. Crevice Tool 13. Dusting Brush Technical Information Model: PULL10LD 240V ~ 50HZ PMAX: 1200W PNOM: 1100W... - Page 5 ASSEMBLY (WITH HOSE) 1. Connect the handle to the first tube. 2. Connect the first tube to the second tube. 3. Connect the tube to the desired cleaning accessory. PULLMAN 10L DRY PULL10LD...
- Page 6 ASSEMBLY (WITH HOSE) 4. Insert the hose end into the hose inlet. Turn clockwise to lock the hose in place. 5. Once assembled as per diagram, start the cleaner by pressing the On/Off switch.
- Page 7 Note: If the bleed valve remains open, turn off the vacuum cleaner, remove the mains plug, and check the hose and accessories for blockages, check to make sure that the bag is not full (if found replace with a new one). PULLMAN 10L DRY PULL10LD...
- Page 8 ACCESSORIES The gulper floor tool is ideal for cleaning on carpets and hard floors. Fitting the Dusting Brush and Crevice Tool To fit the accessories to the tube, gently insert the tube into the top of the dusting brush or crevice tool. Dusting Brush –...
-
Page 9: Operation
MACHINE IS TURNED OFF AND THE POWER CABLE IS DISCONNECTED FROM THE MAINS POWER SUPPLY. Dust Bag Cleaning and Replacing 1. Lift the latches to release and open the top cover, take out the dust bag. PULLMAN 10L DRY PULL10LD... - Page 10 MAINTENANCE (CONTINUED) 2. If dust bag is full, replace with a new dust bag. 3. Position dust bag back into cleaner and make sure the opening of the bag aligns with the hose inlet. NOTE: THE SEAL RING AROUND DUST BAG OPENING SHOULD COVER THE HOSE INLET CONNECTOR INSIDE THE CANISTER.
-
Page 11: Specifications
For customer service or product enquiries please contact AU 1800 815 270 NZ 0800 282 288 PRODUCT NUMBER PRODUCT DESCRIPTION 31220504 Hose Assembly 31154849 Crevice Tool 32200955 HEPA Filter 32440355 Dust Bag 5pk 33500414 Castor Wheel 33500415 Rear Wheel Assembly Set 33400189 Cloth Dust Bag 31300751 2pc Tubes PULLMAN 10L DRY PULL10LD... - Page 12 Conditions of warranty Your Pullman cleaner has a replace the cleaner, it will do so at its own cost. one year parts and labour Electrical Home-Aids Pty Ltd is unable to accept warranty against product responsibility under this warranty for any repair...
