Summary of Contents for Pullman WD60LSSO

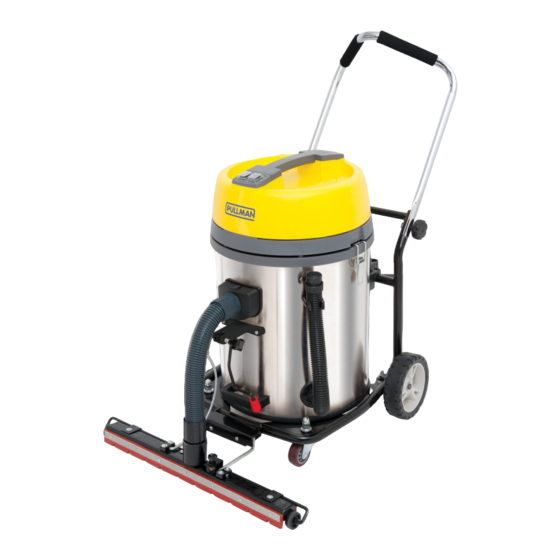

- Page 1 IDEAL FOR: Warehouses Gymnasiums & Schools Airports Community Centres 60L WET & DRY VACUUM WITH OUTRIGGER WD60LSSO 2300W TWIN MOTORS...
- Page 2 IMPORTANT Always switch off the cleaner and remove the plug from the mains power supply before cleaning your appliance, when not in use or attempting any maintenance task. The cleaner must only be connected to an AC power supply at the voltage shown on the rating label. This cleaner should only be used for its intended purpose as described in this instruction manual.
-
Page 3: Before You Begin
This machine is equipped with a cable restraint, cord and plug. In the event that either of these parts get damaged, it must be repaired by a qualified technician. PULLMAN 60L WET & DRY VACUUM WITH OUTRIGGER WD60LSSO... -
Page 4: Know Your Product
11. Drain Pipe 17. Dusting Brush 5. Handle 12. Power Cord & Cable 18. Extension Cable (10m) Restraint (not shown) 6. Connection Latches 13. Hose Assembly Rear Wheel Technical Information Model: WD60LSSO 240V ~ 50HZ 2300W MAX 2000W NOM Noise Level: 82dBa... - Page 5 Pin e. Trolley b. Washer Washer c. Wheel g. Clamp d. Washer Handrail tube Star grip knob (M8) Bottom frame Rear wheel Small castor wheel PULLMAN 60L WET & DRY VACUUM WITH OUTRIGGER WD60LSSO...
-
Page 6: Rear Wheels
ASSEMBLY (CONTINUED) Rear Wheels 1. Assemble the rear wheels in accordance with the diagram above. Follow steps “a” through to “g”. Small Castor Wheels 1. Insert small castor wheels into the holes located at the base of the trolley frame. 2. - Page 7 Wire Rope Set Outrigger Tool 3. Place the wire rope set onto the bending axle on the machine. Secure with star grip knob (M6). Wire Rope Set PULLMAN 60L WET & DRY VACUUM WITH OUTRIGGER WD60LSSO...
- Page 8 ASSEMBLY (CONTINUED) Assembling the Hose and other Floor Tools Please follow the below instructions if using this machine with the hose assembly and other floor tools. 1. Connect the 2-piece metal tube together. 2. Connect the handle on the hose to the tube. 3.
-
Page 9: Cable Restraint
IMPORTANT! When turning the On/Off Switches please do so one at a time. Both switches are protected with a water-proof cover. If the waterproof cover has been broken, please contact your nearest Pullman agent for repair/service. PULLMAN 60L WET & DRY VACUUM WITH OUTRIGGER WD60LSSO... - Page 10 ACCESSORIES Outrigger The Outrigger Tool is ideal for use on hard floors (i.e. concrete, laminate, tiles, timber, marble etc.). This tool can be used for both wet & dry pick up. Outrigger Assembly The combination floor tool is ideal for cleaning on carpets and hard floors.
-
Page 11: Operation
3. Wipe the machine inside and out from time to time, using only luke warm water. Before use always examine the power cable for cuts and/or damage. 4. Wet pick up accessories should be washed periodically. PULLMAN 60L WET & DRY VACUUM WITH OUTRIGGER WD60LSSO... -
Page 12: Maintenance
MAINTENANCE ATTENTION: DISCONNECT FROM MAINS POWER SUPPLY BEFORE DOING ANY MAINTENANCE WORK. IF PROPER CARE IS TAKEN TO MAINTAIN YOUR CLEANER, MOTOR MAINTENANCE IS UNNECESSARY. HOWEVER WE RECOMMEND THAT YOUR CLEANER IS SERVICED ONCE A YEAR. 1. Release the locking latches to remove the canister lid. - Page 13 IS UNNECESSARY. HOWEVER WE RECOMMEND THAT YOUR CLEANER IS SERVICED ONCE A YEAR. 5. Dry by airing for at least 24 hours. 24hr 6. Re-fit the HEPA filter and cloth bag into the machine. PULLMAN 60L WET & DRY VACUUM WITH OUTRIGGER WD60LSSO...
-
Page 14: Cleaning The Tank
MAINTENANCE (CONTINUED) Cleaning the Tank 1. Release the locking clip to unlock the barrel from the base. 2. Remove the cloth bag and clean thoroughly. 3. Empty the tank and clean the inside of it thoroughly, use luke warm water only. 4. -
Page 15: Troubleshooting
Hard Floor Tool 40mm 31220455 Hose Assembly 40mm 31300563 2-Piece Chrome Tube 40mm 31130091 Dusting Brush 40mm 31120106 Crevice Tool 40mm 32200829 HEPA Filter 32440319 Cloth Filter Bag 33151779 Pipe, drain assembly PULLMAN 60L WET & DRY VACUUM WITH OUTRIGGER WD60LSSO... -
Page 16: Conditions Of Warranty
Conditions of warranty Your Pullman cleaner has a decide to repair or replace the cleaner, it will do so one year parts and labour at its own cost. warranty against product International Cleaning Solutions Pty Ltd is unable defects and failures when...
