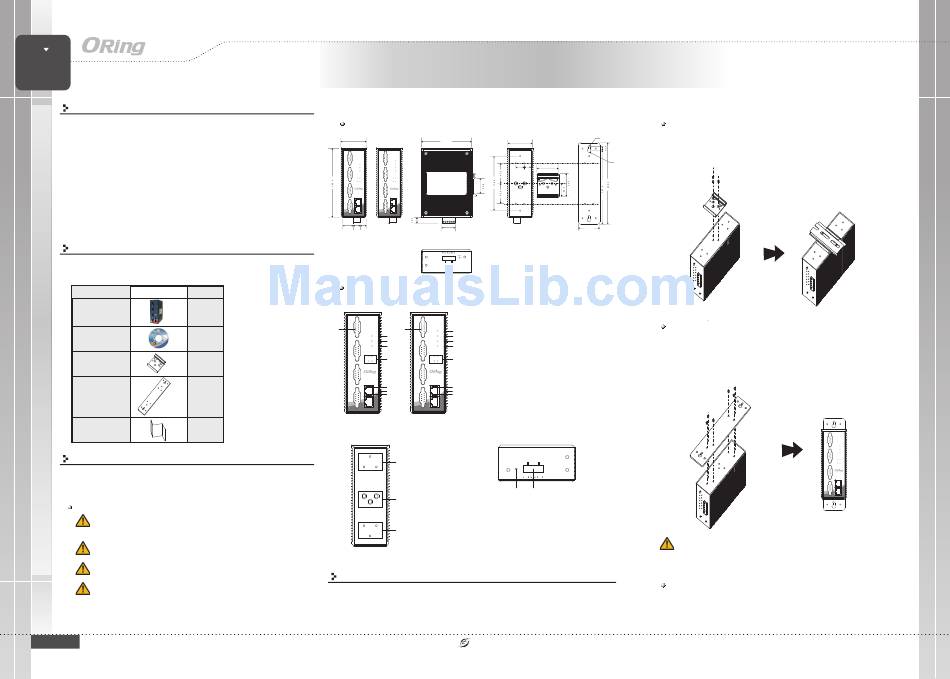

ORiNG IDS-342GT Quick Installation Manual

Device Device
Server Server
Q I
uick nstallation
Introduction
The IDS-342GT(+) is an industrial device server with four RS-232/422/485
ports and two Gigabit LAN ports designed for converting signals between
serial and Ethernet networks. It provides standard features of device servers
such as TCP/IP interfaces and versatile operation modes including Virtual
Com, Serial Tunnel, TCP Server, TCP Client, and UDP. The device also
supports Windows utility DS-Tool which allows you to configure multiple
devices and set up the mappings of Virtual Com. The device can transfer data
to five host PCs simultaneously for redundancy in case of Ethernet
connection breakdown or host PC failure. Further, the device supports
HTTPS, SSH, and SSL encryption to assure the security of critical data
transmission. One of the Ethernet port on the
IEEE802.3af-compliant PoE PD (Powered Device) function, making the
device ideal for environment where cabling or power supply is difficult.
Package Contents
The device is shipped with the following items. If any of these items is missing
or damaged, please contact your customer service representative for
assistance.
Contents Pictures Number
IDS-342GT or
IDS-342GT+
CD
DIN-rail Kit
Wall-mount Kit
QIG
Preparation
Before you begin installing the device, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed environment, make sure
the operating ambient temperature is compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Make sure the amount of air flow required for safe operation
of the equipment is not compromised during installation.
Mechanical Loading: Make sure the mounting of the equipment is not in a
hazardous condition due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits
might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing
this concern.
Q I G
IDS-342GT(+)
IDS-342GT(+)
G
uide
Dimension
54.2
S1 S1
PWR1
PWR2
Fault
S2 S2
S1 S2
S3 S4
S3 IDS-342GT S3
ETH1
S4 S4
ETH2
IDS-342GT+ supports
22.7 15.0 12.6
Panel Layouts
Front View
X 1
S1
8
PWR1
X 1
PWR2
Fault
S2
S1 S2
S3 S4
X 1
S3
IDS-342GT
ETH1
X 1
S4
ETH2
X 1
Rear View
Installation
Use the mounting kits attached with the package and follow the steps below to install the switch to
a rail or to the wall.
1907-2-29-IDS342GT-1.1
106.1 52.0
P.O.E.
PWR1
45.0
PWR2
Fault 18.0 14.1
S1 S2
S3 S4
IDS-342GT+
ETH1
ETH2
P.O.E
30.0
1. Power module 1 status indicator
2. Power module 2 status indicator
S1
8
9
P.O.E.
3. Faulty relay indicator
1 1
PWR1
2 2
PWR2 4. Indicator for serial data communications
3 3
Fault
5. Indicator for LAN port speed
S2
6. LAN port
S1 S2
4 4
S3 S4 (ETH 2 of IDS-342GT+ is PoE-enabled)
7. Indicator for LAN port connection status
8. Serial port
S3 IDS-342GT+
9 . PoE status indicator
5 5
6 ETH1 6
7 7
S4
ETH2
P.O.E
Bottom View
1. Din-rail screw holes
2
2. Wall-mount screw holes
Reset
V2+ V2- Relay V1+ V1-
PWR-2 PWR-1
2 1
1
1. Terminal block with power connectors
2. Reset button
2
PRINTED ON RECYCLED PAPER
Industrial secure serial port to
Ethernet Device Server
DIN-rail Installation
Step 1: Slant the switch and screw the Din-rail kit onto the back of the switch, right in the
middle of the back panel.
R2.5
Step 2: Slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch clicks
into the rail firmly.
R3.95
51.0
Wall-mounting
Step 1: Screw the wall-mount kit (in the package) onto the back of the switch. A total
of six screws are required, as shown below.
Step 2: Use the switch, with wall mount plates attached, as a guide to mark the
correct locations of the wall-mounting screws.
Step 3: Insert a screw head through the large part of the keyhole-shaped aperture on
the plate, and then slide the switch downwards. Tighten the screw for added
stability.
Instead of screwing the screws in all the way, it is advised to leave a space of
about 2mm to allow room for sliding the switch between the wall and the
screws.
Network Connection
The series have standard Ethernet ports. Depending on the link type, the switch uses
CAT 3, 4, 5, 5e UTP cables to connect to network devices (PCs, servers, switches,
routers, or hubs). Please refer to the following table for cable specifications.
Version 1.1
S1
PWR1
PWR2
Fault
S2
S1 S2
S3 S4
S3 IDS-342GT
ETH1
S4
ETH2
Quick Installation Guide
