System Manual
In-Home bus: Video
Issue 2007

Advertisement

Table of Contents
loading

Related Manuals for SSS Siedle BTLE 050-03

Summary of Contents for SSS Siedle BTLE 050-03

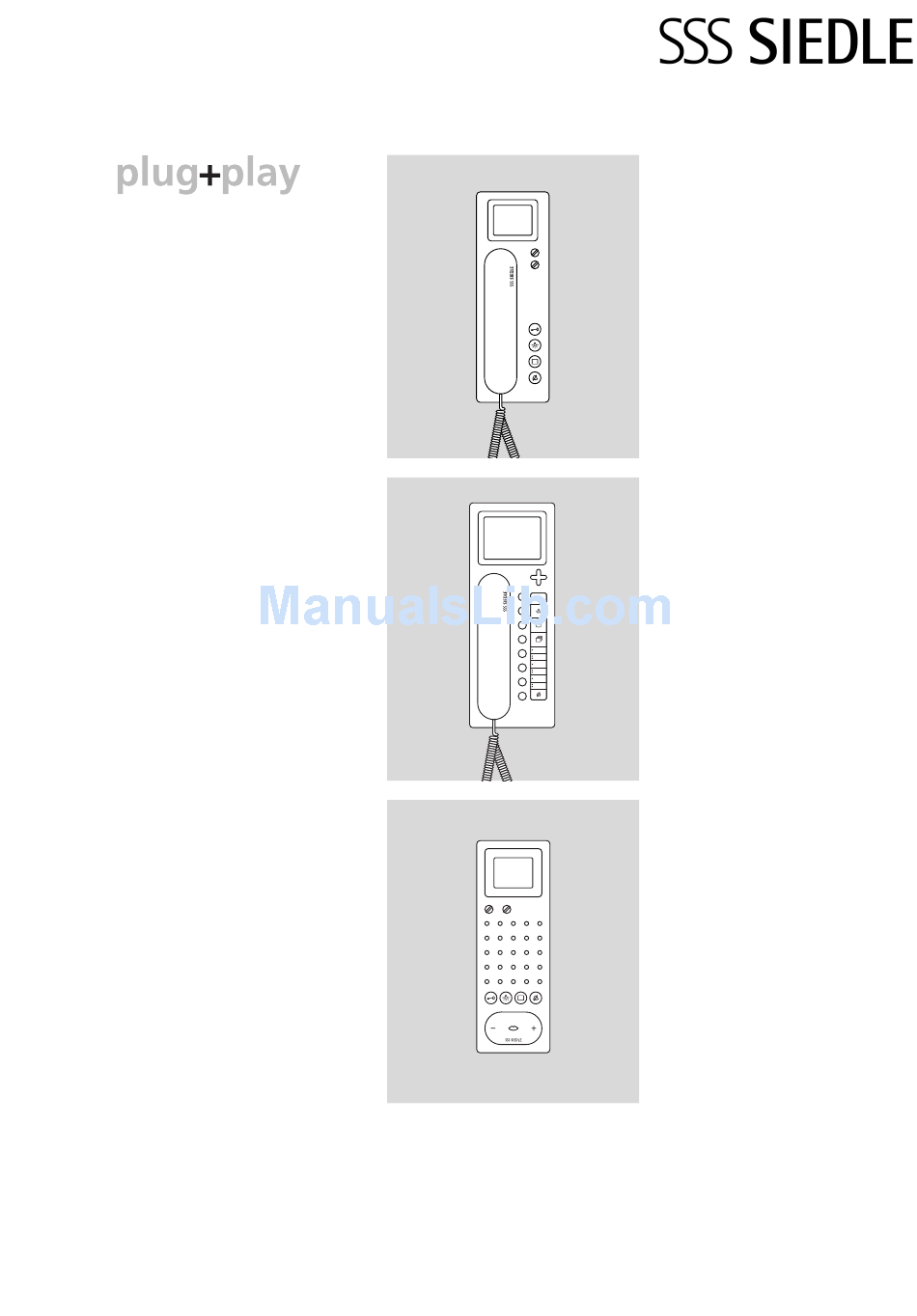

  • Page 1 System Manual In-Home bus: Video Issue 2007...

  • Page 2: Table Of Contents

    Contents 1 In-Home bus: Video AS-TVHa-1/1 Siedle Vario 8 Supplementary functions Calling via display call module System description Switching and control functions 77 AS-TVHa-1/1 with Siedle Vario AS-TVHa-1/1 with switching DoorCom Analog DCA 650-... and control functions AS-TVHa-1/1 with Siedle Vario Door release actuation 2 Safety remarks Additional external camera...

  • Page 3: In-Home Bus: Video System Description

    1 In-Home bus: Video System description Siedle-In-Home: Video Siedle-In-Home: Video single line system multiple line system Configuration Configuration The In-Home bus: Video features the In-Home: Video single line system is Mounting, installation and same basic structure as a Siedle- restricted to 31 users; In order to servicing work on electrical In-Home bus: Audio installation.
  • Page 4 3 Configuration, conductor lengths in single-line systems Configuration of In-Home: Video A2Y(ST)2Y buried The basic Siedle-In-Home bus telecommunication installation type is the single line cable system. Within this one line, light current conductor installation takes place from one Core diameter device to the next, provided this is 0.8 mm allowed by the building installation.
  • Page 5 BTC 850-... BNS 750-... BSE 650-... BEM 650-... BSM 650-... Devices occupying 2 users BTLM 650-03 BTLE 050-03 CL V xx B-01 STL ... BVA 650-... Devices with variable user assignment (depending on programming) DCA 650-... DCI 600-... Devices occupying no users BNG 650-...

  • Page 6: With Bus Distributor

    3 Structure, conductor lengths single line system with bus distributor Conductor length with bus Signal transmission distributor Only signals from the In-Home bus If the use of bus distributors is may be transmitted over the laid necessary for installation, in addition conductor material.
  • Page 7 3 Configuration, conductor lengths Single line system with bus distributor and ZBVNG 650-0 Conductor length with bus distributor and ZBVNG 650-... The ZBVNG 650-... accessory amplifies the video signal, so permitting greater attenuation in the camera branch and monitor branch. To do this, the inserted jumper card in the BVNG 650-...

  • Page 8: Multiple Line System

    3 Configuration, conductor lengths Multiple line system Line 2 Line 15 Line 1...
  • Page 9 Structure of a multiple line Conductor length between the system lines A multiple line system comprises The admissible conductor lengths individual lines which are linked within a line are identical to those in together by two cores. The lines are a single line system.
  • Page 10 3 Configuration, conductor lengths Example to determine the attenuation Example to determine the Attenuation in the monitor attenuation with bus distributor branch to apartment 1 The system is installed using YR Conductor length of the installation cable 0.8 mm diameter. This means cable.

  • Page 11: Installation With J-Y(St)Y

    3 Configuration, conductor lengths Installation with J-Y(ST)Y, increased range Installation with J-Y(ST)Y If it is necessary to use bus The ZBVNG 650-... must be plugged distributors within the installation, into the BVNG 650-...! the attenuation of the conductor material and the bus distributor In deviation from the range must be taken into consideration.
  • Page 12 3 Configuration, conductor lengths Bus distributor application Camera branch: No bus distributor required with a door station. Monitor branch: No bus distributor required when looping through from bus telephone to bus telephone. The integrated bus distributor in the bus telephones is used. Attenuation: No attenuation to be considered.
  • Page 13 3 Configuration, conductor lengths Bus distributor attenuation values BAA 650-... in the camera branch BVVS 650-... in the camera branch BVVU 650-... in the camera branch Application Application Application Connection of a door station When more than one video door When more than one video door without video (e.g.
  • Page 14 4 In-Home: Video users Door loudspeakers, call buttons BTLM 650-03 BTM 650-01 - BTM 650-04 BTLE 050-03 Bus door loudspeaker module for In- Bus call button modules for In-Home Custom-fit bus door loudspeaker for Home bus. bus. In-Home bus. Integrated door...
  • Page 15 Siedle Classic Siedle Steel STL... CL V 01 B-01 - CL V 04 B-01 Door station with stainless steel Door station with stainless steel front, door loudspeaker, call buttons front. Door loudspeaker, illuminated and bus camera. Integrated door call buttons and bus camera. release contact (DR), contact load Integrated door release contact (DR), max.

  • Page 16: Bus Video Transmitter

    4 In-Home: Video users Bus camera and accessories BCMC 650-... CEC 612-... KA/WG 950-... C Bus colour camera module for External colour camera day/night External colour CCD video camera Siedle-In-Home bus: Video. CCD video camera for external for external mounting with weather Integrated 2-step heating, day/night mounting in weather proof housing, proof housing and sun shade, wall...

  • Page 17: Bus Distributor

    4 In-Home: Video users Bus distributor TR 603-... BAA 650-... BVVU 650-... Transformer in a 3-grid housing. Bus audio decoupling for connection Asymmetrical bus video distributor Primary: 230 V AC, 50/60 Hz of audio users such as BFS 850-..., for coupling/decoupling In-Home: Secondary: 12 V AC, 1.3 A BTS 850-..., BTC 850-..., DCA 650-...

  • Page 18: Power Supply, Line Rectifier

    4 In-Home: Video users Power supply, line rectifiers BVNG 650-0 ZBVG 650-0 ZBVNG 650-... Bus video line rectifier in a 9-grid Bus supply unit accessory for Bus video line rectifier accessory for housing. integration in bus video line rectifier mounting in bus video line rectifier Primary: 230 V AC, 50/60 Hz, door BVNG 650-...
  • Page 19 4 In-Home: Video users Switching, control BSM 650-... BSE 650-... BEM 650-... Bus switching module in 3-grid Bus switching unit for mounting in Bus input module for mounting in housing. 4 integrated relays, each 70 mm boxes. LED for status display a 70 m box.
  • Page 20 4 In-Home: Video users PC interface, DoorCom PRI 602-... PRI 602-... USB DCA 650-02 Programming interface for Programming interface for DoorCom-Analog for connection of connection of a Windows PC via connection of a Windows PC via one or more door stations to an serial interface to the Vario bus.

  • Page 21: Bus Telephones Audio

    4 In-Home: Video users Bus telephones BTS 850-0 BFS 850-0 BTC 850-0 Standard bus telephone. Connection Standard handsfree bus telephone. Deluxe bus telephone. Connection at bus cores Ta and Tb. Connection at bus cores Ta and Tb. at bus cores Ta and Tb. •...

  • Page 22: Bus Telephones Video

    4 In-Home: Video users Bus telephones BTSV 850-... BFSV 850-0 W BTCV 850-... Standard bus telephone with colour Standard handsfree bus telephone Deluxe bus telephone with colour monitor. Connection at bus cores with colour monitor Connection to monitor. Connection at bus cores TaM and TbM.

  • Page 23: Accessories

    4 In-Home: Video users Accessories BNS 750-... ZAR 850-0 ZARF 850-0 Bus secondary signal unit, for Interfacing relay accessory for Handsfree interfacing relay accessory signalling door and storey door calls integration into bus telephones for integration in the handsfree bus in another room or corridor.

  • Page 24: Table Top Accessory

    4 In-Home: Video users Accessories ZTS 800-... ZTC 800-... ZTSV 850-... Standard table-top accessory for bus Deluxe table-top accessory for the Standard table-top accessory for telephones BTS 850-... and bus telephone BTC 850-... for converting bus house telephone BFS 850-... for conversion from a conversion from a wall to a table top BTSV/BFSV 850-...

  • Page 25: Bus Call Button Module, Bus Video Line Rectifier

    5 Installation Bus call button module, bus video line rectifier Bus call button module Connection of the bus call button modules to the bus door loudspeaker via ribbon cable. The name plate lighting is supplied from the terminal block of the BTLM 650-03.

  • Page 26: As-Tvha-1/1 Siedle Vario

    5 Installation AS-TVHa-1/1 Siedle Vario...
  • Page 27 AS-TVHa-1/1 Siedle Vario • Selective dialling of the door Installation station possible via additional free In each bus telephone with colour Mode of operation buttons. monitor, there is a terminating Calling, speech and video between • Video memory function possible circuit board connected in the as- the door station and the connected with the bus telephone...

  • Page 28: As-Tvha-1/1 Siedle Vario With

    5 Installation AS-TVHa-1/1 Siedle Vario with BVVU 650-... Loop-through connection...

  • Page 29: As-Tvha-1/1 Siedle Vario With

    5 Installation AS-TVHa-1/1 Siedle Vario with BVVU 650-... Star-shaped installation...

  • Page 30: Siedle Custom-Fit Door Loudspeaker

    5 Installation AS-TVHa-1/1 Siedle custom-fit door loudspeaker...
  • Page 31 AS-TVHa-1/1 Siedle custom-fit must be additionally supplied at the Installation door loudspeaker terminals +M/-M. In each bus telephone with colour • Selective dialling of the door monitor, there is a terminating Mode of operation station possible via additional free circuit board connected in the as- Calling, speech and video between buttons.

  • Page 32: As-Tvha-1/1 Siedle Classic

    5 Installation AS-TVHa-1/1 Siedle Classic...
  • Page 33 AS-TVHa-1/1 Siedle Classic • Selective dialling of the door Installation station possible via additional free In each bus telephone with colour Mode of operation buttons. monitor, there is a terminating Calling, speech and video between • Video memory function possible circuit board connected in the as- the door station and the connected with the bus telephone...

  • Page 34: As-Tvha-1/1 Siedle Steel

    5 Installation AS-TVHa-1/1 Siedle Steel...
  • Page 35 AS-TVHa-1/1 Siedle Steel • Selective dialling of the door Installation station possible via additional free In each bus telephone with colour Mode of operation buttons. monitor, there is a terminating Calling, speech and video between • Video memory function possible circuit board connected in the as- the door station and the connected with the bus telephone...
  • Page 36 5 Installation AS-TVHa-1/2 Siedle Vario...

  • Page 37: As-Tvha-1/2 Siedle Vario 2 Door Stations

    AS-TVHa-1/2 Siedle Vario via one call button. From the second Installation 2 door stations bus telephone, each bus telephone In each bus telephone with colour must be additionally supplied at the monitor, there is a terminating Mode of operation terminals +M/-M. circuit board connected in the as- Calling, speech and video between •...
  • Page 38 5 Installation AS-TVHa-2/1 multiple line system...
  • Page 39 AS-TVHa-2/1 multiple line system • Bus secondary signal unit more information, see chapter 8, BNS 750-... possible, chapter 8, page 82. Mode of operation page 84. Calling, speech and video between • Parallel door and storey call Installation the door station and the connected Up to 8 bus telephones with colour In each bus telephone with colour bus telephones BTSV/BFSV/...
  • Page 40 5 Installation AS-TVHa-1/1 call via display call module DRM 611-0...
  • Page 41 AS-TVHa-1/1 call via display call • Parallel door and storey call h) For programming names, the module DRM 611-0 Up to 8 bus telephones with colour programming software monitor can be called simultaneously PRS 602-0 and programming Mode of operation via one call button.
  • Page 42 5 Installation AS-TVHa-1/1 DoorCom Analog DCA 650-...
  • Page 43 AS-TVHa-1/1 DoorCom Analog • Selective dialling of the door the DCA 650-..If several DCA 650-... station possible via additional free DCA 650-... units are used within a buttons. system, each DCA 650-... must be Mode of operation • Video memory function possible supplied by its own transformer.
  • Page 44 5 Installation AS-TVHa-1/1 additional external camera...
  • Page 45 AS-TVHa-1/1 additional external monitor can be called simultaneously corresponds to the procedure used camera via one call button. From the second for programming a door call. bus telephone, each bus telephone Mode of operation must be additionally supplied at the Installation Calling, speech and video between terminals +M/-M.
  • Page 46 6 Installation AS-TVHa-1/1 Audio & Video...
  • Page 47 AS-TVHa-1/1 Audio & Video Door call to max. 4 BTS/BFS/ Installation BTC 850-... units simultaneously, In each bus telephone with colour Mode of operation with parallel switching accessory monitor, there is a terminating Calling, speech and video between ZPS 850-... possible to max. circuit board connected in the as- the door station and the connected 8 BTC 850-...
  • Page 48 6 Installation AS-TVHa-1/2 Audio & Video...
  • Page 49 AS-TVHa-1/2 Audio & Video Up to 8 bus telephones with colour the supply at terminals +M/-M. For monitor can be called simultaneously more information, see chapter 8, Mode of operation via one call button. From the second page 82. Calling, speech and video between bus telephone, each bus telephone the door station and the connected must be additionally supplied at the...
  • Page 50 6 Installation AS-TVHa-2/1 Audio & Video...
  • Page 51 AS-TVHa-2/1 Audio & Video • Parallel door and storey call used for this purpose. Connection of Up to 8 bus telephones with colour the supply at terminals +M/-M. For Mode of operation monitor can be called simultaneously more information, see chapter 8, Calling, speech and video between via one call button.
  • Page 52 7 Programming Overview of functions Functions with Siedle-In-Home and programming possibilities. Terms used in the table are explained in detail on the right-hand side. Basic function Manual Plug+Play PC-Prog. Remarks Prog. Prog. via BPS 650-... (Teach-In) from V 2.00 Door call Storey call Functional after installation, call differentiation relative to...
  • Page 53 7 Programming Overview of functions Dialling last door Camera step Teach-in The door station from which the last At the button of a BTCV 850-... it is Term for manual programming of call was placed can be dialled by a possible to dial up to 8 door stations bus users.
  • Page 54 7 Programming Remarks Procedure at one BNG 650-... switches all Handsfree bus telephones On principle, the In-Home bus can other connected BNG/BVNG 650-... BFS 850-... and BFSV 850-... be commissioned and programmed units to the programming mode. Picking up and replacing the receiver by one person.

  • Page 55: Programming - Manual

    7 Programming - manual Activating the bus line rectifier To activate the programming mode activating the programming mode, at the bus line rectifier, the LED1 changes over from normal programming mode button has to mode to programming mode. be briefly pressed down. LED1 indicates whether the programming mode is switched on.

  • Page 56: Programming - Manual

    7 Programming - manual Activating the bus door loudspeaker Depending on the type of door station, the programming mode has to be activated in a different way. 1 Siedle Vario 2 Siedle custom-fit door 3 Siedle Classic In the case of door loudspeaker loudspeaker CL A ..
  • Page 57 6 Programming - manual Activating the bus telephone Activate the handsfree bus telephone Activating the bus telephone Bus telephones are set to the programming mode using the light button. 1 The receiver must be off the hook. 2 Hold down the light button for 1 Activate the handsfree bus Repeated short tones are audible in 4 seconds.
  • Page 58 7 Programming - manual Programming door calls Application Call from the door station to a bus telephone. At the bus telephone, a different ring tone optionally be selected. The volume of the door call can be changed at the bus telephone.
  • Page 59 7 Programming - manual Programming door calls at the handsfree bus telephone Application Call from the door station to a bus telephone. At the handsfree bus telephone a different ring tone can optionally be selected for the door call. The volume of the door call can be changed at the bus telephone.

  • Page 60: Door Calls Via The Storey Call Button

    7 Programming - manual Programming door calls via the storey call button Application Programming is only possible Call from the door station to a bus if the storey call button (ERT) is telephone. connected at the bus telephones. If there is no access available to an apartment, this allows programming to still be carried out.

  • Page 61: Door Calls To Several Bus Telephones

    7 Programming - manual Door calls to several bus telephones Application supply. ZPS 850-... in order to use the Where a door call has to be signalled The bus telephones with video parallel call function. Detailed at several bus telephones monitor BTSV/BFSV/BTCV 850-...

  • Page 62: Internal Calls

    7 Programming - manual Programming internal calls Application The muting and light Using bus programming software You wish a bus telephone to be able buttons of the bus telephones BPS 650-0 the buttons of the bus to call and communicate with can be reprogrammed if required for telephones can be double assigned.
  • Page 63 7 At the first bus telephone, hold 8 At the second bus telephone, hold 9 Replace the receiver at both bus down the internal call button you down the internal call button you telephones. Program additional bus wish to use to call the second bus wish to use to call the first bus telephones using the same telephone for 4 seconds.

  • Page 64: Dialling The Door Station

    7 Programming - manual Dialling the door station Application With bus telephones You wish to be able to call one or BTS/BFS 850-..., and BTSV/ more door stations from a bus BFSV 850-... the light or muting telephone using buttons, e.g. in button can be used for this function.
  • Page 65 7 Programming - manual Call differentiation of 2 door stations Application Call differentiation can At the bus telephone you wish to be take place from max. 2 doors. able to tell at which door the door Door call 1 = tone sequence 1, call has been made, e.g.

  • Page 66: Additional Contact On The

    7 Programming - manual Additional contact on the BSM 650-... Application In addition to an already programmed bus telephone, you wish a potential-free switching contact to be closed when a door call is placed. Actuation of an additional bell or lamp on placement of a door call.
  • Page 67 7 Programming - manual Button of a bus telephone on the BSM 650-... Application Actuation of a contact in the BSM 650-..., e.g. in order to open a garage or switch on a staircase light. 1 Switch on the programming 2 Switch the BSM 650-...

  • Page 68: Call Button Of A Door Station On The Bse 650

    7 Programming - manual Call button of a door station on the BSE 650-... Application be mounted in a 55 junction box. Potential-free switching contact The bus telephone must already be which is closed on placement of a programmed to the call button. door call.

  • Page 69: Button Of A Bus Telephone On The Bse 650

    7 Programming - manual Button of a bus telephone on the BSE 650-... Application Actuation of additional functions Using the bus programming such as switching on the staircase software BPS 650-... the light or garage door OPEN/SHUT. switching function/time can now be Switching time with manual changed.
  • Page 70 7 Programming - manual Bus secondary signal unit BNS 750-... Application Signal device to additionally indicate the door call and/or storey call in another room. Where there are several doors, the same programming sequence must be used every time. 1 Switch on the programming 2 At the door station, hold down the 3 Lift the receiver at the bus phone mode.
  • Page 71 6 Programming - manual Calling via the DRM 611-... Application BTSV/BTCV 850-... are used, The names are entered at the PC Bus telephones are called from the remember to pick up the receiver as using the programming software door station via the display call part of the programming procedure.

  • Page 72: Basics

    • Take all the bus telephones off the BTCV 850-0, new door loudspeaker (receiver down) base plate. BTLM 650-03/BTLE 050-03, bus call • The storey call is audible briefly • Plug+Play programming can now button modules BTM 650-01, -02, after appr. 7 seconds as begin again.
  • Page 73 Bus custom-fit door loudspeaker The sequence of terminals on the bus call button matrix corresponds to the sequence of bus telephones. Terminal 7.1 = Bus telephone 1 etc. Terminal 7.12 = Bus telephone 12 Siedle Classic The sequence of terminals on the bus call button matrix corresponds to the sequence of bus telephones.
  • Page 74 7 Programming - Plug+Play Example of a 4-family home Example Plug+Play programming 4-family home Restrictions with Plug+Play • Bus telephones which you wish to BVNG 650-... must be restored to programming ring in parallel or devices for as-delivered status and Plug+Play switching and control functions programming repeated.
  • Page 75 7 Programming - Plug+Play Procedure - Example 1 Activate the Plug+Play mode at 2 Position the bus telephone in 3 Position the bus telephone in the BVNG 650-..., hold down the apartment 1 with the receiver down. apartment 2 with the receiver down. programming mode button for The story call is audible as an The story call is audible as an...

  • Page 76: Bps 650

    7 Programming - with PC BPS 650-... and PRI 602-... USB Using bus programming software Mobile operation In-Home bus programming: BPS 650-... from V 2.00 the entire function of an In-Home system can be programmed using a Windows PC. For connection of the PC to the In-Home installation, the program.

  • Page 77: Supplementary Functions

    8 Supplementary functions Switching and control functions Bus switching unit Bus switching module Bus input module BSE 650-... BSM 650-... BEM 650-... Application Application Application 1 Changeover contact, e.g. for 4 working contacts, e.g. for Optical feedback of switching - Switching the outside light - Switching the outside light statuses, e.g.
  • Page 78 8 Supplementary functions AS-TVHa-1/1 with switching/control functions...

  • Page 79: Switching And Control Functions

    AS-TVHa-1/1 Siedle Vario Remarks Installation a) The TR 603-... (12 V AC, 1.3 A) In each bus telephone with colour Mode of operation can supply 1 door release button monitor, there is a terminating Calling and speech between the and max. 14 bus call button circuit board connected in the as- door station and connected bus modules with LED lighting...

  • Page 80: Door Release Actuation

    8 Supplementary functions Door release actuation In deviation from the standard plans, is also a door release contact which be used in order to guarantee the the door release can be actuated in is only closed when the bell has greatest possible degree of various ways.
  • Page 81 The DR contact in the bus video line rectifier and the door release contact in the door loudspeaker are used. The contact in the BVNG 650-0 switches the door release button every time it is pressed, the contact in the door loudspeaker only at the door from which the last door call was placed.

  • Page 82: Parallel Door Call

    8 Supplementary functions Parallel door call, supplementary power supply, video memory Parallel door call in bus be called simultaneously via a bell Video memory BTCV 850-... telephones with video. button. When providing the When using the video memory At the In-Home bus: Video can ring in the BTCV 850-...

  • Page 83: Video Memory

    8 Supplementary functions Parallel door call, supplementary power supply, video memory A maximum of 3 BTSV/BFSV/ BTCV 850-... units can be supplied by a NG 602-... line rectifier. The maximum current of the 30 V DC direct voltage from the VNG 602-... is 1100 mA.

  • Page 84: Storey Call Parallel Switching

    8 Supplementary functions Storey call parallel switching Parallel storey call The storey call button (ERT) is used to call into the apartment from an apartment door. For calls to several bus telephones, it is possible to connect the ERT terminal in parallel, e.g.

  • Page 85: Supplementary Contact

    8 Supplementary functions Supplementary contact, radio chime, pilfer safeguard Supplementary contact in the BTSV/BFSV/BTCV 850-... The bus telephones BTSV/BFSV/BTCV 850-... provide an additional contact at terminals S1/S1. Actuation of an additional signalling device such as a radio chime or optical display of the door call. If the contact is required in the sub- distributor, the door call can be programmed to a contact at a...
  • Page 86 8 Supplementary functions Staircase light/Outside light Light actuation The light button in the bus telephone BTSV/BFSV/BTCV 850-... or BTLM 650-... is used to actuate the light contact in the bus line rectifiers BNG/BVNG 650-... Following completion of the installation, this function is active without any further programming.

  • Page 87: Servicing

    9 Servicing Restart, exchange, operating mode Restarting the system Exchanging the BVNG 650-... for A restart of the system is known as a the BVNG 650-... Power-ON reset. The existing system Switch off the power supply to the programming is retained. bus line rectifier, wait for a few •...
  • Page 88 9 Servicing Operating mode switch BVNG 650-... Exchange the existing Operating mode switch 1-Norm-2 BVNG 650-0: BVSG 650-... for the BVNG 650-0 When exchanging the BVNG 650-0 Switch position 1 Switch position in an existing system for the “Downward compatible” “Norm”...

  • Page 89: Led Displays Bvng 650-0

    9 Servicing LED displays BVNG 650-0 With the two displays LED1 and LED2 at the bus video line rectifier, functions for operation and possible faults are indicated at the In-Home bus. The following table indicates the possible displays. Display LED1 “Operation” LED flashes evenly 0.3s 0.3s...

  • Page 90: Measured Values

    9 Servicing Measured values Measured values at the In-Home bus: Video, to be measured with using a digital multimeter Idle status min. max. Voltage TaM/TbM (TaK/TbK) at the bus line rectifier BVNG 650-... 27 V DC 31 V DC Voltage TaM/TbM (TaK/TbK) at the most distant user 19 V DC Current consumption bus telephones BTSV/BFSV/BTCV 850-...
  • Page 91 10 Glossary Index Technical additions and printing Address 9, 25 BAA 650-... 12, 17 errors do not constitute grounds for As-delivered status BCMC 650-... any claims to damages. Call silencing BEM 650-... 19, 77 Classic CL ... 15, 32 BFS 850-... The In-Home Bus: Commissioning BFSV 850-...
  • Page 92 S. Siedle & Söhne © 2007/04.07 Printed in Germany Postfach 1155 Order no. 0-1101/036980 GB D-78113 Furtwangen Bregstraße 1 D-78120 Furtwangen Tel. +49 7723 63-0 Fax+49 7723 63-300 www.siedle.de info@siedle.de...
