3.2.8 FAX Section
Modem Part

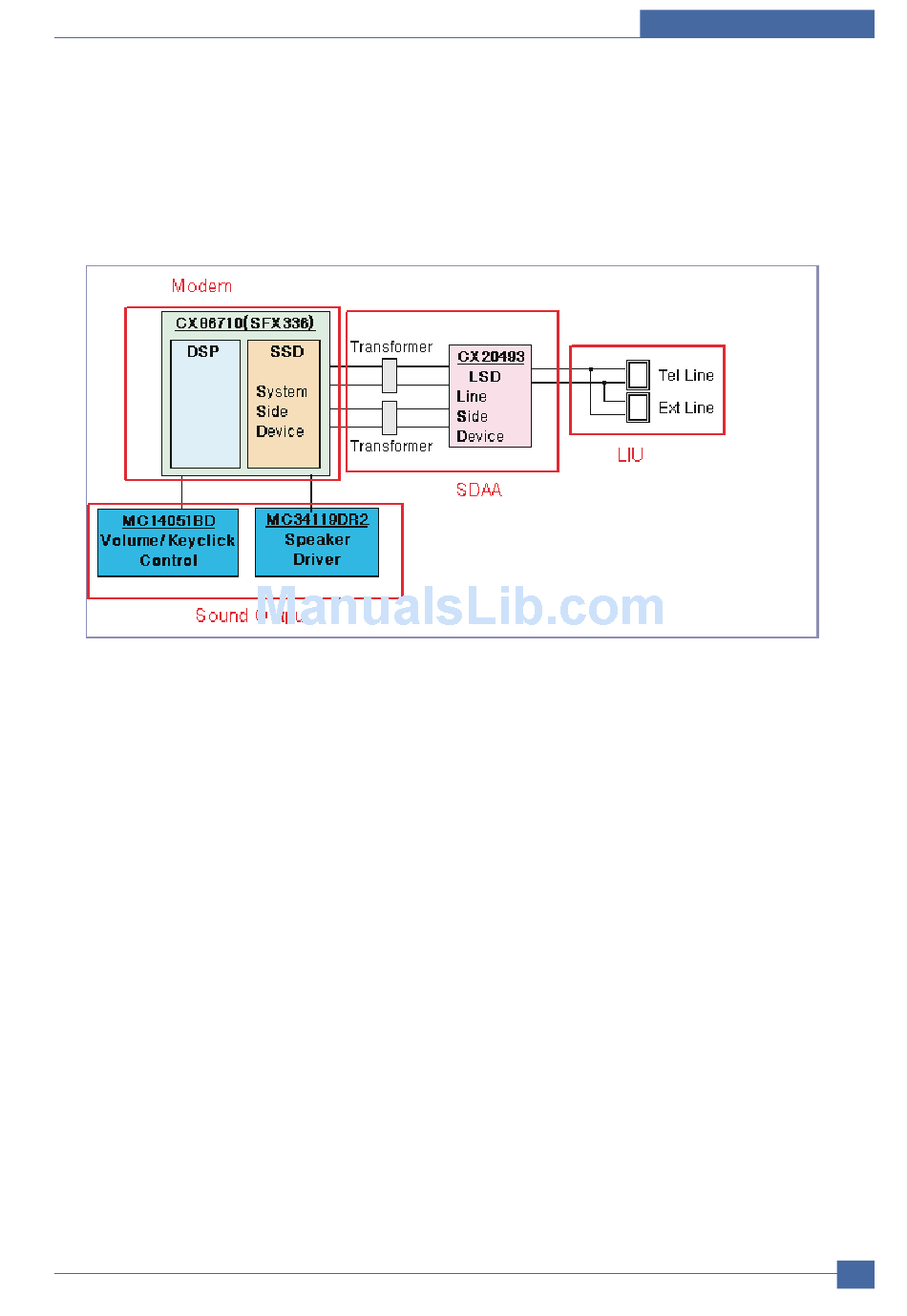

BLOCK DIAGRAM
Implemented by based on Conexant DAA (Data Access Arrangement) Solution, and is roughly composed of two kinds
Chip Solution
- CX86710 (SFX336): Existing Modem Chip which adds SSD (System Side Device) for interfacing between LSD and DIB
of FM336Plus Core
- CX20493 (LSD) : LIU (Line Interface Unit) Chip which is controlled by SSD and satisfies each PSTN Requirements by
modulating internal Configuration with connecting Tel Line.
