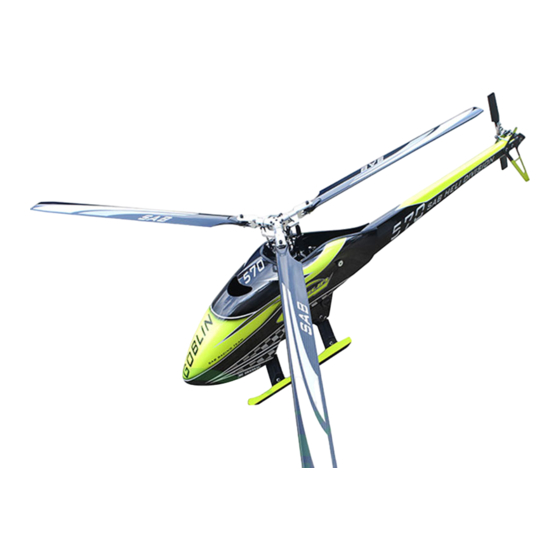

SAB goblin 570 kyle stacy edition User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading

Related Manuals for SAB goblin 570 kyle stacy edition

Summary of Contents for SAB goblin 570 kyle stacy edition

  • Page 2 Goblin 570 Kyle Stacy Edition Manual Release 1.0 - September 2015 WORLD DISTRIBUTION www.goblin-helicopter.com For sales inquiries, please email: sales@goblin-helicopter.com For info inquiries, please email: support@goblin-helicopter.com Attention: If you are a consumer and have questions or need of assistance, please contact in a first time the Goblin retailer where you made the purchase EUROPEAN DISTRIBUTION www.sabitaly.it...

  • Page 3: Very Important

    This is the only way to ensure that you are properly informed about changes to your kit, such as upgrades, retrofits and other important developments. SAB Heli Division cannot be held responsible for issues arising with your model and will not provide support unless you register your serial number.
  • Page 4 *Lack of care with assembly or maintenance can result in an unreliable and dangerous model. *Neither SAB Heli Division nor its agents have any control over the assembly, maintenance and use of this product. Therefore, no responsibility can be traced back to the manufacturer. You hereby agree to release SAB Heli Division from any responsibility or liability arising from the use of this product.
  • Page 5 Chapter 3, In The Box ADDITIONAL COMPONENTS REQUIRED TOOLS, LUBRICANTS, ADHESIVES *Electric Motor: 6S–1000/1400 Kv, 12S–500/700 Kv *Generic pliers maximum diameter 52mm, maximum height 56mm, *Hexagonal driver, size 1.5, 2, 2.5, 3, 4 mm pinion shaft diameter 5 - 6mm *4mm T-Wrench *5.5mm Socket wrench (for M3 nuts) *Speed controller: 6S minimum 100A, 12S minimum 80A...
  • Page 6 Chapter 4, Carbon Frame The manufacturing process of the carbon parts often leaves 4-Carbon Frame micro-burrs and sharp edges. We recommend de-burring the edges to minimize the risks of electrical wire cuts, etc. Very Important in red line zone. Page 4...
  • Page 7 Chapter 4, Carbon Frame Tray 3, Bag 1, Bag 1-A7, Bag 1-B7 Right Main Frame Assembly Battery Support Assembly Battery Support Dx Spacer 54mm (H0312_B-S) Battery Block Main Frame (H0239-S) (H0290-S) (H0256-S) Button Head Cap Screw M2x5mm Battery Support Sx (HC005-S) (H0312_A-S) Battery Support...
  • Page 8 Chapter 4 ,Carbon Frame Bag 1, Bag 1-C7 By using these screws you make landing gear stronger. CF Landing Gear Assembly However in case of hard crash you can damage the main frame. Without using screws that landing gear is a breaking point that avoid main frame damage Finishing Socket Head Cap...
  • Page 9 Chapter 5 , Tranmission Assembly 5-Tranmission Assembly Page 7...
  • Page 10 Chapter 5, Transmission Assembly Tray 2, Tray 3, Bag 2.1 Column 18T Pinion (H0263-S) (H0292-S) Bearing 16x5mm Socket Head Cap (HC419-S) Screw M2.5x15mm (HC031-S) Metric Hex Nylon Nut M2.5H3.5 Bearing 19x5mm Secondary Shaft (HC200-S) (HC422-S) (H0294-S) Main Shaft (H0296-S) Main Structure 62T Main Gear (H0212-S) (H0423-S)
  • Page 11 Chapter 5, Transmission Assembly Tray 3, Bag 2.2, Bag 2.3 60T Pulley Assembly Bearing 15x4mm (HC420-S) One Way Bearing Swashplate Anti- 14x12mm Rotation Guide (HC442-S) (H0401-S) 60T Pulley (H0295-S) Socket Head Cap Screw M2.5x8mm (HC020-S) Bearing 15x4mm (HC420-S) Finishing Washer M2.5 (H0255-S) Sensor Support (H0224-S)
  • Page 12 Chapter 5, Tranmission Assembly Tray 3, Bag 3.1, Bag 3.2 Bushing 6x18mm (H0266-S) (Needed with 5 mm motor shaft) Metric Hex Nylon Nut M4H5 (HC212-S) Set Screw 20T Pulley M4x4mm Washer 4.3x 11x1mm (H0215-20-S) (HC152-S) (HC184-S) (See page 16 for additional pulleys available) Spring de 5 / df 0.3 / LL6 (HC316-S)
  • Page 13 Chapter 6, Main Rotor Assembly 6-Main Rotor Page 11...
  • Page 14 Chapter 6, Main Rotor Assembly Tray 1, Bag 4 Radius Arm Assembly ... x 2 Center Hub Assembly Socket Head Cap Screw M2.5x5mm (HC017-S) Flanged Bearing Radius Arm Center Hub 7x3mm (H0474-S) (H0473-S) (HC402-S) eg: Microlube GL261 Spindle Pin 4 mm (H0471-S) Spacer (H0472-S)
  • Page 15 Chapter 7, Installation Of Servos Tray 2, Bags 5.1, 5.2 Socket Head Cap Tail Servo Assembly Screw M2.5x10mm (HC022-S) The distance between the Servo Spacer Socket Head Cap center of the horn and the ball (H0075-S) Screw M2x6mm should be between 15-18 mm. Tail Servo (HC004-S) CF Tail Servo...
  • Page 16 Chapter 7, Installation Of The Servos Bag 5.3, Bag 5.4 Installation Of The Swashplate Servos The distance between the center of the horn and the ball should be between 16-18 mm (Figure 1). Select the carbon fiber servo mount that is suitable for the size of servos to be used (Figrure 2). 16-18mm H0308 Servo Mounting...
  • Page 17 Chapter 8, Assembling The Modules Tray 1, Bags 5.5, 5.6 Head Cap Screw Shouldered M3x20 (HC082-S) Head System Assembly Metric Hex Nylon Socket Head Cap Nut M3 Screw M3x12mm (HC206-S) (HC062-S) Swashplate Swashplate Assemly Assemly Uniball M3H18 (H0063-S) Uniball Uniball M3H3 M3H3 (H0065-S)
  • Page 18 Chapter 9, Installation Of the Motor TRANSMISSION SETUP It is important to choose the right reduction ratio to maximize efficiency based on your required flight performance. The Goblin has many possible reduction ratios at your disposal. It is possible to optimize any moror and battery combination. It is recommended to use wiring and connector appropriate for the currents generated in a helicopter of this class.
  • Page 19 Chapter 9, Installation Of The Motor Bag 6.1 Motor Belt Tension - Install the motor and pulley to the motor mount plate. - Place the motor assembly in position. - Compress the springs by pushing the motor towards the main shaft. - At max compression, tighten one of the slide screws temporarily.
  • Page 20 Chapter 10, Installation Of The ESC De-Burr The Side Frames We recommend de-burring the edges of the carbon parts in areas where electrial wires run. See Page 4. ESC Installation The electronic speed control (ESC) is intalled in the front part of the helicopter. You can easily fasten the ESC with cable ties as shown in figures 1 and 2.
  • Page 21 Chapter 11, Installation of FBL & RX Bags 6.2, 6.3 FBL System Installation We recommend the use of a one unit flybarless system, i.e. Mini vBar, Microbeast, etc. However, a two unit flybarless system can also be installed. For one unit systems, the unit is installed as shown in position 1. See Fig 1,2,3. Position 2 and 3 can be used for RX System.
  • Page 22 Chapter 12, Tail Assembly Tray 1, Bag 7.1, Bag 7.2 Tail Rotor Hub Assembly Tail Pitch Slider Assembly Tail Pitch Slider 02 Tail Pitch Slider 01 (H0233-S) (H0233-S) Oring (HC334-S) Spindle Shaft (H0220-S) Tail Shaft (H0227-S) Flanged Bearing 11x3mm (HC416-S) Tail Pitch Slider 03 (H0233-S) Note:...
  • Page 23 Chapter 12, Tail Assembly Tray 1, Bags 7.3, 7.4, 7.5, 7.6, 7.7, 7.8 Tail Side Plate Assembly Bell Crank Lever Assembly Socket Head Cap Screw M2.5x6mm Flanged Bearing (HC018-S) 2.5x 6x2.5mm Bell Crank Support (HC400-S) Tail Side Plate (H0229-S) Tail Pin (H0297-S) (H0264-S) Spacer Arm...
  • Page 24 Chapter 13, Boom Assembly Bags 7.9, 7.10, 7.11 Tail Boom Assembly Locking Element Tail Assembly ...x2 Locking Element Tail (H0249-S) Metric Hex Nylon Nut M3 (HC206-S) Yellow/Orange Tail Boom ( H0300-S) White Tail Boom (H0301-S) Note: DETAIL A Double Sided Tape (HA022-S) Locking Element Tail Assembly...
  • Page 25 Chapter 13, Boom Assembly Bag 7.12, Bag 10.2 Installation Of The Boom - Insert the boom in place helping enlarging the frame ( Fig 1,2 ). - Push the boom forward until the nylon bolts bottom out against the end of the slot on the boom. - Tighten the nylon bolts and only after tighten the two M3x10mm screws.
  • Page 26 Chapter 14, Battery Bag 8 Batteries * Follow the figure for assembly the battery. You can see 6S solution (fig 1,2,3,4 ) and 12 S solution ( fig 5,6,7,8 ). * With 12S configuration, it is recommended to orient down the wires in the front battery (Fig 7). * Before permanently mounting the batteries onto the battery tray, check the ideal position for the best center of gravity.
  • Page 27 Chapter 15, Canopy & Serial Number Bag 8, Bag 9 CANOPY - The canopy touches the frames on the Goblin, this is normal and expected as it is part of the design. To avoid canopy damage due to high frequency vibration, it is necessary to attach the adhesive foam tape HA006 to the canopy.
  • Page 28 Chapter 16, In Flight / Maintenance Bag 10.1 Operations Before Flight *Set up the transmitter and the flybarless system with utmost care. *It is advisable to test and verify all the settings on the transmitter and flybarless system without the main or tail blades on initially. *Check that all wiring is isolated from the carbon/aluminum parts.
  • Page 29 Chapter 17, Exploded view, Carbon Frame 21 5 CARBON FRAME SYSTEM CODE NAME SPECIFICATION QUANTITY H0031 Uniball Spacer Aluminum H0064 Uniball H0217 Canopy Ponsitioner Aluminum H0239 Aluminum Spacer 54mm Aluminum H0255 Finishing Washers M2.5 H0256 Battery Block Aluminum H0289 CF Tail Servo Support Carbon Fiber H0290 Main Frame...
  • Page 30 Chapter 17, Explode View, Transmission Assembly TRANSMISSION ASSEMBLY TRANSMISSION ASSEMBLY Name Specification Name Specification Quantity Quantity H0207 Bearing Support Aluminum HC028 Socket Head Cap Screws M2.5x15mm H0208 Servo Support Aluminum HC033 Socket Head Cap M2.5x19mm Shouldered HC056 Socket Head Cap Screws M3x10mm H0212 Main Structure...
  • Page 31 Chapter 17, Explode View, Transmission Assembly Swashplate Set [H0475-S] Head Sys Name Specification Quantity Head Syst H0031 Uniball Spacers 5 x 2mm Name Specification Quantity HC004 Socket Head Cap Screws M2 x 6mm H0063 Uniball M3 x 4 5 H18 HC008 Socket Head Cap Screws M2 x 8mm...
  • Page 32 Chapter 17, Exploded view, Tail System TAIL SYSTEM Name Specification Quantity H0007 Finishing Washer M3 Aluminum TAIL SYSTEM Name Specification Quantity H0062 Spacer 9 x 0.5mm H0305 Pulley H0064 Uniball H0066 Plastic Ball Linkages Plastic H0394 Carbon Road Support Plastic H0076 Spacer 3 x 3mm H0395...
  • Page 33 Chapter 18 , Spare Parts Finishing Washer M3 Spacer Ø7 X Ø9 X 0,5 Uniball Goblin M3Ø5H18 Uniball Goblin M2Ø5H3.5 Uniball Goblin M3Ø5H3.5 [H0007-S] [H0062-S] [H0063-S] [H0064-S] [H0065-S] - 5 x Uniball Goblin M2H3.5. - 5 x Uniball Spacer. - 5 x Socket Head Cap Screw M2x8mm.
  • Page 34 Chapter 18 , Spare Parts Spacer Ø8xØ12,5x0,5 Tail Rotor Shaft Bell Crank Support Tail Pitch Slider Bell Crank Level [H0225-S] [H0227-S] [H0229-S] [H0233-S] [H0234-S] - 1 x Bell Crank level. - 2 x Tail Pin. - 1 x Tail Pitch Slider 01. - 2 x Flanged Bearing - 1 x Tail Pitch Slider 02.
  • Page 35 Chapter 18 , Spare Parts Yellow Tail Boom White Tail Boom (Optional Scheme) (Optional Scheme) [H0300-S] [H0301-S] - 1 x Yellow Tail Boom. - 2 x Locking Element Tail. - 1 x WhiteTail Boom. - 2 x Locking Element Tail. - 2 x Nylon Screw M8x14mm.
  • Page 36 Chapter 18 , Spare Parts Servo Block Tail Servo Mount Carbon Road Support Anti-Rotation Guide CNC Derlin Main Gear [H0392-S] [H0393-S] [H0394-S] [H0401-S] [H0423-S] - 1 x Carbon Road Support A. - 8 x Servo Block. - 1 x Tail Servo Mount. - 1 x Carbon Road Support B.
  • Page 37 Chapter 18, Spare Parts [HC002-S] [HC004-S] [HC005-S] [HC008-S] [HC014-S] - 5 x Socket Head Cap - 5 x Socket Head Cap - 5 x Button Head Cap - 5 x Socket Head Cap - 5 x Socket Head Cap Screws M2x5mm. Screws M2x6mm.
  • Page 38 SAB HELI DIVISION SAB HELI DIVISION SAB HELI DIVISION Black Hoodies Neck Strap Decal [HM029-S-M-L-XL-XXL] [HM034] [HM035] - 1 x SAB HELI DIVISION - SAB HELI DIVISION Black Hoodies. - 1 x Neck Strap. Decal ( set ). Page 36...
  • Page 39 WORLD DISTRIBUTION www.goblin-helicopter.com For sales inquiries, please email: sales@goblin-helicopter.com For info inquiries, please email: support@goblin-helicopter.com Attention: If you are a consumer and have questions or need of assistance, please contact in a first time the Goblin retailer where you made the purchase EUROPEAN DISTRIBUTION www.sabitaly.it For sales inquiries, please email: sales@sabitaly.it...
