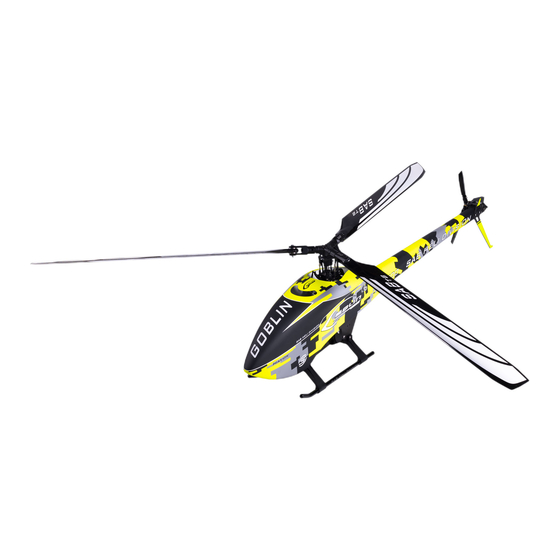

SAB Goblin Thunder 700 Sport 3 Blades Manual
  1. Manuals
  2. Brands
  3. SAB Manuals
  4. Toy
  5. Goblin Thunder 700 Sport 3 Blades
  6. Manual

SAB Goblin Thunder 700 Sport 3 Blades Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SAB HELI DIVISION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Goblin Thunder 700 Sport 3 Blades and is the answer not in the manual?

Questions and answers

Related Manuals for SAB Goblin Thunder 700 Sport 3 Blades

Summary of Contents for SAB Goblin Thunder 700 Sport 3 Blades

  • Page 1 SAB HELI DIVISION...
  • Page 2 Goblin 700 Sport 3 Blades Release 1.0 - October 2018 WORLD DISTRIBUTION www.goblin-helicopter.com For sales inquiries, please email: sales@goblin-helicopter.com For info inquiries, please email: support@goblin-helicopter.com Attention: If you are a consumer and have questions or need of assistance, please contact in a first time the Goblin retailer where you made the purchase EUROPEAN DISTRIBUTION www.sabitaly.it For sales and information, please email: sales@sabitaly.it...

  • Page 3: Chapter 1, Serial Number

    It is extremely important that you take a moment to register your helicopter with us. This is the only way to ensure that you are properly informed about changes to your kit, such as upgrades, retrofits and other important developments. SAB Heli Division cannot be held responsible for issues arising with your model and will not provide support unless you register your serial number.

  • Page 4: Chapter 2, Important Notes

    SAB Heli Division to be defective In the event of a defect, this is the Purchaser’s exclusive remedy. Replacement decisions are at the sole discretion of SAB Heli Division. This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of or to any part of the Product.

  • Page 5: Chapter 3, Components And Box

    Chapter 3, Components and Box TOOLS, LUBRICANTS, ADHESIVES ADDITIONAL COMPONENTS REQUIRED *Generic pliers *Electric Motor: 12S – 480/600Kv *Hexagonal driver, size 1.5, 2, 2.5, 3, 4, 5mm Maximum diameter 64mm, *4mm T-Wrench Maximum height 64mm, *5.5mm Socket wrench (for M3 nuts) Pinion shaft diameter 6/8mm *8mm Hex fork wrench (for M5 nuts) *Speed controller: minimum 160A to be safe...

  • Page 6: Chapter 4, Carbon Frame

    Chapter 4, Carbon Frame The manufacturing process of the carbon parts often leaves micro-burrs and sharp edges. We recommend de-burring the edges to minimize the risks of electrical wire cuts, etc. Very important in red line zone. Page 4...
  • Page 7 Chapter 4, Carbon Frame BAG 1.1, BAG 1.2 Battery Tray Assembly Socket Head Cap Screw M2.5x8mm (HC020-S) Stop Battery Plate Battery Tray Flat Head Cap Screw Flat Head Cap (H0150-S) (H0002-S) M2.5x5mm Screw M2.5x5mm (HC128-S) (HC128-S) Frame Spacer (H0003-S) Frame Spacer Frame Spacer (H0003-S) (H0003-S)
  • Page 8 Chapter 4, Carbon Frame BAG 1.2, BAG 1.3 Left Main Frame Assembly Right Main Frame Assembly Main Frame (H0931-S) Socket Head Cap Screw M3x8mm (HC050-S) Finishing Washer M3 (H0007-S) Finishing Washer M3 (H0007-S) Cable Pass (HA010-S) Finishing Note Washer M3 Socket Head Cap (H0007-S) Socket Head Cap...
  • Page 9 Chapter 4, Carbon Frame BAG 1.3 Use This Hole Finishing Washer M3 Plastic Landing Gear (H0007-S) Assembly Use This Hole Finishing Washer M3 (H0007-S) Socket Head Cap Socket Head Cap Screws M3x14mm Screws M3x14mm [HC064] [HC064] Set Screw M4x4mm (HC152-S) Set Screw M4x4mm (HC152-S) Page 7...

  • Page 10: Chapter 5, Transmission Assembly

    Chapter 5, Transmission Assembly Page 8...
  • Page 11 Chapter 5, Transmission Assembly BAG 2 Flat Head Cap Screw M2.5x5mm (HC128-S) Bearing 24x6mm (HC426-S) Bearing Support Assembly (H0024-S) Socket Head Cap Screw M3x10mm Socket Head Cap (HC056-S) Screw M3x10mm (HC056-S) Servo Support (H0010-S) Column (H0018-S) Column (H0018-S) Bearing 19x5mm (HC422-S) Note: Swash plate...
  • Page 12 Chapter 5, Transmission Assembly BAG 3 60T Pulley Assembly Note: (H0171-S) When you tighten the collar (H0121-S) on the main shaft, ensure there is no axial play. Push down the main shaft while pulling up the Bearing locking collar. Tighten the screw M4x22 at this time. 15x4mm (HC420-S) It is very important to lubricate these two...
  • Page 13 Chapter 5, Transmission Assembly BAG 4 Tail Belt Idler Assembly (H0174-S) Flanged Bearing 7x3mm (HC402-S) Tail Belt Idler [H0069] Main Structure Assembly Belt Tensioner Arm Assembly (H0174-S) Button Head Cap Screw M3x4mm (HC038-S) Belt Tensioner Support (H0174-S) Spring Belt Tensioner de 8 / df0.5 / LL8 [HC312] (HC315-S)
  • Page 14 Chapter 5, Transmission Assembly BAG 5 Socket Head Cap Screw M3x8mm (HC050-S) Flanged Bearing 13x5mm Bearing support (H0143-S) (HC414-S) Install H00142 after mounting the motor. The motor shaft requires a centered pulley. H0142 can not be used with an 8mm motor shaft. 21T Pulley (H0175-21-S) Install motor pulley after installing H0142.
  • Page 15 Chapter 6, Head BAG 6 Socket Head Cap Radius Arm Assembly ... x 2 Center Hub Assembly Screw M2.5x6mm (HC018-S) Flanged Bearing 7x3mm Center Hub (HC402-S) Radius Arm (H0410BM-S) (H0421BM-S) eg: Microlube GL261 Spindle Spacer Arm (H0412-S) Pin 5 mm (H0134-S) (H0413-S) Oring...

  • Page 16: Chapter 7, Assembling The Modules

    Chapter 7, Assembling The Modules BAG 7 Swashplate Assemly (H0420BM-S) Note: Uniball M3 (H0065-S) Uniball M3 Metric Hex (H0065-S) Nylon Nut M4 (HC212-S) Use Loctice in all Screw Head HPS Assembly Uniball (H0063-S) Socket Head Cap Screw M3x10mm (HC056-S) Socket Head Cap Shoudered M4x24mm (HC111-S) Socket Head Cap...

  • Page 17: Chapter 8, Installation Of Swashplate Servos

    INSTALLATION OF SWASHPLATE SERVOS The linkage ball must be positioned between 17-19 mm out on the servo arm (Figure 1), recommended servo arm SAB p/n [HA050/HA051]. The 120° placement of the servos inside Goblin means the arms are difficult to access. For this reason it is advisable to ensure alignment of the servo arms (and sub trim set) before installation of the servos in the model.
  • Page 18 Chapter 8, Installation Of Swashplate Servos BAG 8 The wire for the front servo must be positioned here Head HPS Version Preliminary Setup Adjust the linkage as shown. The linkage Rod A has thead right/left. Turning, you can change the tracking without disconnecting the plastic ball link. Linkage Rod A Assembly ...

  • Page 19: Chapter 9, Installation Of The Motor

    Chapter 9, Installation Of The Motor TRANSMISSION SETUP It is important to choose the right reduction ratio to maximize efficiency based on your required flight performance. The Goblin has many possible reduction ratios at your disposal. It is possible to optimize any motor and battery combination.

  • Page 20: Motor Belt Tension

    Chapter 9, Installation Of The Motor MOTOR BELT TENSION *Assemble the motor and pinion to its mounting plate. *Fit the motor assembly into position. *Compress the springs by pushing the motor toward the main shaft. *At maximum compression, temporarily tighten one of the slide screws. *With the minimum centre distance it is easy to install the belt.
  • Page 21 Chapter 10, Installation Of The ESC, FBL and RX DE-BURR THE SIDE FRAMES We recommend de-burring the edges of the carbon parts in areas where electrical wires run. ESC INSTALLATION The speed controller (ESC) is installed in the front of the helicopter. Figure 1: Show the ESC support.

  • Page 22: Chapter 11, Installation Of Flybarless Unit And Rx

    Chapter 11, Installation Of Flybarless Unit and RX BAG 9 FLYBARLESS CONTROL UNIT AND RX INSTALLATION Figures 1 shows an example of installation of the flybarless control unit. You can use short spacer H0727 ( Figure 2 ). You can use long spacer H0043 ( Figure 3 ). This is typical if you want to put RX satellite under the control unit. Socket Head Cap Screw M3x6mm (HC044-S)
  • Page 23 Chapter 12, Tail System BAG 10 Tail Pitch Slider Assembly Tail Blade Grip Assembly ..x3 Bearing 10x4mm (HC411-S) Tail Blade Grip Flanged Bearing (H0327BM-S) 12x3.5mm (HC418-S) Bearing 10x4mm Tail Pitch Slider 01 (HC411-S) (H0409BM-S) Spacer Socket Head Cap 8.1x 9.2x3.2mm Screw M2x6mm Tail Pitch Slider 02 (HC004-S)

  • Page 24: Chapter 12, Tail

    Chapter 12, Tail BAG 11, BAG 12 Bell Crank Lever Assembly Tail Side Plate Assembly Bell Crank Base (H0058BM-S) Tail Upper Case (H0360BM-S) Washer Socket Head Cap 4x0.5mm Screw M3x8mm (HC176-S) Tail Pin Tail Case Spacer (HC050-S) (H0264-S) (H0061-S) Flanged Bearing 7x3mm (HC402-S) Spacer...

  • Page 25: Tail Boom Assembly

    Chapter 12, Tail BAG 13 Tail Boom Assembly Yellow Boom 700 Havok Sport (H0988-S) DETAIL A Attaching H0082-S to the boom: Pre-assemble the two boom spacers H0082-S with the M3x20 socket set screw. Insert into the boom tube completely done up. Center the holes, then unscrew until there is contact with the walls Lock everything with the adhesive.
  • Page 26 Chapter 12, Tail BAG 14, BAG 15 Tail Boom Assembly Finishing Socket Head Cap Washer M3 Screw M3x12mm (H0007-S) (HC062-S) Socket Head Cap Finishing Screw M3x12mm Washer M3 (HC062-S) (H0007-S) Note: Before put plastic ball in threaded rod, please wait 12 hours after bonding Threaded Rod M2.5x40mm Threaded Rod M2.5x40mm (HC242-S)

  • Page 27: Chapter 12, Tail Servo Installation

    Chapter 12, Tail Servo Installation BAG 16 Tail Servo Assembly The distance between 15-16mm the axis and the ball must Uniball M2 be between 15-16 mm (H0064-S) Tail Servo Socket Head Cap Screw M2.5x12mm (HC026-S) Socket Head Cap Screw M2x6mm (HC004-S) Servo Spacer (H0075-S)

  • Page 28: Boom Assembly

    Chapter 13, Installation Of The Boom BAG 17 BOOM ASSEMBLY *Insert the tail boom assembly . *Lock the M8 nuts with the HA016 special tool supplied. *Firmly lock the lateral srews M3x12mm. Use Loctile for this screw and make sure you remain tight. *Assemble the H0038 carbon security plate .

  • Page 29: Chapter 13,Installation Of The Boom And Canopy

    Chapter 13,Installation Of the Boom and Canopy TAIL BELT TENSION *Check the proper assembly of the tail boom. *Check that the aluminum part of the tube is against the M3 stop screw. *Loosen the tail group by loosening the 4 M3 screws. *Install the belt onto the pulley, taking care to respect the direction of rotation (figure 1).

  • Page 30: Chapter 14, Battery

    Chapter 14, Battery BAG 18 BATTERIES Note: Using sandpaper, sand the slot where you insert the The battery tray system in the Goblin 700 is simple, but very effective. battery strap. This helps The battery should be attached to the tray (Part H0149) with heat shrink, tape or velcro. increase the life of the strap.

  • Page 31: Chapter 15, In Flight

    Chapter 15, In Flight BAG 19 OPERATIONS BEFORE FLIGHT *Set up the remote control and the flybarless system with utmost care. *It is advisable to test the correct settings of the remote and flybarless system without main blades or tail blades fitted. *Check that all wiring is isolated from the carbon/aluminum parts.

  • Page 32: Chapter 16, Maintenance

    Chapter 16, Maintenance ABOUT HPS3 The HPS3 head offers an independent dampening system for each blade grip, there are three dampening settings: A = Soft for smooth response. B = Medium. C = Firm for direct and precise response. D = Full Rigid. In the kit, there is the damper for direct and precise responce H0426-C You can find H0426-B in Bag 19.

  • Page 33: Chapter 17, Spare Parts

    Chapter 17, Spare Parts Battery Tray Frame Spacer Finishing Washer M3 Main Structure [H0002-S] [H0003-S] [H0007-S] [H0009-S] - 1 x CF Battery Tray. - 6 x Flat Head Cap Screws M2.5x5mm. - 3 x Frame Spacers. - 10 x Finishing Washers M3. - 1 x Main Structure.
  • Page 34 Chapter 17, Spare Parts Boom Spacer Servo Spacer Washer 3.1x 12x1.8mm 26T Tail Pulley [H0075-S] [H0078-S] [H0082-S] [H0103-S] - 1 x 25T Tail Pulley. - 1 x Set Screw M4x4mm. - 2 x Boom Spacer. - 6 x Socket Head Cap Screws M2x5mm.
  • Page 35 Chapter 17, Spare Parts 18T Pulley 19T Pulley 20T Pulley 21T Pulley [H0175-18-S] [H0175-19-S] [H0175-20-S] [H0175-21-S] - 1 x 19T Pulley. - 1 x 20T Pulley. - 1 x 21T Pulley. - 1 x 18T Pulley. - 1 x Set Screws M4x4mm. - 1 x Set Screws M4x4mm.
  • Page 36 Chapter 17, Spare Parts Spindle Main Linkage Tail Hub Tail Shaft [H0412-S] [H0417-S] [H0418-S] [H0419-S] - 2 x Spindle Shaft. - 1 x Tail Hub. - 2 x Pin 5mm. - 1 x Set Screw M4x6mm. - 4 x Head Cap Screw M2.5x6mm. - 3 x Head Cap Screws M3x8mm.
  • Page 37 Chapter 17, Spare Parts [HC002-S] [HC004-S] [HC008-S] [HC010-S] [HC018-S] [HC020-S] - 8 x Socket Head Cap - 8 x Socket Head Cap - 8 x Socket Head Cap - 8 x Socket Head Cap - 8 x Socket Head Cap - 8 x Socket Head Cap Screws M2x6mm.
  • Page 38 Chapter 17, Spare Parts [HC194-S] [HC200-S] [HC206-S] [HC212-S] [HC218-S] [HC230-S] - 5 x Shims - 8 x Washer - 8 x Metric Hex Nylon - 8 x Metric Hex Nylon - 8 x Metric Hex Nylon - 8 x Metric Hex Nylon Ø6.3xØ15x1mm.

  • Page 39: Upgrades And Accessories

    SAB HELI DIVISION Black Polo Shirt JR Servo Horn [HM025-S-M-L-XL-XXL] [HM027-S-M-L-XL-XXL] [HA050] - 4 x JR Servo Horn. - SAB HELI DIVISION New Black T-shirt. - SAB HELI DIVISION Black Polo Shirt. SAB HELI DIVISION Black Hoodies SAB Goblin 630/700/770/ [HM029-S-M-L-XL-XXL] [HM001,HM002,HM003]...
