Summary of Contents for InMotion SCV V3

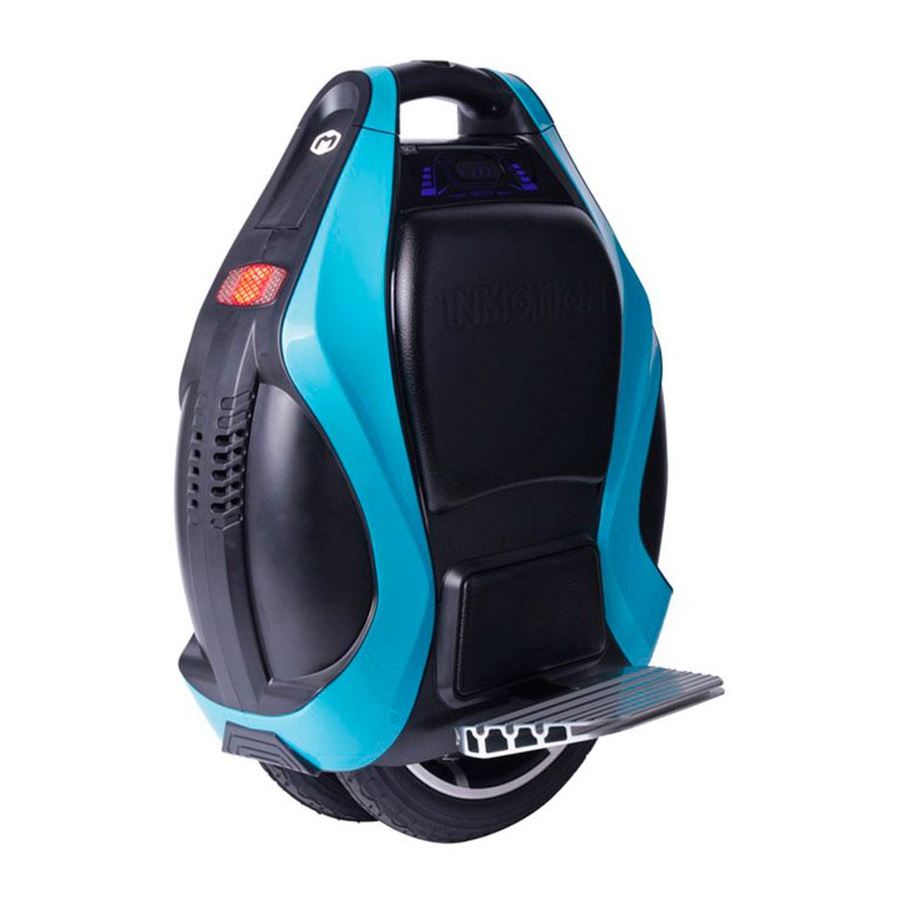

- Page 1 INMOTION SCV V3 INMOTION SCV V3 INSTRUCTIONS MANUAL...
-
Page 2: About This Manual
For your safety, please read this Manual carefully before you ride an INMOTION unicycle. Please also watch the instruction video carefully in order to get the correct instruction for riding the INMOTION unicycle. To help you to better enjoy riding the INMOTION unicycle, read and understand all the safety warnings and instructions listed in this Manual. - Page 3 2. Safety Instruction of the Product INMOTION unicycle is a product that is equipped with front and rear automatic self-balancing functions, and left and right manual balancing, which combine fun and balance. To avoid risks of danger, follow the instructions of this Manual. Physical harm or death may be caused due to falling, losing control, or collision should you not follow the instructions of this Manual.
-
Page 4: General Introduction
You can obtain the product serial number from the following places: the external packaging of the product, the warranty card of the product, and the main body of INMOTION unicycle (it is on the angular area of the upper surface of the unicycle when the handle is pulledup). - Page 5 Do not disassemble or modify INMOTION unicycle without permission, otherwise, it may result in irrepairable damages and harm to humanbody. 3.1. Components...
-
Page 6: Product Parameters
3.2. ProductParameters Item Specification Note ①This speed is measured under the condition of 75kg of Item Type INMOTIONSCVV3 (11.2 mph) ① 18 Km/h weight. Maximum Cruising Speed ②The maximum mileage is measured under the condition (12.5-15.5 miles) ② 20~25 Km Maximum Mileage of 25℃... - Page 7 3.3. Product Size Plan...
-
Page 8: Product Functions
4. Product Functions 4.1. Interactive Panel The interactive panel is the LED display interface that indicates the working condition of the unicycle on the main body. Icon Description Icon Description Light Icon: indicates the light is on Fault Icon, indicates that something is wrong and Unicycle must be reset Bluetooth Connection, constant light on Icon for Bluetooth speaker, constant... - Page 9 4.3. Data Bluetooth and Music Bluetooth The INMOTION unicycle is equipped with data Bluetooth 4.0 BLE plug and an interface for music Bluetooth 3.0. The user can use the former to connect the Bluetooth loudspeaker on the unicycle, or use the latter to communicate with the app on a mobile device.
-
Page 10: Voice Prompt
You can connect directly when the name of the device shows up. The preset name of the INMOTION unicycle Bluetooth 4.0 BLE is: V3-XXXXXXXX, among which, XXXXXXXX is the same as the music Bluetooth. The initial Bluetooth password is 000000. Only by entering the right Bluetooth password can you pair up with and use your app on a mobile device to control INMOTION unicycle.(Modification of the... - Page 11 Description Content of Language Description Content of Language Power-on Sound-dongdongdong Sleep Sound- wu Lock Sound-budong Unlock Sound- bugu Battery Low Low battery Sound- Low battery Charging Sound-budong ，please get off Sound- Charging Sound- waterdrop Overload, Please Overload Completed Get Off Light Sound-budong Light Off...
- Page 12 4.6. App for Mobile Devices The mobile device app is a specially-designed app for INMOTION unicycle users. It controls the unicycle, connects users with their INMOTION friends, publishes user experiences, and allows users to participate in INMOTION activities and buy...
- Page 13 For more detailed introduction of the app, please refer to the app itself, the help document, or download the instruction of the latest app from the INMOTION official website. The INMOTION unicycle connects with mobile devices via Bluetooth 4.0 BLE which is applicable to Android 4.3 or later versions, iPhone 4sandabove,iOS 7.0 and other new version of the system.
- Page 14 INMOTION unicycle. The following is a guide for beginners, especially first time users of the INMOTION unicycle, on how to correctly ride the unicycle. There are some important safety instructions that must be read before using the unicycle for the first time.
- Page 15 5.2. Power on Put your finger on the power icon of the touch panel. As a lighting arrow shows up and keeps rolling, slowly swipe the panel in the direction of the arrow and make sure your finger is touching the panel as you turn on the unicycle. The interactive panel is shown below.
-
Page 16: Steps For Beginners
If the touch button malfunctions, or if it cannot be shut down in an emergency, please tilt your unicycle twice within three seconds until you hear the sound “Be Careful” as the unicycle shuts down automatically. 5.4. Steps for Beginners Turn on the unicycle and use one hand to hold the unicycle. - Page 17 to change the direction when you move forward (as shown in the diagram). 5.5. Charge Plug the adapter into the rectangular socket on the unicycle (as shown in the picture). This socket can be found by sliding the socket cover in the direction the arrow shows. Push in when it is switched to the very end.
- Page 18 5.7. Over-speed Protection In order to avoid dangerous speeds, The INMOTION unicycle has a maximum speed. When the speed surpasses the maximum limit of 18km/h (11mph), the pedals will tilt up by 3-4° to allow the user to maintain the current speed. It is very difficult for the user to use self-weight to speed up on this basis.
-
Page 19: Maintenance
Improper storage of the INMOTION unicycle may result in the short battery life and other risks. Please store the INMOTION unicycle in a dry and moderate temperature indoor environment. If you do not use the INMOTION unicycle at least once a month charge monthly for best battery care. -
Page 20: Contact And Legal Information
7. Contact and legal information 7.1. Response to the problems Please contact us if you or someone around you has any trouble or suggestion during the INMOTION electric scooter use. We will thoughtfully listen your opinion and we will serve you with enthusiasm. -
Page 21: Product Maintenance
According to the right warranty policy and according to the Spanish legislation, the warranty of INMOTION IBERIA products lasts 2 years from the purchase date, except the battery period that will last 6 months and the wheel(s), which will be guaranteed just the first month after the purchase date. - Page 22 Warranty Pieces Period Observations Full body 2 years Elevator and pedal included (battery and intern van are not included). Battery 6 months lithium group Interior and 1 month Abrasions performed manually are excluded and compression accidental damage too. exterior van...
- Page 23 • Modification, alteration or deliberated substitution of the original contents in the bill or purchase justification. • Loss or absence of the purchase invoice. • Manipulation or reparation by people or agents not authorized by INMOTION IBERIA. •Manipulation or modification of the serial identifying number of the product without justified case.
- Page 24 Inmotioniberia.com. The customer must check the products immediately after its reception and then inform to INMOTION IBERIA in case there is something wrong. The client can send an email to rma@inmotioniberia.com or also call at the specified number above. The client is able to make any product complain or reclamation in-between the 14 natural days after the delivery.
- Page 25 Approved Certificate for Product This product has been examined and approved. This Warranty Card (only valid with the attached serial number by the manufacturer) and the receipt are valid proofs for maintenance. Please keep this Warranty Card with care. Date of Manufacture: Stamp of Quality Inspection:...
