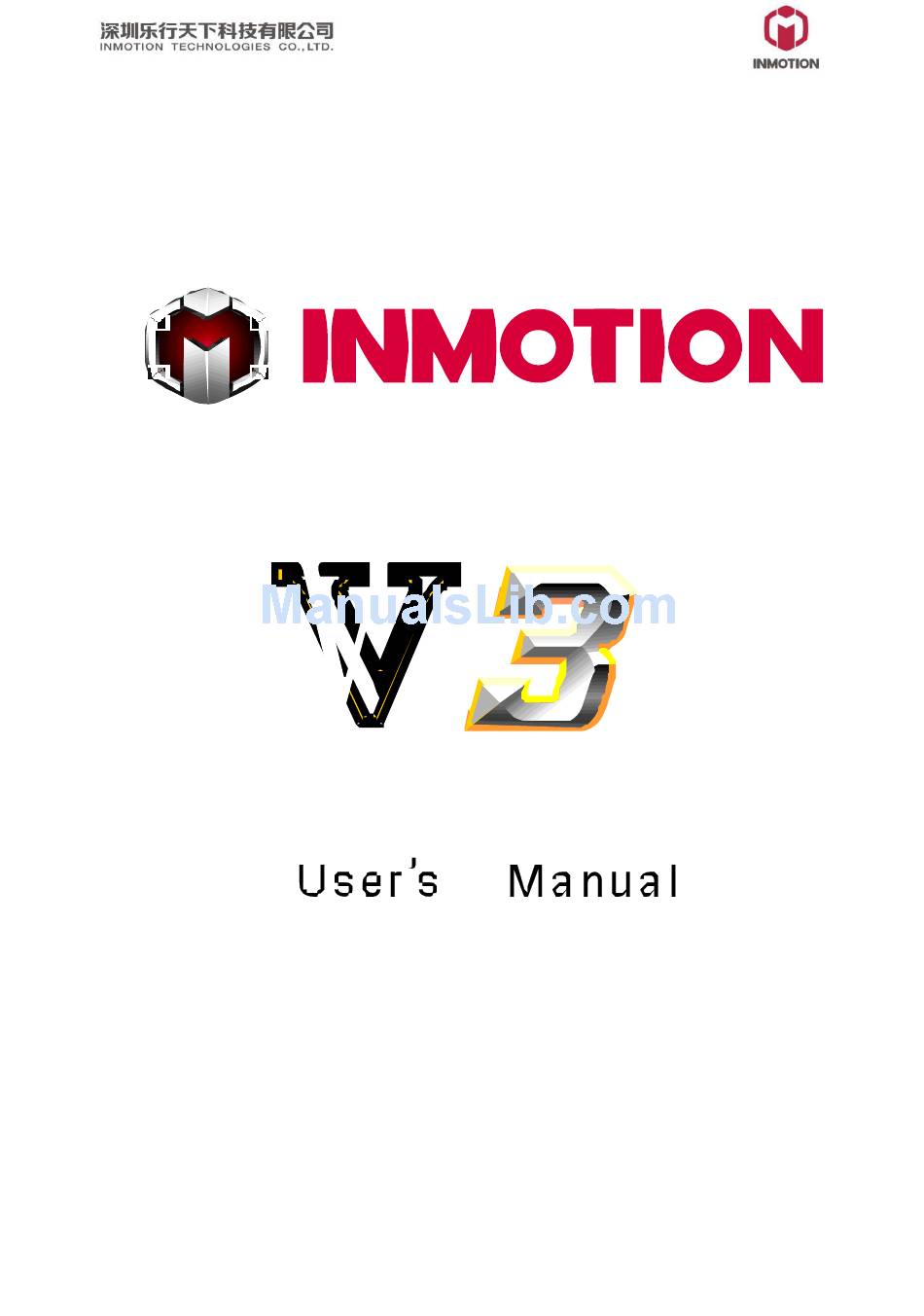

- Page 1 使用手册 FLOOR, BUILDING 8, TONGFUYU INDUSTRY CITY, XILI, NAN SHAN, SHEN ZHEN, CHINA 518055 Tel: 0755-25722469 Fax:0755-25727563 ...
- Page 2 1. Introduction INMOTION V3 is a self-balancing unicycle type SCV (Sensor Controlled Vehicle). It is stylish, fun and practical, integrated with a unique hidden draw-bar, auto-switch lights, a touch screen, a slide-to-open charging port and built-in high quality Bluetooth speakers. INMOTION V3 is easy to learn, safe to ride, practical to commute.
- Page 3 INMOTION V3 balances front and back, and stands by itself with its two tires. INMOTION V3 is a reliable product and it has gone through many rigid tests. Due to its new idea of driving, we still ask you to follow all the instructions in this manual and be careful with all the warnings and cautions.
- Page 4 Do not drive into water that is over 170 mm. Prohibition Do not go up and down stairs or spring off the ground with the INMOTION V3. Do not ride the INMOTION V3 on motor roads. Some local authorities forbid the use of Sensor Controlled Vehicles on public roads and sidewalks.
- Page 5 Tip: if the touch panel is not responding, or the system cannot be shut down in an emergent situation, please lay flat the INMOTINO V3 for 2 times in 3 seconds and you will hear “Please be careful”, then you can possibly shut down the system.
- Page 6 Power on the system and slide your finger from right end to left end (towards the opposite arrow direction), the lights on both sides will be illuminated in white. Roll the INMOTION V3 in a direction, the front light will illuminate in white with full brightness and the back light will turn into red.
- Page 7 powered on. Turn on Bluetooth on your cellphone, search and pair the Bluetooth signal of the INMOTION V3 (Figure 3.4). If the signals are successfully paired, you may play music through the INMOTION V3’s Hi-Fi loud speakers. Assist Mode Press down the draw-bar button, pull up the handle till the highest and then release the button.
- Page 8 Charge INMOTION V3 Slide to open the charging port to charge. If the INMOTION V3 is charging, the charging indicator on the Charger Adapter illuminates in red and the Battery Indicator Bars are rolling up and down. If the INMOTION V3 is fully charged, the charging indicator is in blue.
- Page 9 5.10 Water and Dust Proof V3 is rated IP55 for water and dust proof. It can maximally pass through 170 mm deep water. 5.11 Over Speed Protection When the speed is over 18 km/h (11 mph), the footboard will lean back at about 3~4°. The rider can continuously drive at the current speed.
- Page 10 The system will protect the battery from over discharging when it is powered off. You may wake the V3 by charging the battery, if the INMOTION V3 is still not awaken please contact your dealer for a diagnosis.
- Page 11 Adjust Footboard Please use a M8 screwdriver to adjust the tightness of the footboards if needed. Cleaning Please gently clean the INMOTION V3 cases with a piece of soft cloth with clear water or soap water. Warranty INMOTION provides below warranties for non-human made malfunctions and damages for INMOTION V3.
- Page 12 When you attempt the first use, please wear comfortable clothes and shoes. We strongly suggest the beginners to wear a helmet and other protections to avoid serious injuries. Please take the INMOTION V3 onto smooth roads in an open space and then start to learn. 8 Steps Hold the INMOTION V3 still and power it on.
- Page 13 pushing off the ground. Make sure that the INMOTION V3 would always be right in the middle of your legs and not go other directions. Keep your body straight up and get relaxed, look forward and naturally get on another foot.
- Page 14 INMOTION Customer Care Center: 4000-1000-12 +86 (0)755-8209-1768 FLOOR, BUILDING 8, TONGFUYU INDUSTRY CITY, XILI, NAN SHAN, SEN ZHEN, CHINA 518055 Tel: 0755-25722469 Fax: 0755-25727563 13 ...
- Page 15 8. Warranty Card Customer purchase information registration Customer name Serial Number Purchasing date Telephone E-mail Customer’s address Dealer’s Dealer’s Name telephone Dealer’s address FLOOR, BUILDING 8, TONGFUYU INDUSTRY CITY, XILI, NAN SHAN, SEN ZHEN, CHINA 518055 Tel: 0755-25722469 Fax: 0755-25727563 ...
- Page 16 This limited warranty term is the only applicable guarantee clause for the maintenance towards the INMOTION SCV and its spare parts. INMOTION does not endorse any other guarantee or implied guarantee beyond this limited warranty term. INMOTION assumes no responsibility for other commitments that you make with the third party.
- Page 17 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
