Summary of Contents for InMotion V11
- Page 1 Electric Unicycle User Manual Inmotion Technologies Co., Ltd. www.inmotionworld.com...
-
Page 3: Table Of Contents
Contents 1. About this manual 2. Product Overview 2.1 Serial Number 2.2 Packing list 2.3 Components 2.4 Features and Functions 2.5 Dimension 2.6 Specification 3. How to use 3.1 Refill the Air-spring 3.2 Install the App 3.3 How to ride 4. -
Page 4: About This Manual

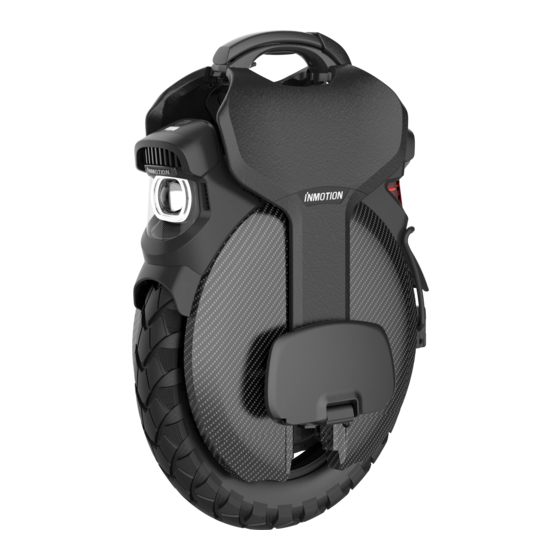

V11 is an electric unicycle with 18 inch wheels, powerful motor, intelligent BMS, dual-chamber air-spring suspension and other remarkable features and functions, (hereinafter referred to as V11 unicycle). Based on the principle of dynamic balance, the change of the unicycle's posture could be detected by the built-in gyroscope and acceleration sensor. -
Page 5: Components
Power on/off: Long press the button to power on/off. Headlight: Under the status of power on, one more click the button to light on/off. The headlight could be light off on INMOTION App. Taillight: Always on while riding, and blink when braking. - Page 6 Charging: The original charger is DC 84V/2.5A. The indicator of Trolley Handle: Press the unlock button under the Trolley the charger is red/green, mean on-charging/charging handle to unfold it; when the Trolley handle is not in use, hold completed. With two chargers working together, the charging the lock button under the Trolley handle to fold.
-
Page 7: Dimension
2.5 Dimension... -
Page 8: Specification
Specification Specification Parameter Size Dimension 500*180*675mm Max.of Payload 120kg Weight Net weight Approx. 28kg 16+ Years Requirement to rider Height 120 ～200cm Max.of Slope 35° Working Temperature -10°C~+45°C Performance Storage Temperature -20°C~+45°C IP Rating IP55 Rating Voltage (VDC) Max. of Capacity 1500Wh Battery Capacity Equalization/overcharge/under-voltage... -
Page 9: How To Use
3.2 Install the App Inmotion V11 unicycle supports Bluetooth 5.0 LE, the BLE ID is: V11-XXXXXXXX, where XXXXXXXX is the last 8 digits of S/N. Install Inmotion App on your mobile device (iOS 8.0 and above or Android 4.4 and above), and follow the prompts to connect your unicycle. -
Page 10: How To Ride
3.3 How to ride Before driving, please take all safety measures, such as: wearing sports clothes, helmets, knee pads, elbow pads and other protective tools. 1. Put one foot on the pedal, glide 2. One foot on pedal, keep your body 3. -
Page 11: Care And Maintenance
For details, please refer to the remaining mileage displayed in the App. Tips: The battery of V11 will be used up after about 120 to 180 days in standby status even it was fully charged. If the battery is not recharged in time, the battery may be damaged by over-discharged and this will be unrecoverable. -
Page 12: Cleaning And Reminding
•Wipe the outer case of V11 by a soft cloth with soapy water or clean water. It is forbidden to wash V11 by using a high-pressure water gun. •The IP rating of V11 is IP55, do not immerse the V11 into water, some permanent damage would caused by this. - Page 13 13. Due to different battery conditions and environmental conditions, after fully charged (5 grids of remaining power displayed), the standby time of V11 is up to 180 days. While 1 grid remaining power displayed, the maximum standby time is 30 days. Please pay attention to the remaining power, to prevent irreversible damage to the battery caused by untimely recharging.
-
Page 14: Legal Notices
7. For the security of your personal information, we will take reasonable and safe measures to protect it from unauthorized disclosure and use. And you agree that Inmotion will decide how long to store and retain your personal information according to the time required for the specified... -
Page 15: Intellectual Property Statement
4. This legal statement constitutes an inseparable statutory part of Inmotion's products. 5. You can choose to accept all the terms of this legal statement and use Lexing Tianxia products. If you use Inmotion products, you are deemed to agree to accept all the terms of this legal statement and bear any possible risks and responsibilities. - Page 16 Scan the QR Code to Download Scan the QR Code to Join Inmotion App Inmotion Telegram Group Version Number:V1.1...
