InMotion SCV V3 User Manual

Hide thumbs Also See for SCV V3:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
1 / 33

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCV V3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for InMotion SCV V3

Summary of Contents for InMotion SCV V3

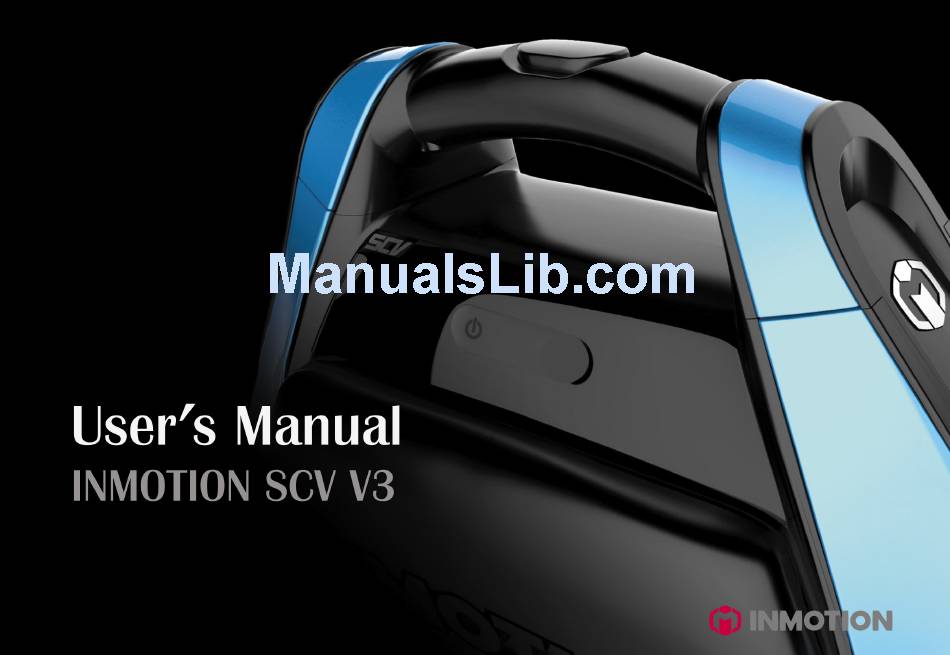

  • Page 1 1 / 33...
  • Page 2 2 / 33...

  • Page 3: Table Of Contents

    4.5. Pull-up Handle and Energy-Saving Mode ........................... 15 4.6. App for Mobile Devices ................................15 4.7. INMOTION SCV V3 Series ............................... 17 5. Riding the INMOTION SCV V3 ..............................18 5.1. Preparation ....................................18 5.2. Power on ..................................... 19 3 / 33...
  • Page 4 5.3. Sleep and Power Off ................................... 19 5.4. Steps for Beginners ..................................20 5.5. Charge ......................................21 5.6. Reset ......................................21 5.7. Over-speed Protection ................................. 22 5.8. Tilt and Fall Protection ................................22 5.9. Over-discharging Protection ................................ 22 6. Maintenance ....................................23 6.1.

  • Page 5: Overview

    For your safety, please read this Manual carefully before you ride an INMOTION SCV. Please also watch the instruction video carefully in order to get the correct instruction for riding the INMOTION SCV. To help you to better enjoy riding the INMOTION SCV, read and understand all the safety warnings and instructions listed in this Manual.

  • Page 6: Safety Instruction Of The Product

    Please wear helmet and other protective garments when riding the INMOTION SCV V3;  Do not ride the INMOTION SCV V3 on slopes slanting over 20 degrees, and do not accelerate or decelerate too hush, Do  not suddenly brake;...

  • Page 7: General Introduction

    You can obtain the product serial number from the following places: the external packaging of the product, the warranty card of the product, and the main body of INMOTION SCV V3 (it is on the angular area of the upper surface of the V3 when the handle is pulled up).

  • Page 8: Components

    Do not disassemble or modify INMOTION SCV V3 without permission, otherwise, it may result in irrepairable damages and  harm to human body. 3.3. Components 8 / 33...

  • Page 9: Product Parameters

    3.4. Product Parameters Item Specification Note INMOTION SCV V3 Item Type ① This speed is measured under the condition of 75kg of weight in the temperature of 25 ℃. Maximum Cruising Speed 18 km/h (11.2 mph) ① ② The maximum mileage is measured under the...

  • Page 10: Product Size Plan

    3.5. Product Size Plan 10 / 33...

  • Page 11: Product Functions

    4. Product Functions 4.1. Interactive Panel The interactive panel is the LED display interface that indicates the working condition of the V3 on the main body. Icon Description Icon Description Light Icon: Error Icon, indicates that V3 need to be indicates the head/tail light is on fixed Bluetooth Connection, constant light on...

  • Page 12: Head/Tail Light

    Data Bluetooth and Music Bluetooth The INMOTION SCV V3 is equipped with Bluetooth 4.0 BLE connection and an interface for music Bluetooth 3.0. The user can use the former to connect the Bluetooth speaker on the V3, or use the latter to communicate with the app on a mobile device.

  • Page 13: Voice Prompt

    You can connect directly when the name of the device shows up. The preset name of the INMOTION SCV V3 Bluetooth 4.0 BLE is: V3-XXXXXXXX, among which, XXXXXXXX is the same as the audio Bluetooth. The initial Bluetooth password is 000000. Only by entering the right Bluetooth password can you pair up with and use your app on a mobile device to control INMOTION SCV V3.
  • Page 14 Description Content of Language Description Content of Language Power-on Sound-dongdongdong Sleep Sound- wu Lock Sound-budong Unlock Sound- bugu Battery Low Low battery Sound- Low battery Charging Sound-budong ，please get off Charging Sound- water drop Overload, Please Sound- Overload Completed Get Off Light Sound-budong Light Off...

  • Page 15: Pull-Up Handle And Energy-Saving Mode

    App for Mobile Devices The mobile device app is a specially-designed app for INMOTION SCV V3 users. It controls the V3, connects users with their INMOTION friends, uploads user experiences, and allows users to participate in INMOTION activities and buy INMOTION accessories.
  • Page 16 For more detailed introduction of the app, please refer to the app, the help document, or download the instruction of the latest app from the INMOTION official website. The INMOTION SCV V3 connects with mobile devices via BlueTooth 4.0 BLE which is applicable to Android 4.3 or above, iOS ...

  • Page 17: Inmotion Scv V3 Series

    4.7. INMOTION SCV V3 Series . INMOTION SCV V3 have three-Model, the tabular below state the difference between these three models. Function/Model V3Pro Protection Pad High-elasticity cushion High-elasticity cushion Regular pad Battery Capacity 144WH 288WH 144WH Intelligent -lighting Switch Shell-Craft...

  • Page 18: Riding The Inmotion Scv V3

    INMOTION SCV V3, on how to correctly ride the V3. There are some important safety instructions that must be read before using the V3 for the first time. Please check if all the components of the INMOTION SCV V3 are fixed in place and without any damage before riding it; ...

  • Page 19: Power On

    5.2. Power on Put your finger on the power icon of the touch panel. As a lighting arrow shows up and keeps rolling, slowly swipe the panel in the direction of the arrow and make sure your finger is touching the panel as you turn on the V3. The interactive panel is shown below.

  • Page 20: Steps For Beginners

    If the touch button malfunctions, or if it cannot be shut down in an emergency, please tilt your V3 twice within three seconds until  you hear the sound “Be Careful” as the V3 shuts down automatically. 5.4. Steps for Beginners Turn on the V3 and use one hand to hold the V3.

  • Page 21: Charge

    5.5. Charge Plug the adapter into the rectangular socket on the V3 (as shown in the picture). This socket can be found by sliding the socket cover in the direction the arrow shows. Push in when it is switched to the very end. A red indicator light and sound effect notifies you that the charging plug is in the correct position.

  • Page 22: Over-Speed Protection

    Over-speed Protection In order to avoid dangerous driving speeds, The INMOTION SCV V3 has a maximum speed. When the speed surpasses the maximum limit of 18km/h (11mph), the pedals will tilt up by 3-4° to allow the user to maintain the current speed. It is very difficult for the user to use self-weight to speed up on this basis.

  • Page 23: Maintenance

    Please use water or soapy water with a soft cloth to wipe clean the shell of the V3. Please do not use a high-pressure water gun to clean the V3. The INMOTION SCV V3 is resistant to water splashes and dust and has an IP55 certification. Do not soak the V3 in water, which may permanently damage the V3.

  • Page 24: Contact Information And Legal Information

    Please do not ride the INMOTION SCV V3 on any roads for public transportation. In some countries and regions, the INMOTION SCV V3 is not allowed to be used on public roads. Please refer to the local authority or the authorized retailers and INMOTION service departments for more information.

  • Page 25: Warranty

    After purchasing our product, please fill in the Warranty Card with your accurate and complete personal information and do not forget to keep your receipt. In order to provide you with our quality services, Shenzhen INMOTION Technology Co., Ltd promises you the following: Scope of Services We implement the 3 Rules of Serving stipulated by the state, and provide charge-free repair, change, and return services for products that match our maintenance conditions (limited to products that are purchased in mainland China).
  • Page 26 Damage due to noncompliance with the manual when assembling or using the product;  When the serial number is deleted or changed;  The serial number on the warranty card and the type number on the product do not match; ...
  • Page 27 Shenzhen INMOTION Technology Co., Ltd. bears the obligation and responsibility for free maintenance or replacement of the product and its accessories and parts within the warranty period. Shenzhen INMOTION Technology Co., Ltd. does not bear (or entrust others to bear) any obligations or responsibilities, including but not limited to losses due to delay of work, property losses, and other losses.

  • Page 28: Warranty Card

    Warranty Card Registration Information of the Customer Name SN Serial Number Date Phone E-mail Address Address Contact Name of Retailer Information/ Phone Address of the Retailer 28 / 33...
  • Page 29 Maintenance Record Signatur e of the Date Description Settlement Note Technici 29 / 33...
  • Page 30 Signatur e of the Date Description Settlement Note Technici Note: Please take the Warranty Card, Receipt, and the main body of the product, the adapter, and the lithium battery module with you for repair. 30 / 33...

  • Page 31: Approved Certificate For Product

    9. Approved Certificate for Product This product has been examined and approved. This Warranty Card (only valid with the attached serial number by the manufacturer) and the receipt are valid proofs for maintenance. Please keep this Warranty Card with care. Date of Manufacture: Stamp of Quality Inspection: 31 / 33...
  • Page 32 32 / 33...
  • Page 33 33 / 33...
