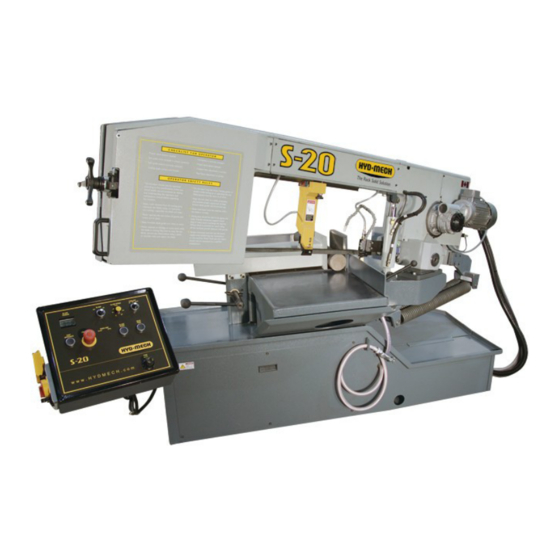

Hyd-Mech S20 SERIES III Manual
  1. Manuals
  2. Brands
  3. Hyd-Mech Manuals
  4. Saw
  5. S20 SERIES III
  6. Manual

Hyd-Mech S20 SERIES III Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

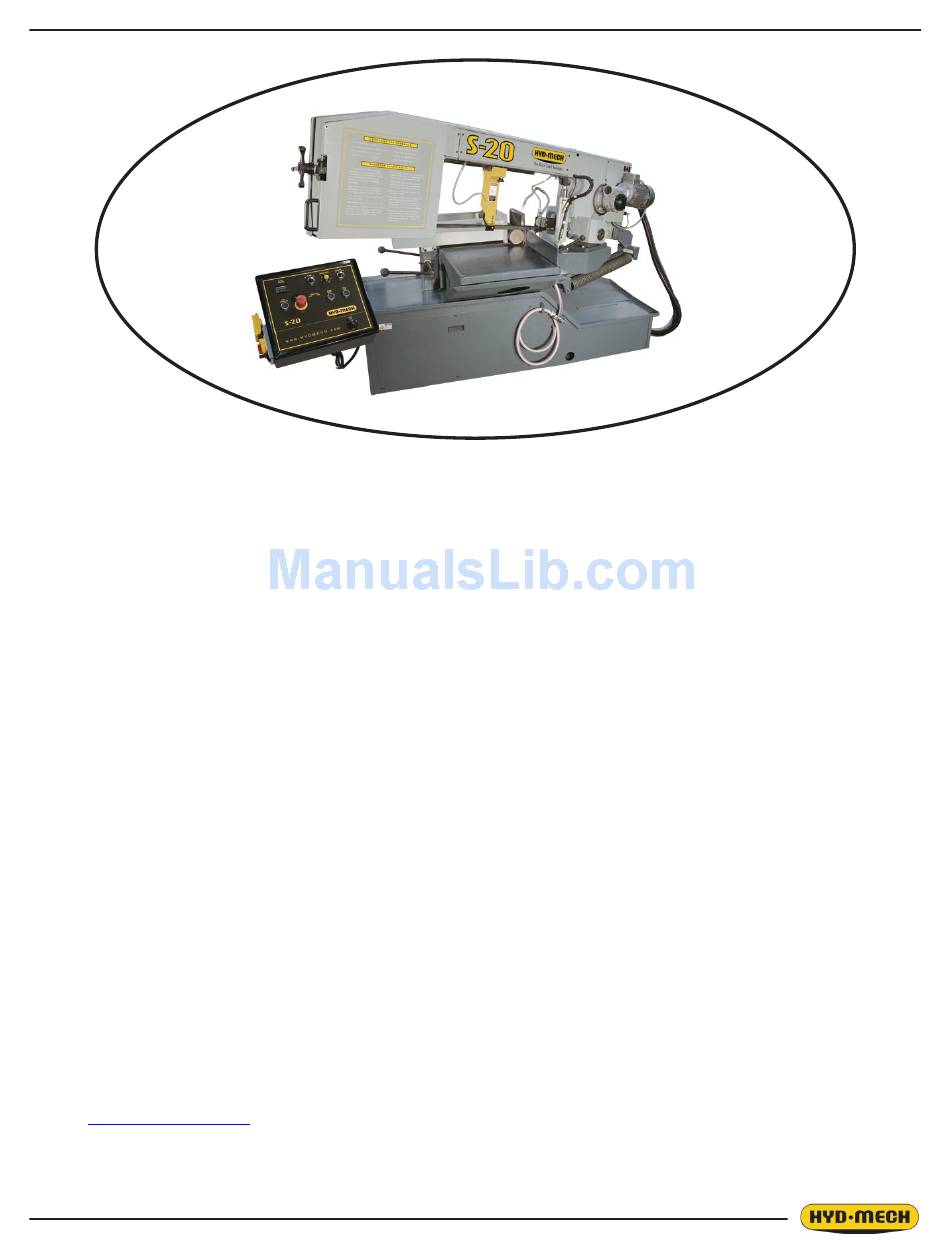

S20 SERIES III
393289
REV B
Thank you,
On behalf of everyone at HYD·MECH Group Limited, I would like to thank and congratulate you on your decision to pur-
chase a HYD·MECH bandsaw.
Your new machine is now ready to play a key role in increasing the efficiency of your operation, helping you to reduce cost
while boosting quality and productivity.
To ensure you are maximizing the power and versatility of your new HYD·MECH bandsaw, please take the time to famil-
iarize yourself and your employees with the correct operation and maintenance procedures as outlined in this manual.
We sincerely appreciate the confidence you have demonstrated in purchasing our product and look forward to building a
long and mutually beneficial relationship.
Thank you
Hyd·Mech Group Limited
P.O. Box 030, 079 Parkinson Road
Woodstock, Ontario, N4S 8A4
Phone : (59) 539-634
Service : -877-237-094
Sales : -877-276-SAWS (7297)
Fax : (59) 539-526
info@hydmech.com
e-mail :


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S20 SERIES III and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyd-Mech S20 SERIES III

Summary of Contents for Hyd-Mech S20 SERIES III

  • Page 1 S20 SERIES III 393289 REV B Thank you, On behalf of everyone at HYD·MECH Group Limited, I would like to thank and congratulate you on your decision to pur- chase a HYD·MECH bandsaw. Your new machine is now ready to play a key role in increasing the efficiency of your operation, helping you to reduce cost while boosting quality and productivity.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION 0 - SAFETY INSTRUCTIONS SUMMARY ............................0.1 BASIC RULES ..........................0.4 RESPONSIBILITIES OF THE OWNER ...................0.5 RESPONSIBILITIES OF THE OPERATOR AND MAINTENANCE PERSONNEL ......0.6 SECTION 1 INSTALLATION LIFTING MACHINE ..........................1.1 FOUNDATION, LEVELLING AND ANCHORING ................1.2 WIRING CONNECTIONS .........................1.2 HYDRAULIC OIL ..........................1.3 CUTTING FLUID ..........................1.3 SECTION 2 –...
  • Page 4 FOR MECHANICAL ASSEMBLY DRAWINGS SEE PDF ON ATTACHED CD ......6.1 SECTION - 7 OPTIONS FOR OPTIONAL ASSEMBLY DRAWINGS SEE PDF ON ATTACHED CD ........7.1 SECTION 8 - SPECIFICATIONS S20 SERIES III BANDSAW SPECIFICATION LIST ................8.1 S20 SERIES III LAYOUT .........................8.2 SECTION 9 - WARRANTY WARRANTY .............................9.1...

  • Page 5: Section 0 - Safety Instructions

    SECTION 0 - SAFETY INSTRUCTIONS SUMMARY All persons operating this machine must have read and understood all of the following sections of this Manual: Section 0 SAFETY Section 2 OPERATING INSTRUCTIONS However, as a memory aid, the following is a summary of the Safety Section. Put Safety First Mandatory Information –...
  • Page 6 FOREWORD Put Safety First! This Safety Section contains important information to help you work safely with your machine and describes the dangers inherent in our machines. Some of these dangers are obvious, while others are less evident. It really is important to PUT SAFETY FIRST. Make it a habit to consider the hazards associated with any action BEFORE you do it.
  • Page 7 Signatures Everyone involved in operation of this machine must sign below to confirm that: I have read and understood all parts of Section 0 – Safety, and Section 2 – Operating Instructions. Name Date Signature Everyone involved in the installation, inspection, maintenance, and repair of this machine must sign below to confirm that: I have read and understood all parts of this Operation and Maintenance Manual.

  • Page 8: Basic Rules

    Manual. Hyd-Mech Group cannot accept any liability for personal injury or property damage due to operator errors or non-compliance with the Safety and Operating Instructions contained in this Manual.

  • Page 9: Responsibilities Of The Owner

    Responsibilities of the owner Organization of work This Operation and Maintenance Manual must always be kept near the machine so that it is accessible to all concerned. The general, statutory and other legal regulations on accident prevention and environmental protection must also be observed, in addition to the Manual material.

  • Page 10: Responsibilities Of The Operator And Maintenance Personnel

    Responsibilities of the operator and maintenance personnel Safety equipment All machines are delivered with safety equipment that must not be removed or bypassed during operation. The correct functioning of safety equipment on the machine must be checked: • at the start of every shift. •...
  • Page 11 Gloves Experience has shown that careless use of gloves around machinery is a major factor in serious hand injuries. Gloves should not be worn when operating or adjusting the machine, except: Wear protective gloves when handling bandsaw blades at blade changes. Gloves may be worn when handling work pieces, only if the machine is in Manual Mode and the bandsaw blade is not running.
  • Page 12 On Hyd-Mech machines the Master Disconnect Switch will be of one of three types: • Rotary switch mounted in electrical control cabinet door and inter-locked with door •...

  • Page 13: Section 1 Installation

    • Coolant tank emptied The S20 Series III may be lifted from the FRONT with a forklift, which has a minimum capacity of 4500 lbs (2040 kg) and a fork length of 72” (830mm). The S20 Series III is shrink-wrapped for shipping from our plant. Remove wrapping from the saw and dispose safely.

  • Page 14: Foundation, Levelling And Anchoring

    Check that there is no sign of shipping damage to the electrical conduits, cords or hydraulic hoses. As supplied, the S20 Series III is built to run on three phase AC Voltage, as indicated on the machine serial plate and volt- age label.

  • Page 15: Hydraulic Oil

    CUTTING FLUID The S20 series III uses pump and reservoir to circulate necessary cutting fluid to the blade for maximum blade life. Your blade supplier will be able to provide information about cutting fluid products that are available for your needs.

  • Page 17: Section 2 - Operating Instructions

    SECTION 2 – OPERATING INSTRUCTIONS OPERATOR CONTROL PANEL The operator control panel provides the operator with all the controls necessary to operate the saw after the cutting angle has been set and the stock has been loaded and secured. All of the electrical functions and Feed Rate setting are oper- ated from the control panel.

  • Page 18: Operator Panel Controls

    Operator Panel Controls SWITCH FUNCTION Pressing the red EMERGENCY STOP button will turn OFF all machine functions. EMERGENCY STOP To operate machine after emergency stop the EMERGENCY STOP knob has to be released. BUTTON To release EMERGENCY STOP turn knob clockwise. This switch has three positions: AUTO, OFF, and ON.

  • Page 19: Vise Control

    MECHANICAL CONTROLS VISE CONTROL The material clamping vise is a cam operated, double handle locking vise. The saw operator can push the vise handle to close the jaw on the material and then lock it from either side of the saw. The handles have two positions, forward toward the stock to unlock the vise and away from the stock to lock.

  • Page 20: Guide Arm Positioning

    GUIDE ARM POSITIONING The S20 Series III idler side guide arm is adjustable to accommodate varying material widths. The guide arm should be adjusted as close to the material as possible while still allowing it to pass. This process of matching the guide arm spacing to the material size is important to optimize blade life and ensure straightness of the cut.

  • Page 21: Blade Basics

    Variable pitch (following pages), bi-metal blades (like the ¾ or 4/6 bi-metal blade supplied with the Hyd-Mech machine) last much longer, cut faster and more accurately than the conventional carbon steel blades. In order to take advantage of the superiority of bi-metal blades, it is critical to properly “break in” a new blade. This is accomplished by taking two or three cuts through solid four or five-inch diameter mild steel at an extremely slow feed rate.

  • Page 22: Mist Coolant

    DETERMINE OPTIMUM BLADE PITCH – TEETH PER INCH (T.P.I.) Selecting a blade with proper tooth pitch is important in order to achieve optimal cutting rates and good blade life. For cutting narrow or thin wall structural materials, a fine blade with many teeth per inch (T.P.I.) is recom- mended.

  • Page 23: Work Stop

    WORK STOP The work stop is used to set a consistent cut length from 0 to 34 inches. The photo shows the stop at a short length, which is adjusted with one or both of the locking handles. The bar with the actual stop attached to it can be removed, turned 80 degrees end for end, and inserted for longer lengths.

  • Page 25: Section 3 - Maintenance And Troubleshooting

    SECTION 3 - MAINTENANCE and TROUBLESHOOTING BLADE CHANGING PROCEDURE NOTE: Wear gloves for protection from the sharp blade. . Open the Wheels door by unscrewing the two knobs. 2. Loosen the Blade Tensioner by turning counter clockwise. 3. Open the blade guard at idler guide arm by undoing the mounting screws and removing it as illustrated below...
  • Page 26 4. Remove the worn blade by sliding it off the wheels and out off both guide blocks 5. Your new blade will be in a coil. While wearing gloves, hold the blade away from yourself; twist the blade to uncoil it.

  • Page 27: Blade Tracking Adustment

    9. With the blade in place, turn the tensioner handle clockwise until Bade Tension Display shows required value. Recommended blade tension is 250 - 350 kg. If blade is under tensioned the blade motor will not start 0. Replace the blade cover and close wheels door. .

  • Page 28: Blade Guide Adjustment

    Drive Wheel Adjustment The Drive Wheel adjustment is closely linked to adjustment of the Idler Wheel. The purpose of the adjustment is to ensure that the back of the blade remains about .040-.080” away from the wheel flange during rotation. .

  • Page 29: Carbide Replacement

    CARBIDE REPLACEMENT The blade guide blocks are equipped with one top carbide and two side carbide inserts each. The working life of carbide guides is practically the same as that of the machine itself. However, if required they can be replaced by removing the plate fixing screw as shown.
  • Page 30 4. If the blade touches the square at the bottom loosen the top fixing screw “A” and tighten screws “B” the same amount until the square edge contacts the blade uniformly along the whole blade width. If contact is at the top of the square, loosen the bottom fixing screw “A”...
  • Page 31 As shown, there are two springs on socket head screws holding the brush assembly against the blade. There is also an adjusting stop socket set screw A with a hex nut C on it. This adjusting set screw works as a stop determining the brush position in respect to the blade.

  • Page 32: Head Down Limit Switch

    HEAD DOWN LIMIT SWITCH The Head down limit switch operates to cut power to the blade motor and the coolant pump motor when the Head has de- scended to the bottom of its travel. The Head is adjusted so that the blade will descend slightly past the level of the table wear strip.

  • Page 33: 90 And 30 Degree Stop Adjustment

    GEARBOX LUBRICATION The machine is equiped with a worm gear which is permanently lubricated and therefore manitenance free. The box has no filler cap, level checker and drain, as it already contains the correct quantity of synthetic oil, guaranteeing perpetual lubrication of the crown and worm gear.

  • Page 34: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE PROBLEM CAUSE AND SOLUTION Carbide guide adjustment incorrect (adjust) Feed rate excessive (reduce) Cutting out of square (vertically) Blade worn (replace) Guide arms too far apart Blade pitch incorrect 90 Degree stop not set correctly (adjust) Stock not square in vise (reset material) Cutting out of square (horizontally) Angle pointer out of adjustment Stock is not secure in the vise (reset vise)
  • Page 35 Lift head off limit switch Control fuse blown Blade will not start Turn Emergency button Check if proper blade tension Check safety door interlock switches Machine stops before cut is completed or runs on after Adjust head down limit switch bolt cut is completed 3....

  • Page 37: Section 4 - Electrical

    SECTION 4 - ELECTRICAL FOR ELECTRICAL SCHEMATICS AND COMPONENTS PARTS LISTS SEE PDF ON ATTACHED CD 240VAC THE FUSE RATING FOR THIS BANDSAW ARE: F & F2 =  AMP FAST. F3, F4 & F5 = 0.5 AMP TIME DELAY F6 = 5 AMP TIME DELAY 480VAC THE FUSE RATING FOR THIS BANDSAW ARE:...

  • Page 39: Section 5 - Hydraulic

    SECTION 5 - HYDRAULIC FOR HYDRAULIC SCHEMATICS AND PLUMBING DIAGRAMS SEE PDF ON ATTACHED CD.

  • Page 41: Section 6 - Mechanical Assemblies

    SECTION 6 - MECHANICAL ASSEMBLIES FOR MECHANICAL ASSEMBLY DRAWINGS SEE PDF ON ATTACHED CD...

  • Page 43: Section - 7 Options

    SECTION - 7 OPTIONS FOR OPTIONAL ASSEMBLY DRAWINGS SEE PDF ON ATTACHED CD...

  • Page 45: Section 8 - Specifications

    SECTION 8 - SPECIFICATIONS S20 Series III Bandsaw Specification List rectangular 3” high x 8” wide Capacity - 90º round 3” dia rectangular 3” high x 0.9” wide Capacity - 45º round 2” dia rectangular 3” high x 7.3” wide Capacity - 60º...

  • Page 46: S20 Series Iii Layout

    S20 Series III Layout...
  • Page 47 S20 Series III Foot Print...

  • Page 49: Section 9 - Warranty

    MOTOR, GEARBOX, PUMP, ELECTRIC COMPONENTS, VALVES, HOSES, FITTINGS, and any other items used in the manufacture of the S20 Series III, but not originally manufactured by Hyd·Mech are subject to the original manufacturer’s warranty. Hyd·Mech will provide such assistance and information as is necessary and available to facilitate the user’s claim to such other manufacturer.
