Chapter 5: Installing the ST4000+

Attaching the pedestal bracket

Note: If your wheel is bulkhead or box pedestal mounted, you will
need to obtain a bulkhead fitting kit (part number E15017) from your
Raymarine dealer. Fitting instructions are supplied with the kit.

Motor tube location

Depending on the design of your pedestal and any surrounding
obstructions, you can mount the wheel drive in one of two ways:
•
•
Select the appropriate slot so the motor tube is clear of obstructions.
CAUTION:
If you use slot 2 and you have a pedestal-mounted compass, the
drive motor may affect compass readings.

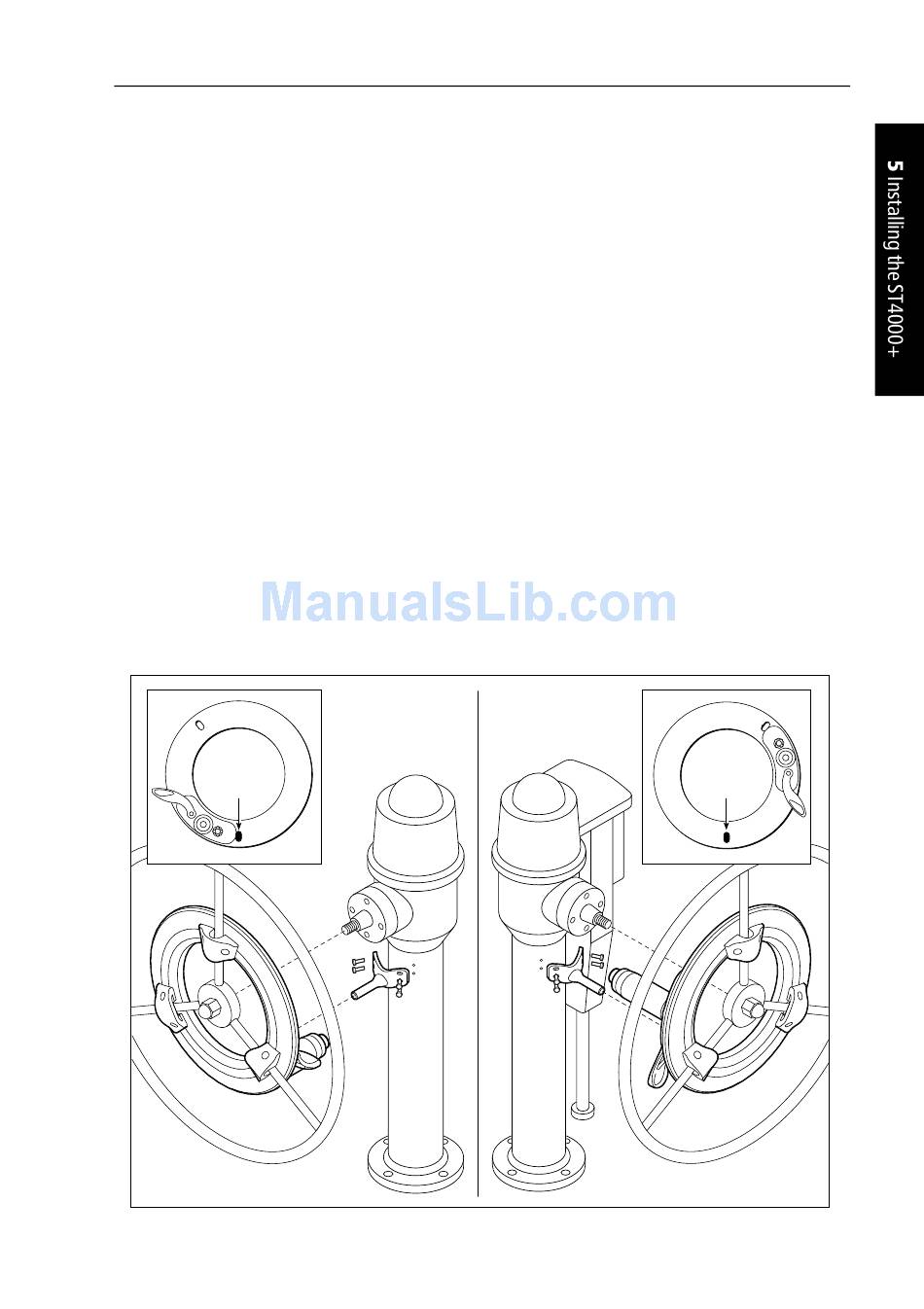

Slot 1 installation: the standard position uses slot 1 on the back of
the wheel drive (the slot closest to the motor tube) so the motor
tube is at the bottom to the right of the pedestal
Slot 2 installation: the alternative installation uses slot 2 to
position the motor tube at the top to the left of the pedestal
75
