4000 Mk2 Wheel Drive
4000 Mk2 Wheel Drive
Service Manual
Document Number: 83158-1
Date: October 2001
ST4000+ Wheel Pilot System
(including compass and control unit)
E12053, ST4000+ Wheel Pilot System
4000 Mk2 Wheel Drive only

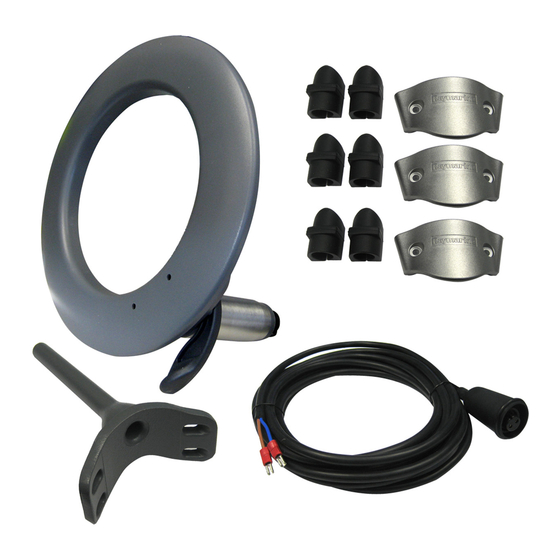

E12093, 4000 Mk2 Wheel Drive Unit
WARNING:
CE Marking of Equipment/Replacement Parts
If the Raymarine equipment under repair, test, calibration, installation or setting to work carries the European CE mark, only
parts and components supplied or approved for such use by Raymarine should be used in order to maintain compliance with
the relevant CE requirements.
Incorporation, use or attachment, by any means, of parts or components not supplied for or not approved for such use by
Raymarine or, if supplied or approved for use by Raymarine, not properly fitted in accordance with instructions published,
provided or recommended by Raymarine, may cause the equipment to malfunction and, in particular, to become unsafe or to
no longer meet the relevant CE requirements. In these circumstances, Raymarine excludes liability to the fullest extent
permissible in law for any loss or damage including any liability for its contribution to such loss or damage by its negligent
acts or omissions.
4000 Mk2 Wheel Drive Service Manual 83158-1 1
