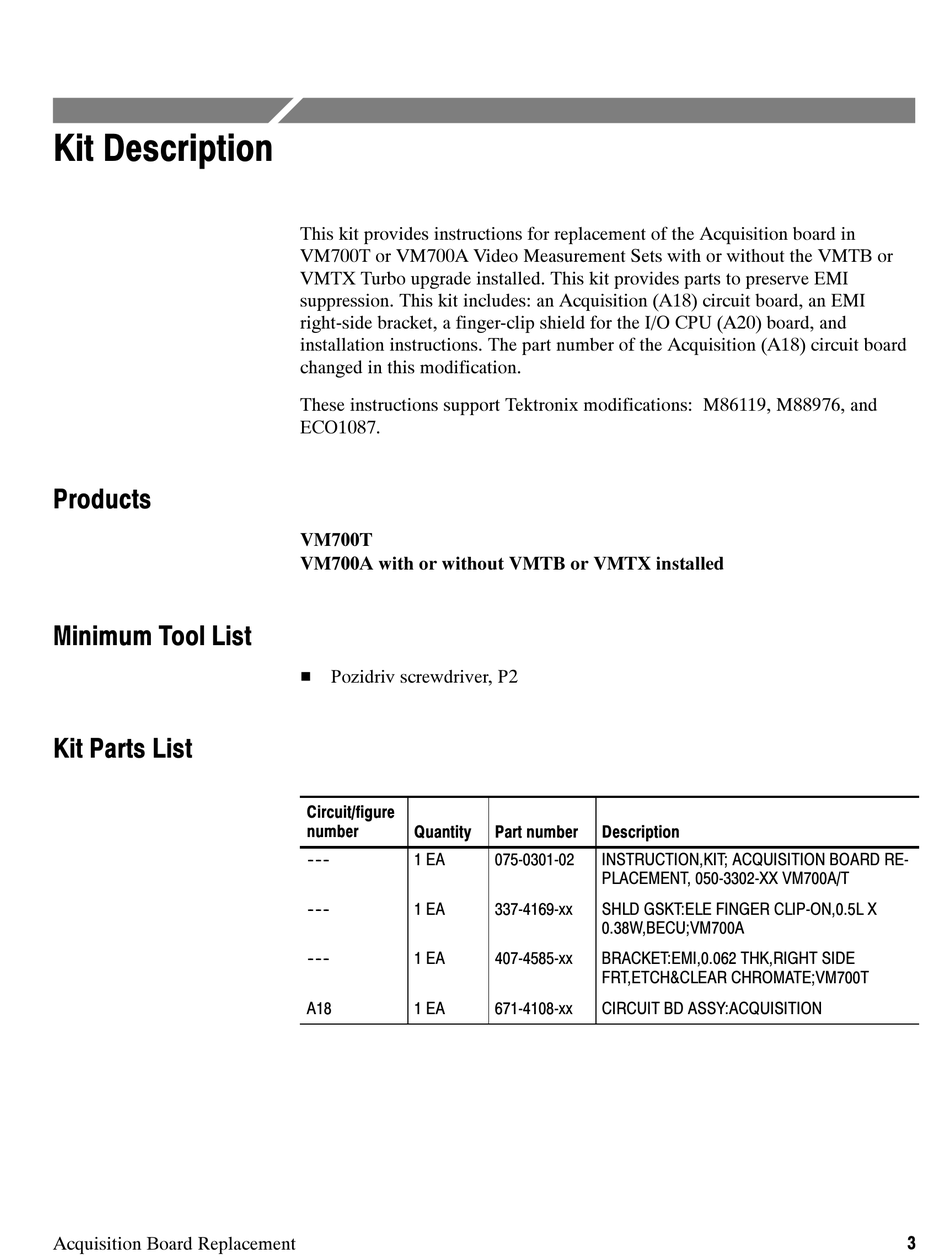

Kit Description

Products
Minimum Tool List

Kit Parts List

Acquisition Board Replacement
This kit provides instructions for replacement of the Acquisition board in
VM700T or VM700A Video Measurement Sets with or without the VMTB or
VMTX Turbo upgrade installed. This kit provides parts to preserve EMI
suppression. This kit includes: an Acquisition (A18) circuit board, an EMI
right-side bracket, a finger-clip shield for the I/O CPU (A20) board, and
installation instructions. The part number of the Acquisition (A18) circuit board
changed in this modification.
These instructions support Tektronix modifications: M86119, M88976, and
ECO1087.
VM700T
VM700A with or without VMTB or VMTX installed
H Pozidriv screwdriver, P2
Circuit/figure
number
Quantity
- - - - - - 1 EA
- - - - - - 1 EA
- - - - - - 1 EA
A18 1 EA
Part number Description
075-0301-02 INSTRUCTION,KIT; ACQUISITION BOARD RE-
PLACEMENT, 050-3302-XX VM700A/T
337-4169-xx SHLD GSKT:ELE FINGER CLIP-ON,0.5L X
0.38W,BECU;VM700A
407-4585-xx BRACKET:EMI,0.062 THK,RIGHT SIDE
FRT,ETCH&CLEAR CHROMATE;VM700T
671-4108-xx CIRCUIT BD ASSY:ACQUISITION
3
