EVBIKE -SET-CMS-48 Installation Manual

Mid-drive electric bicycle kit
Hide thumbs Also See for EVBIKE-SET-CMS-48:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION MANUAL
Mid-Drive Electric Bicycle Kit
EVBIKE-SET-CMS-48

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVBIKE-SET-CMS-48 and is the answer not in the manual?

Questions and answers

Related Manuals for EVBIKE EVBIKE-SET-CMS-48

Summary of Contents for EVBIKE EVBIKE-SET-CMS-48

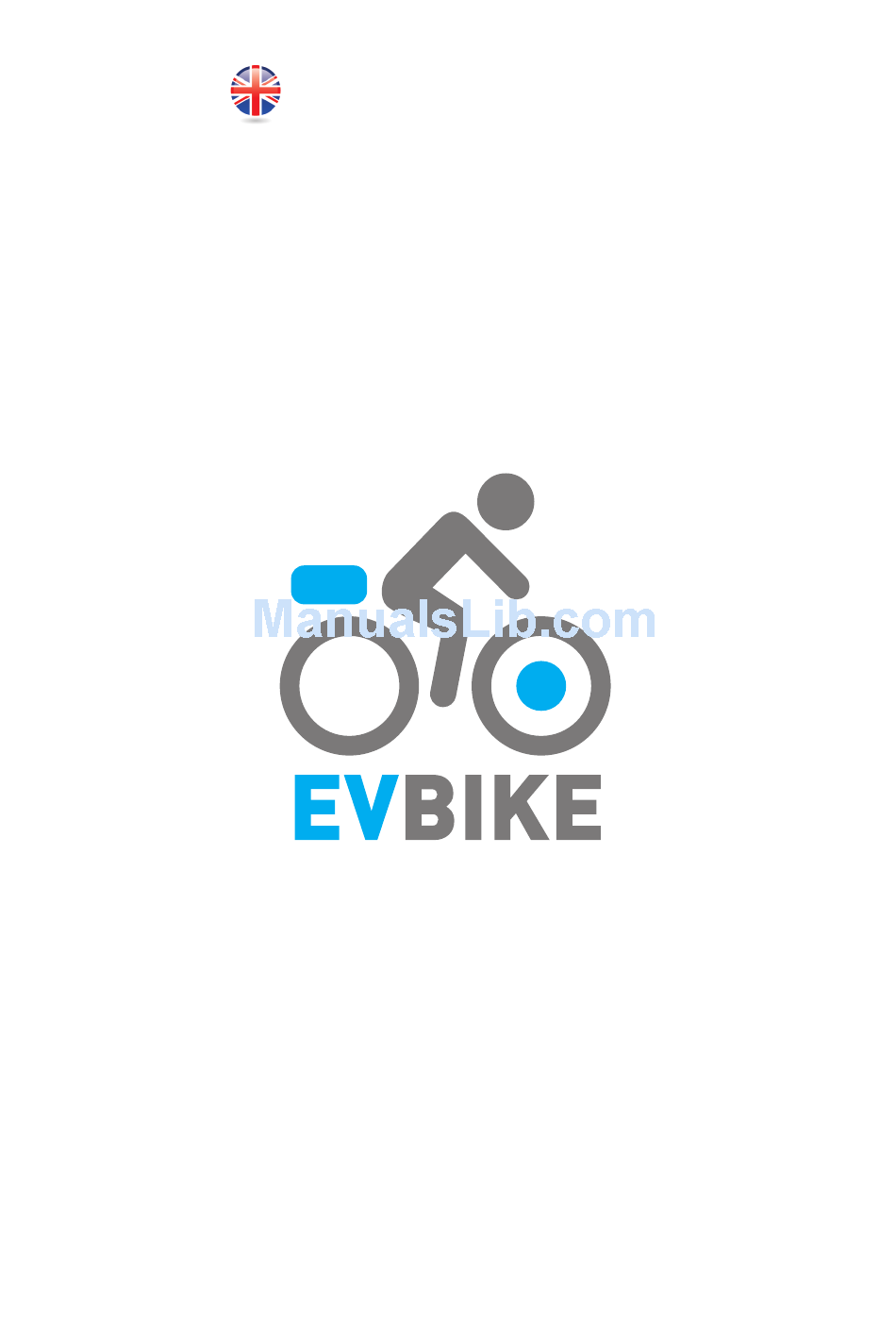

  • Page 1 INSTALLATION MANUAL Mid-Drive Electric Bicycle Kit EVBIKE-SET-CMS-48...
  • Page 2 Dear Customer, Congratulations on purchasing your EVBIKE. We believe that you will be fully satisfied with its operation. The electric bike is one of the most economical means of transport with minimal operating costs. Mounting kit EVBIKE is designed for converting your existing wheel bike to ebike.

  • Page 3: Specifications

    TABLE OF CONTENTS 1. Central motor installation 2. Installation of LCD display, left brake, accelerator and wheel speed sensor. 3. Battery installation 4. Display control 5. Diagnostic of malfunctions and service SPECIFICATIONS Motor power: 750W Motor torque: steady 70, top 100 Nm...

  • Page 4: Package Content

    LCD display Main wiring harness 2x Brake lever For succesful assembly of EVBIKE, you will also need following: — ribbons for cables fastening — screws, nuts, washers — special bottom bracket tools (see pictures a, b, c) — basic technical skills...
  • Page 5 1 CENTRAL DRIVE UNIT INSTALLATION 1) Fasten chain wheel onto the main drive. Chain wheel is fastened on the motor, so that the teeth facing toward the engine (see picture). 5x M5 Nut. Higher surface. Teeth facing toward the engine.
  • Page 6 In the case of using a frame for the bottom bracket of width 73 mm, you must fill space between the engine and fixing washer using a ring or nuts (not included in package). 5 mm WASHER NEEDED 68 mm 75 mm The surface with teeth of fixing plate towards inside, then fix the plate on drive unit with 2pcs M6 Nuts.
  • Page 7 Now gently pull the motor towards the bicycle frame and tighten the first M33 nut onto axle tube with reasonable force (30-40 Nm). Then tighten the second M33 nut onto axle tube. When tightening, secure first M33 nut against the movement and tighten second M33 Nut with force against first (so called "contra nut") .
  • Page 8 Now place the left and right crank (watch the label L and R) and tighten M8 crews with reasonable force (about 35-40 Nm). After tightening, install pedals (watch out for right and left-hand thread). M8 Nut. Left Crank. Right Crank.
  • Page 9 2 INSTALLATION OF CONTROLS AND SPEED SENSOR First remove the original equipment from left side of the handlebar. Grip, the brake lever and shifter. In reverse order mount LCD display, LCD controller, accelerator, brake lever and grip. LCD controller and accelerator can be optionally installed on the right side of the handlebar.
  • Page 10 NOTICE The manufacturer reserves the right to change shape and appearance of the sensor. Its functionality will not be affected. Therefore, the appearance may differ from those illustrated in this manual this is not a defect of the product.

  • Page 11: Battery Installation

    F Speed Sensor 3 BATTERY INSTALLATION EVBIKE kit can be powered by your own battery of voltage 24 or 36V. For proper functionality and seamless installation we recommend using certified EVBIKE batteries. When installing your own batteries always make sure the correct polarity of the connected battery and provide battery output with the connector that is compatible with the connector of the motor unit.

  • Page 12: Advanced Functions

    4 LCD CONTROLL The set is equipped with modern LCD display with automatic backlight and many features. The display is resistant to dust and moisture according IP65 specifications. LCD display is operated by external five buttons controller. In the next section you will learn how to properly set up and operate.

  • Page 13: Basic Operation

    Speed mode Power Speed display Battery indicator Left Low temp warning Lamp Error code Maintenance alert PAS level Power Temperature Down Right Mileage mode Mileage information Basic operation: Power On/Off: Press and hold button for 2 seconds can turn on/off the Meter.
  • Page 14 Warning: don't change the following parameters if you are not sure • The location of speed display symbol Wd, this is the wheel diameter, wrong wheel diameter will cause speed abnormal. • The location of speed display symbol bU0, this represent the battery parameter, wrong parameter can cause battery indication abnormal.
  • Page 15 5 ERROR DIAGNOSTICS - TROUBLE SHOOTING Error Code Error description Handle Communication Error Check cable connection Controller protection Check three-phase power line. If the problem persists, consult your dealer, it is a defect in the motor. Three-phase power error Check three-phase power line connection.

  • Page 16: Maintenance

    The following principles apply to most types of lithium batteries. Proper charging Lithium cells which contain EVBIKE batteries can be recharged at any level of charge or discharge - these batteries have no memory effect. We recommend always after the ride, to recharge the battery so you can immediately enjoy full power and a long driving range.
