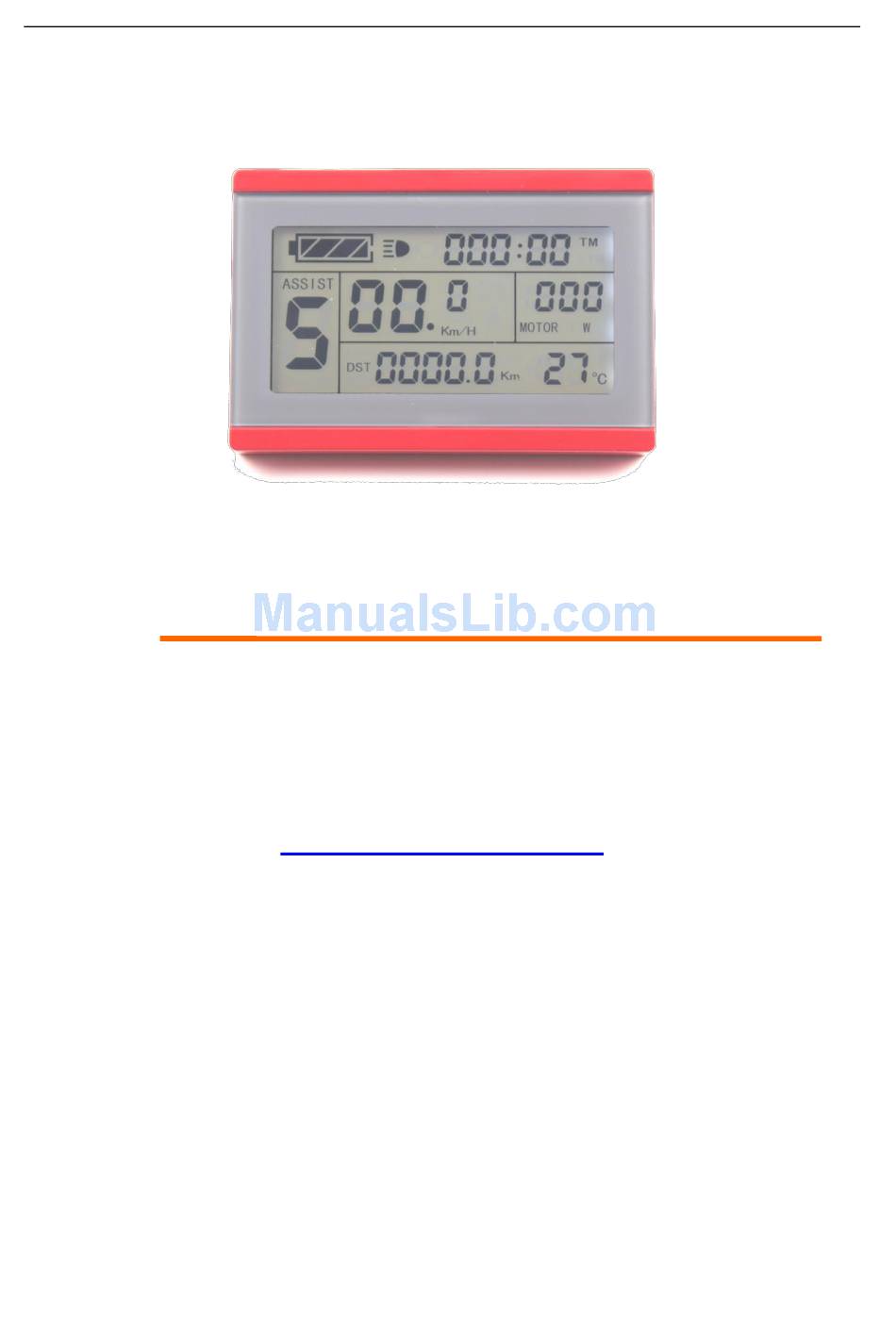

- Page 1 EVBIKE – LCD Display Control – User Guide EVBIKE – LCD Display Control – – User Guide – WWW.EVBIKE.CZ - 1 - Import to EU: Global World Logistic Ltd., 6 Bexley Square , Salford, Manchester, M3 6BZ, United Kingdom...
-
Page 2: Installation
4) Advanced settings of system parameters Thank you for purchasing an EVBIKE product and we hope that you will become a happy user. Carefully read the entire manual prior to installation and first use! If you find in the instructions information that would prevent you from using the product, please return it before installing in its undamaged original packaging. - Page 3 EVBIKE – LCD Display Control – User Guide 1) Description of the individual components and installation: Dimensions are in mm. Figure 1 - LCD display, 2 - LCD display mount, 3 - button control. To install the handlebars with a diameter Φ 31.8mm, leave out the spacer rings: To install the handlebars with a diameter Φ...
- Page 4 Be careful to use reasonable force so as to not break the holder. A typical installation is shown below. 2) Description of the measured variables and user control display: 2.a LCD control panel allows the EVBIKE to measure the following quantities: 1) Travel time - since the last reset (TM) and overall (TTM)
- Page 5 EVBIKE – LCD Display Control – User Guide 16) Error messages *Recovery function is disabled by default and its use is only possible when using an approved battery and correctly dimensioned mounting on the motor axis. Description of LCD display symbols:...
- Page 6 Recharging the battery is shown by a flashing symbol and gradually recharging battery Recovery activation is accessible only by an authorized partner of EVBIKE and before its setting you must verify that the used battery and its protective system supports this kind of charge.
- Page 7 A 48V battery with 54V or more Volts is 100% and 40V and less means that the battery is low. The battery amount indicator in default setting will not function correctly for a 48V battery. In the service center EVBIKE it is possible to calibrate the indicator to measure the correct values for 48V.
- Page 8 EVBIKE – LCD Display Control – User Guide *When there is a completely empty battery, the empty battery indicator will flash. Deleting the distance traveled and the travel time - To erase the data on distance milestones (DST) and travel time (TM), wait at least 20 seconds after activation of the LCD display. Then simultaneously...
- Page 9 You can set these wheel diameters: 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 700c and 28 inches. For the speed measurement the unit EVBIKE uses signals from the hall probes of the engine.
- Page 10 EVBIKE – LCD Display Control – User Guide Three screens with setting of speed limit, the diameter of the wheel, and units. 4) Advanced settings of system parameters: Enter the settings menu in the same manner as when you set the normal parameters of the LCD display. After...
- Page 11 EVBIKE – LCD Display Control – User Guide settings 18,20,22,24,26,7 the wheel diameter. accurate measurement of speed. 00c,28 Setting units Metric/ imperial Set metric for measurements in km and °C. Set metric units in EU region. Characteristics 1-255 The set value is a product of motor gear ratio Never change.
- Page 12 EVBIKE – LCD Display Control – User Guide accelerator P4. It enables to set the accelerator to a mode mode according requirements legislation of a specific country. Limitation of 0-10 For detailed settings see table 4. This function enables lowering the peak maximum current running through the control unit.
- Page 13 EVBIKE – LCD Display Control – User Guide battery and its protective electronics. This function also significantly strains the flaps of motor attachment and torque may result in their breakage. We recommend keeping this function switched off. Or keep only a light stage of recovery No 1.
- Page 14 EVBIKE – LCD Display Control – User Guide Table 4 - Limitation of maximum current from the battery and motor power – parameter C5. For example: If I set parameter C5 to value 3, the control unit lowers the power to 50% of the original one. So if the unit transfers maximally 20 A, after the reduction it is only 10 A.
- Page 15 EVBIKE – LCD Display Control – User Guide Value C13 Braking force Recovery effectiveness without the braking force without the recovery braking force – class 1 The best ratio of recovery and braking energy braking force – class 2 The default force of recovery and braking energy braking force –...
