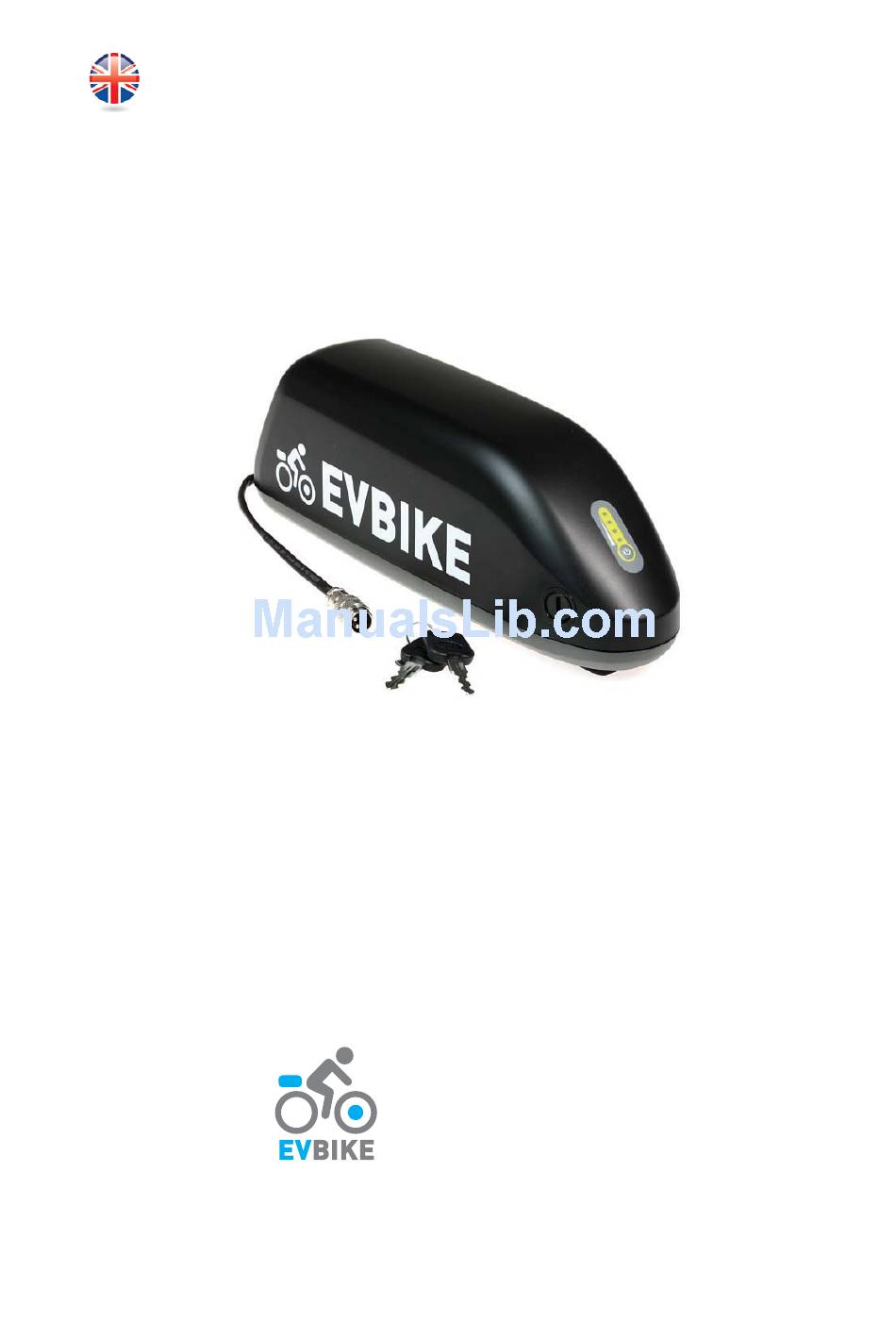

- Page 1 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L Batteries for electric drive of bikes EVBAT48V9A EVBAT36V13A EVBAT36V9A...
- Page 2 Thank you for purchasing EVBIKE product and we hope that you will become a happy user. Carefully read the entire manual prior to installation and first use! If you find any fact in the manual that would prevent you from using our product, please contact your reseller for further discussion and keep the original packaging.
-
Page 3: Product Specifications
PRODUCT SPECIFICATIONS EVBIKE batteries use specially designed traction cells SAMSUNG SDI that result in a superb drive power with a long life. Some further technical parameters of our product are shown in the table below. Specifications EVBAT48V9A EVBAT36V13A EVBAT36V9A Nominal voltage Nominal capacity 8.8Ah / 423Wh... - Page 4 Dismantle the battery bracket that is fastened with screws TORX (fig. 2). Subsequently apply the span of the screws onto a suitable place of the bracket. Always try to use the holes already made. In most cases only one hole will need to be done (fig. 3 and 4). www.EVBIKE.cz Dovozce: Global World Logistic Ltd.,EU-VAT ID: CZ682998344...
- Page 5 If the indication LEDs are on and show the charge status the battery is on. If the LED is not on the battery is off. LEDs of charge status indicator. www.EVBIKE.cz Dovozce: Global World Logistic Ltd.,EU-VAT ID: CZ682998344...
- Page 6 WARNING: During any ride the battery must always be locked and the key must be away of the lock. UNLOCK MOVE FORWARD AND RELEASE 3. Description of the individual parts of the battery: ON/OFF switch and LED indicator Power terminals Battery Lock Protective fuse Charger connector www.EVBIKE.cz Dovozce: Global World Logistic Ltd.,EU-VAT ID: CZ682998344...
-
Page 7: Error Messages
Please check the connection of the battery and the cable of any breakage. Furthermore, check the system settings whether the recuperation (regeneration of the braking energy) is not active and disable it if needed. www.EVBIKE.cz Dovozce: Global World Logistic Ltd.,EU-VAT ID: CZ682998344... -
Page 8: Using The Battery
1. Proper charging: Lithium cells SAMSUNG SDI that are used in EVBIKE batteries can be charged in any status of discharge and these batteries do not have any memory effect. That is why we recommend always charging the battery after a ride or in the course of a longer break so that you can enjoy a full power and long reach. - Page 9 Avoid excessive heating – operate the battery only at a temperature based on the concrete specification. • Do not weld or solder the cells. • Do not dismantle. If uncovered, the contact with the individual parts of the battery may be harmful. www.EVBIKE.cz Dovozce: Global World Logistic Ltd.,EU-VAT ID: CZ682998344...
- Page 10 Decree-Law No 17/2003 Coll. establishing technical requirements for low-voltage electric devices (or LOW VOLTAGE DIRECTIVE 2006/95/EC). This statement is issued on the basis of documents presented by the producer. www.EVBIKE.cz Dovozce: Global World Logistic Ltd.,EU-VAT ID: CZ682998344...
