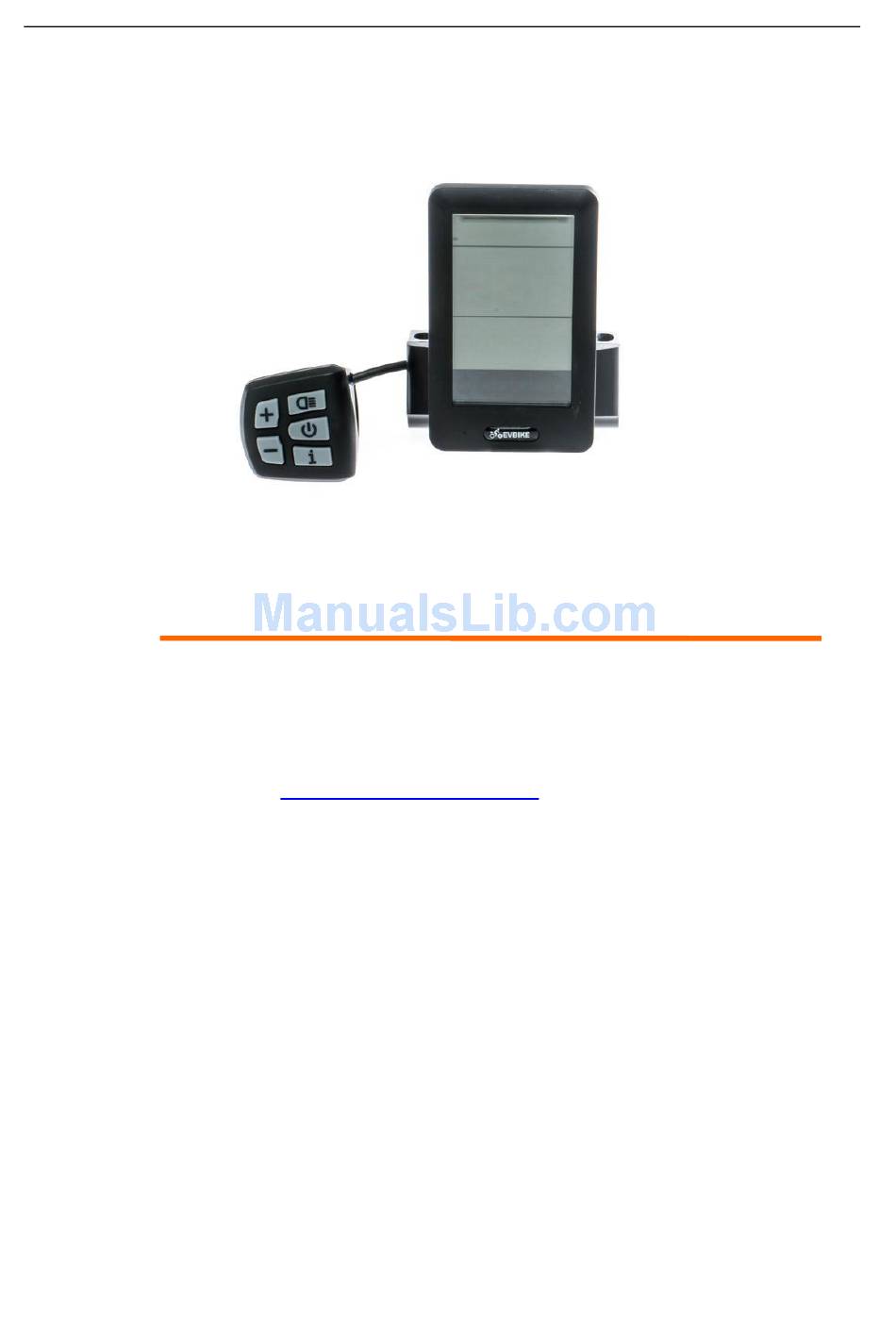

- Page 1 EVBIKE - control LCD C10 - User Guide EVBIKE - control LCD C10 - User Guide EVBIKE - LCD C10 - User Guide WWW.EVBIKE.CZ - 1 - Importer in the EU: GWL Power Ltd., 3rd Floor, 207 Regent Street, London W1B 3HH, United Kingdom...
-
Page 2: General Information
4 / ERROR MESSAGES Thank you for purchasing the product EVBIKE and we believe that its use will be extremely satisfied. Before installation and first use, Thank you for purchasing the product EVBIKE and we believe that its use will be extremely satisfied. Before installation and first use,... - Page 3 EVBIKE - control LCD C10 - User Guide EVBIKE - control LCD C10 - User Guide BASIC PARAMTERY Compatible with 36 V / 48 V supply Normal working current: 10mA Maximum operating current: 30 mA Current system switched off: <1uA Current supplied by the control unit: 500 mA Normal operating / storage temperature (ambient): -20 °...
-
Page 4: Functions And Controls
EVBIKE - control LCD C10 - User Guide EVBIKE - control LCD C10 - User Guide FUNCTIONS AND CONTROLS Function: Bi-directional serial communication control 5 buttons, easy to operate Speed: Current speed - speed, average speed - AVG maximum speed - MaxSem further displays TO GO Power Speed: Current speed - speed, average speed - AVG maximum speed - MaxSem further displays TO GO Power W Calory C. -
Page 5: Lcd Display
EVBIKE - control LCD C10 - User Guide EVBIKE - control LCD C10 - User Guide LCD DISPLAY Description of the display: Battery status: 10-degree battery indicator. Single stage battery status can be set to a desired value. B USB output for charging external devices Display backlighting. -
Page 6: Control Buttons
EVBIKE - control LCD C10 - User Guide EVBIKE - control LCD C10 - User Guide CONTROL BUTTONS Top B Down permanent backlight Turn on turn off MODE CONTROL Turn on turn off To turn the system on hold ( Turn on turn off) for 2 seconds. To turn off the system ( Turn on turn off) for 2 seconds. - Page 7 EVBIKE - control LCD C10 - User Guide EVBIKE - control LCD C10 - User Guide assistance příšlapu By briefly pressing manually change the level of assistance. Assistance is the lowest first Highest assistance is 5. After turning the system automatically selects assistance 1. If the number is not displayed assistance system is inactive and does not support.
-
Page 8: Switching Between Views
EVBIKE - control LCD C10 - User Guide EVBIKE - control LCD C10 - User Guide switching views By briefly pressing to switch between the values a nd speed. Last trip (TRIP km) - total distance (TOTAL km) - maximum speed (MaxSem km / h) - average speed (AVG km / h) - range (TO GO km) - Consumption (W) - Calories (C) are shown in successive order. - Page 9 EVBIKE - control LCD C10 - User Guide EVBIKE - control LCD C10 - User Guide backlight Long hold for 2 seconds to turn on permanent display backlight. In the same manner permanent display backlight off. When the backlight is activated, the display icon, as shown below.
- Page 10 EVBIKE - control LCD C10 - User Guide EVBIKE - control LCD C10 - User Guide The percentage distribution of the battery status on the LCD USB charging When the LCD display is off, connect the USB cable and turn on the display for charging. In the case turned on the LCD only USB cable for charging.
-
Page 11: Advanced Options
EVBIKE - control LCD C10 - User Guide EVBIKE - control LCD C10 - User Guide ADVANCED OPTIONS Parameters: • data deletion • Km / Miles • The sensitivity of the light sensor • backlight • automatic shutdown • service interval •... - Page 12 EVBIKE - control LCD C10 - User Guide EVBIKE - control LCD C10 - User Guide Parameters: data deletion "TC". "TC". "TC". enter the MENU. The display shows the text enter the MENU. The display shows the text enter the MENU. The display shows the text...
- Page 13 EVBIKE - control LCD C10 - User Guide EVBIKE - control LCD C10 - User Guide The sensitivity of the light sensor "BL0" "BL0" "BL0" The display shows the symbol The display shows the symbol The display shows the symbol...
- Page 14 EVBIKE - control LCD C10 - User Guide EVBIKE - control LCD C10 - User Guide automatic shutdown "OFF" "OFF" "OFF" The symbol for the automatic shutdown The symbol for the automatic shutdown The symbol for the automatic shutdown pressing...
- Page 15 EVBIKE - control LCD C10 - User Guide EVBIKE - control LCD C10 - User Guide service code The symbol for service code is PSD password 0512 ( 0 "and" 5 "and" 1 "and" 2 "i") pressing Up down The symbol for service code is PSD password 0512 ( 0 "and" 5 "and" 1 "and" 2 "i") pressing Up down The symbol for service code is PSD password 0512 ( 0 "and"...
- Page 16 EVBIKE - control LCD C10 - User Guide EVBIKE - control LCD C10 - User Guide Communication with battery The symbol for communication control unit with batteries b01, pressing The symbol for communication control unit with batteries b01, pressing The symbol for communication control unit with batteries b01, pressing switch information order.
- Page 17 EVBIKE - control LCD C10 - User Guide EVBIKE - control LCD C10 - User Guide Understanding the error The display 10 displays error messages. If set to an error in the system, the icon . Number Errors appear in the speed. Meaning of error messages, refer to the table below:...
