Step 3: Unlocking the Scanner

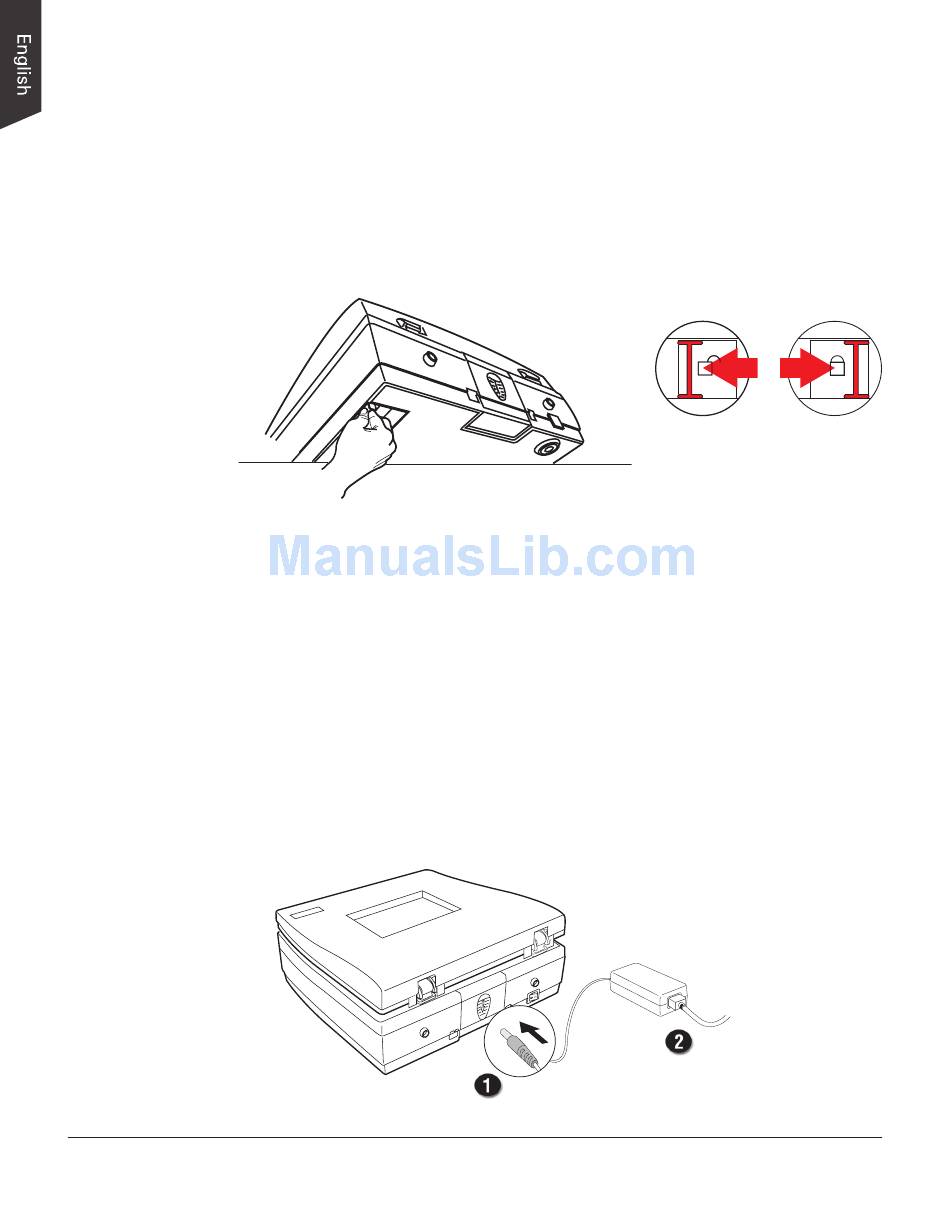

1. With the scanner power off, tilt the scanner and locate the locking switch
2. Push the locking switch to the position as indicated in the graphic, with the
NOTE: To lock the scanner (for shipping and other purposes), turn the locking
switch to the "Locked" position. When locking the scanner, do not turn the
scanner upside down when locking the scanner back.

Step 4: Connecting the Scanner

To the Power adapter
1. Connect the power adapter to the back of the scanner.
2. Plug one end of the power cord into the power adapter, and plug the other
16 Bio-1000F User's Manual
at the bottom right corner of the scanner. Do not turn the scanner upside
down when attempting to unlock, as this may damage the scanner's
mechanism.
icon on the lock showing as "unlocked".
end of the power cord into a wall outlet or other power source.
Unlocked Locked
