  • Page 1: Operating Instructions

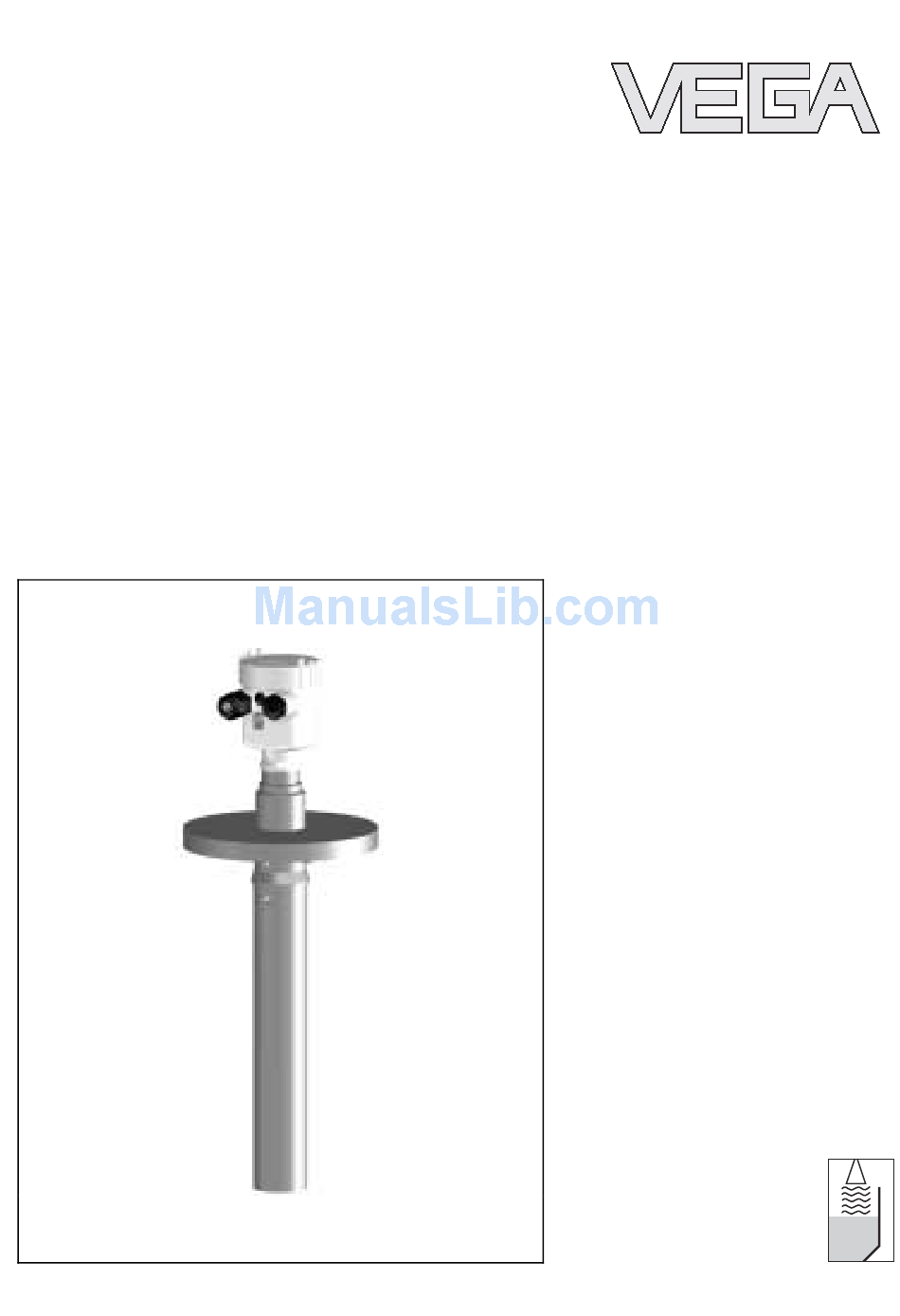

    Operating Instructions VEGAPULS 66 standpipe version Foundation Fieldbus...

  • Page 2: Table Of Contents

    Setup procedure ..... . . Menu schematic ..... . . VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 3 10.4 Industrial property rights....10.5 Trademark ......VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 4 Contents Supplementary operating instructions manuals Information: VEGAPULS 66 is available in many versions and is therefore supplied according to customer order. Depending on the selected version, supplementary operating instructions man- uals also come with the delivery. You will find the supple- mentary operating instructions manuals in chapter "Product...

  • Page 5: About This Document

    This symbol indicates special instructions for Ex applications. List The dot set in front indicates a list with no implied sequence. à Action This arrow indicates a single action. Sequence Numbers set in front indicate successive steps in a procedure. VEGAPULS 66 standpipe version - Foundation Fieldbus...

  • Page 6: For Your Safety

    2.2 Appropriate use VEGAPULS 66 is a sensor for continuous level measurement. Detailed information on the application range of VEGAPULS 66 is available in chapter "Product description".

  • Page 7: Fulfilling Namur Recommendations

    Modifications not expressly approved by VEGA will lead to expiry of the operating licence according to FCC. VEGAPULS 66 is in conformity with part 15 of the FCC regulations. Take note of the respective operating regulations: The instrument must not cause any interfering emissions...

  • Page 8: Safety Instructions For Ex Areas

    VEGAPULS 66 was tested and meets the limit values for a digital instrument of class B, according to part 15 of the FCC regulations. The limit values are for protection against interfering emissions during operation in industrial environ- ment.

  • Page 9: Functional Range Of Approved Instruments

    The environment man- agement system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environ- mental instructions in this manual: Chapter "Storage and transport" VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 10 For your safety Chapter "Disposal" VEGAPULS 66 standpipe version - Foundation Fieldbus...

  • Page 11: Product Description

    - Supplementary instructions manual "Plug connector for continuously measuring sensors" (optional) - Ex-specific "Safety instructions" (with Ex-versions) - if necessary, further certificates VEGAPULS 66 consists of the following components: Components Process fitting with standpipe antenna Housing with electronics, optionally available with plug...

  • Page 12: Principle Of Operation

    Product description Fig. 1: VEGAPULS 66 in flange version up to 150 °C with plastic housing Housing cover with integrated PLICSCOM (optional) Housing with electronics Process fitting with standpipe antenna 3.2 Principle of operation VEGAPULS 66 is a radar sensor in C-band (emitting frequency Area of application approx.
  • Page 13 A CD with the appropriate files and certificates can be ordered via e-mail under info@de.vega.com or by phone from one of the VEGA agencies under the order number "DRIVER.S". The backlight of the indicating and adjustment module is powered by the sensor.

  • Page 14: Operation

    Product description 3.3 Operation VEGAPULS 66 can be adjusted with different adjustment media: with indicating and adjustment module with the suitable VEGA DTM in conjunction with an adjustment software according to the FDT/DTM standard, e.g. PACTware™ and PC a configuration tool...

  • Page 15: Mounting

    Use the recommended cables (see chapter "Connecting to Moisture power supply") and tighten the cable gland. You can give your VEGAPULS 66 additional protection against moisture penetration by leading the connection cable down- ward in front of the cable entry. Rain and condensation water can thus drain off.

  • Page 16: Mounting Instructions

    If good mixing of the product is important, you should use the version with perforated surge pipe. If the flange of VEGAPULS 66 was separated from the tube during transport, make sure when mounting that the polar- isation marking is displaced by 90° to the vent hole. Take care that the plastic tip of the radar sensor is not damaged during transport.
  • Page 17 Fig. 4: Polarisation marking Marking of the polarisation direction Vent hole ø 8 mm (0.3 in) Do not mount the instruments in or above the filling stream. Inflowing medium Fig. 5: Inflowing liquid VEGAPULS 66 standpipe version - Foundation Fieldbus...

  • Page 18: Connecting To Voltage Supply

    VEGAPULS 66 requires a supply voltage of 9 … 32 V DC. Select power supply Power and the digital bus signal are carried on the same two- wire connection cable.

  • Page 19: Connection Steps, Instrument Housing

    5 Insert the cable into the sensor through the cable entry 6 Lift the opening levers of the terminals with a screwdriver (see following illustration) 7 Insert the wire ends into the open terminals according to the wiring plan VEGAPULS 66 standpipe version - Foundation Fieldbus...

  • Page 20: Wiring Plan, Single Chamber Housing

    12 Screw the housing cover back on The electrical connection is finished. 5.3 Wiring plan, single chamber housing The following illustrations apply to the non-Ex as well as to the Ex ia version. VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 21 Plug connector for VEGACONNECT (I²C interface) Spring-loaded terminals for connection of the external indication VEGADIS Ground terminal for connection of the cable screen Spring-loaded terminals for Foundation Fieldbus connection Simulation switch ("on" = mode for simulation release) VEGAPULS 66 standpipe version - Foundation Fieldbus...

  • Page 22: Wiring Plan, Double Chamber Housing

    Housing cover, electronics compartment Filter element for pressure compensation or blind stopper with version IP 66/ IP 68, 1 bar Cable entry or plug Version IP 66/IP 68, 1 bar not with four-wire instruments VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 23 Internal connection cable to the connection compartment Connection compartment I ² C Fig. 12: Connection compartment, double chamber housing Plug connector for VEGACONNECT (I²C interface) Ground terminal for connection of the cable screen Spring-loaded terminals for voltage supply VEGAPULS 66 standpipe version - Foundation Fieldbus...

  • Page 24: Wiring Plan, Double Chamber Housing Exd

    Housing cover, electronics compartment Filter element for pressure compensation or blind stopper with version IP 66/ IP 68, 1 bar Cable entry or plug Version IP 66/IP 68, 1 bar not with four-wire instruments VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 25 Internal connection cable to the connection compartment Connection compartment Fig. 16: Connection compartment, double chamber housing Exd Spring-loaded terminals for power supply and cable screen Ground terminal for connection of the cable screen VEGAPULS 66 standpipe version - Foundation Fieldbus...

  • Page 26: Wiring Plan, Version Ip 66/Ip 68, 1 Bar

    (+) and blue (-) to power supply or to the processing system Screen 5.7 Switch-on phase After VEGAPULS 66 is connected to voltage supply or after Switch-on phase voltage recurrence, the instrument carries out a self-check for approx. 30 seconds. The following steps are carried out: Internal check of the electronics Indication of the instrument type, the firmware as well as...

  • Page 27: Setup With The Indicating And Adjustment Module Plicscom

    (you can choose any one of four different positions - each displaced by 90°) 3 Press the indicating and adjustment module onto the electronics and turn it to the right until it snaps in. VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 28 Fig. 19: Installation of the indicating and adjustment module Note: If you intend to retrofit VEGAPULS 66 with an indicating and adjustment module for continuous measured value indication, a higher cover with an inspection glass is required.

  • Page 29: Adjustment System

    The functions of the individual keys are shown in the above illustration. Approx. 10 minutes after the last pressing of a key, an automatic reset to measured value indication is triggered. Any values not confirmed with [OK] will not be saved. VEGAPULS 66 standpipe version - Foundation Fieldbus...

  • Page 30: Setup Procedure

    Caution: If there is a separation of liquids with different dielectric values in the vessel, e.g. by condensation, VEGAPULS 66 can detect under certain circumstances only the medium with the higher dielectric value. Keep in mind that interfaces can cause faulty measurements.
  • Page 31 "Water based" are offered below the menu item Liquid. Through this additional selection, the sensor is adapted perfectly to the product and measurement reliability, partic- ularly in products with bad reflective properties, is considerably increased. VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 32 A false echo storage detects and marks these false echoes, so that they are no longer taken into account for the VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 33 The menu item "Extended setting" offers the possibility to Extended setting/Quick level change optimise VEGAPULS 66 for applications in which the level changes very quickly. For this reason, select the function "Quick level change >1m/min.". Extended setting...
  • Page 34 30 m(d) (VEGAPULS 61, 63, 65) Min. adjustment 35 m(d) (VEGAPULS 62, 66) 70 m(d) (VEGAPULS 68) Medium Liquid Vessel form not known Damping Linearization linear Sensor-TAG Sensor Displayed value AI-Out With standpipe versions. Sensor-specific basic adjustment. VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 35 You will find a detailed description of these menu items in the operating instructions manual "Indicating and adjustment module". Special parameters are parameters which are set customer-specifically on the service level with the adjustment software PACTware™. VEGAPULS 66 standpipe version - Foundation Fieldbus...

  • Page 36: Menu Schematic

    10,000 m(d) 1,000 m(d) 8,000 m(d) 2,000 m(d) Linearisation curve linear Indication Basic adjustment ▶ Indication Diagnostics Service Info Displayed value Lighting ▼ AI-Out Ausgeschaltet Diagnostics Basic adjustment Indication ▶ Diagnostics Service Info VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 37 Last change using PC < max. 32 characters > VEGAPULS 6x 15. Dec. 2006 Sensor-TAG (PD_TAG) Serial number Software version < max. 32 characters > 12345678 3.32 15. Dec. 2006 Sensor characteristics Display now? VEGAPULS 66 standpipe version - Foundation Fieldbus...

  • Page 38: Saving The Parameter Adjustment Data

    They are hence available for multiple use or service purposes. If VEGAPULS 66 is equipped with an indicating and adjust- ment module, the most important data can be read out of the sensor into indicating and adjustment module. The procedure is described in the operating instructions manual "Indicating...

  • Page 39: Setup With Pactware™ And Other Adjustment Programs

    PACTware™ and the VEGA DTMs. Note: Keep in mind that for setup of VEGAPULS 66, DTM-Collection 06/2003 or a newer version must be used. VEGAPULS 66 standpipe version - Foundation Fieldbus...

  • Page 40: Parameter Adjustment With Ams

    All currently available VEGA DTMs are provided in the DTM Collection on CD and can be obtained from the responsible VEGA agency for a token fee. This CD includes also the up-to- date PACTware™ version. The basic version of this DTM Collection incl.

  • Page 41: Maintenance And Fault Rectification

    Maintenance and fault rectification 8 Maintenance and fault rectification 8.1 Maintenance When used as directed in normal operation, VEGAPULS 66 is completely maintenance free. 8.2 Remove interferences VEGAPULS 66 offers maximum reliability. Nevertheless faults Causes of malfunction can occur during operation. These may be caused by the following, e.g.:...
  • Page 42 Carry out a software update or send the instrument for repair E041, E042, E043 Hardware error, electronics defective à Exchange instrument or return instrument for repair E113 Communication conflict à Exchange instrument or return instrument for repair VEGAPULS 66 standpipe version - Foundation Fieldbus...

  • Page 43: Exchange Of The Electronics Module

    Assignment in their signal output or in their power supply. You can find a suitable oscillator in the following overview. Electronics module PS-E.60CF. is suitable for C-band VEGA- Foundation Fieldbus PULS 65, 66 - Foundation Fieldbus: PS-E.60CFX X = without approvals) PS-E.60CFD (D = approvals CI, UX, UF according to...
  • Page 44 Attach the filled in form and if necessary, a safety data sheet to the instrument Please ask the agency serving you for the address of your return shipment. You find the respective agency on our website www.vega.com under: "Company - VEGA world- wide" VEGAPULS 66 standpipe version - Foundation Fieldbus...

  • Page 45: Dismounting

    Correct disposal avoids negative effects to persons and environment and ensures recycling of useful raw materials. Materials: see "Technical data" If you cannot dispose of the instrument properly, please contact us about disposal methods or return. VEGAPULS 66 standpipe version - Foundation Fieldbus...

  • Page 46: Supplement

    IEC 61158-2 Channel Numbers - Channel 1 Primary value - Channel 2 Secondary value 1 - Channel 3 Secondary value 2 Transmission rate 31,25 Kbit/s Current value 10 mA, ±0.5 mA VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 47 1 mm (max. 0.039 in) Deviation see diagrams According to the respective standpipe length. Time to output the correct level (with max. 10 % deviation) after a sudden level change. Incl. non-linearity, hysteresis and non-repeatability. VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 48 20 mm 5 mm 0,5 m 5,85 m -5 mm -20 mm Fig. 22: Accuracy VEGAPULS 66 in mm relating to the measuring range in m 0.788 in 0.197 in 1.640 ft 19.19 ft - 0.197 in - 0.788 in Fig.
  • Page 49 "Flanges according to DIN-EN-ASME-JIS" Vibration resistance mechanical vibrations with 1 g and 5 … 100 Hz Tested according to the regulations of German Lloyd, GL directive 2 VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 50 - wire resistance <0.036 Ohm/m - Tensile strength >1200 N (270 lbf) - Standard length 5 m (16.4 ft) Depending on the version M12x1, according to DIN 43650, Harting, Am- phenol-Tuchel, 7/8" FF. VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 51 IP 66/IP 67 - Alu and stainless steel standard IP 66/IP 68 (0.2 bar) - Alu and stainless housing (optionally IP 66/IP 68 (1 bar) available) Prerequisite for maintaining the protection is a suitable cable. VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 52 CSA CI.I, Div2 (NI)+CI.II, III, Div1 (DIP); CSA CI.I-III, Div 1 (IS) Ship approvals GL, LRS, ABS, CCS, RINA Others Deviating data in Ex applications: see separate safety instructions. Depending on order specification. VEGAPULS 66 standpipe version - Foundation Fieldbus...

  • Page 53: Foundation Fieldbus

    Channel = 1: Primary Value AI 2 Channel = 2: Secondary Value 1 Channel = 3: Secondary Value 2 Fig. 24: VEGAPULS 66 measured value processing Diagram, adjustment The following illustration shows the function of the adjustment. VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 54 'Channel' = 2. Unit derives from 'Secondary_value_1_unit' secondary_value_1_unit Selected unit code for "secondary_value_1" secondary_value_2 Sensor value + sensor offset. Selected as input to AIFB by setting 'Channel' = 3. Unit derives from 'Secondary_value_2_unit' secondary_value_2_unit Unit code of 'Secondary_value_2' VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 55 Min./max.-adjustment: Upper calibrated point of the sensor. It refers to 'Cal_level_hi'. The unit is defined in 'Sensor_range.unit' Calibration Lowest Point Min./max.-adjustment: Lower calibrated point of the sensor. It refers to 'Cal_level_lo'. The unit is defined in 'Sensor_range.unit' cal_level_hi VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 56 Set up to suit the process conditions. If Special-Parameter adjustment has been utilized this parameter cannot be written fast_level_change Set up to suit the process conditions. If Special-Parameter adjustment has been utilized this parameter cannot be written VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 57 Signal/Noise ratio empty_vessel_curve_corr_dist Distance from the sensor to the product surface. Unit derives from 'Sensor_range.unit' empty_vessel_curve_corr_op_code Update, create new or delete the empty vessel curve tube diameter Set up to suit the process conditions VEGAPULS 66 standpipe version - Foundation Fieldbus...

  • Page 58: Dimensions

    Fig. 27: Housing versions in protection IP 66/IP 68, 1 bar (with integrated indicating and adjustment module the housing is 9 mm/0.4 in higher) Stainless steel housing Aluminium double chamber housing Aluminium housing VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 59 For process temperatures up to 250 °C (482 °F) For process temperatures up to 400 °C (752 °F) The plant operator must provide a suitable support for the standpipe de- pending on the length and the process conditions. VEGAPULS 66 standpipe version - Foundation Fieldbus...

  • Page 60: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellectuelle. Pour plus d'informations, on pourra se référer au site http://www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad industrial. Para mayor información revise la pagina web http://www.vega.com.
  • Page 61 Supplement VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 62 Supplement VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 63 Supplement VEGAPULS 66 standpipe version - Foundation Fieldbus...
  • Page 64 All statements concerning scope of delivery, application, practical use and operating conditions of the sensors and processing systems correspond to the information avail- able at the time of printing. © VEGA Grieshaber KG, Schiltach/Germany 2007 Subject to change without prior notice 28744-EN-070201...

This manual is also suitable for:

Vegapuls 66
