Vega VEGAPULS 66 Operating Instructions Manual

Standpipe version profibus pa sensor for continuous level measurement of liquids under arduous process conditions
Hide thumbs Also See for VEGAPULS 66:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Instructions Manual

Operating Instructions

VEGAPULS 66 standpipe version
Profibus PA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGAPULS 66 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vega VEGAPULS 66

Summary of Contents for Vega VEGAPULS 66

  • Page 1: Operating Instructions

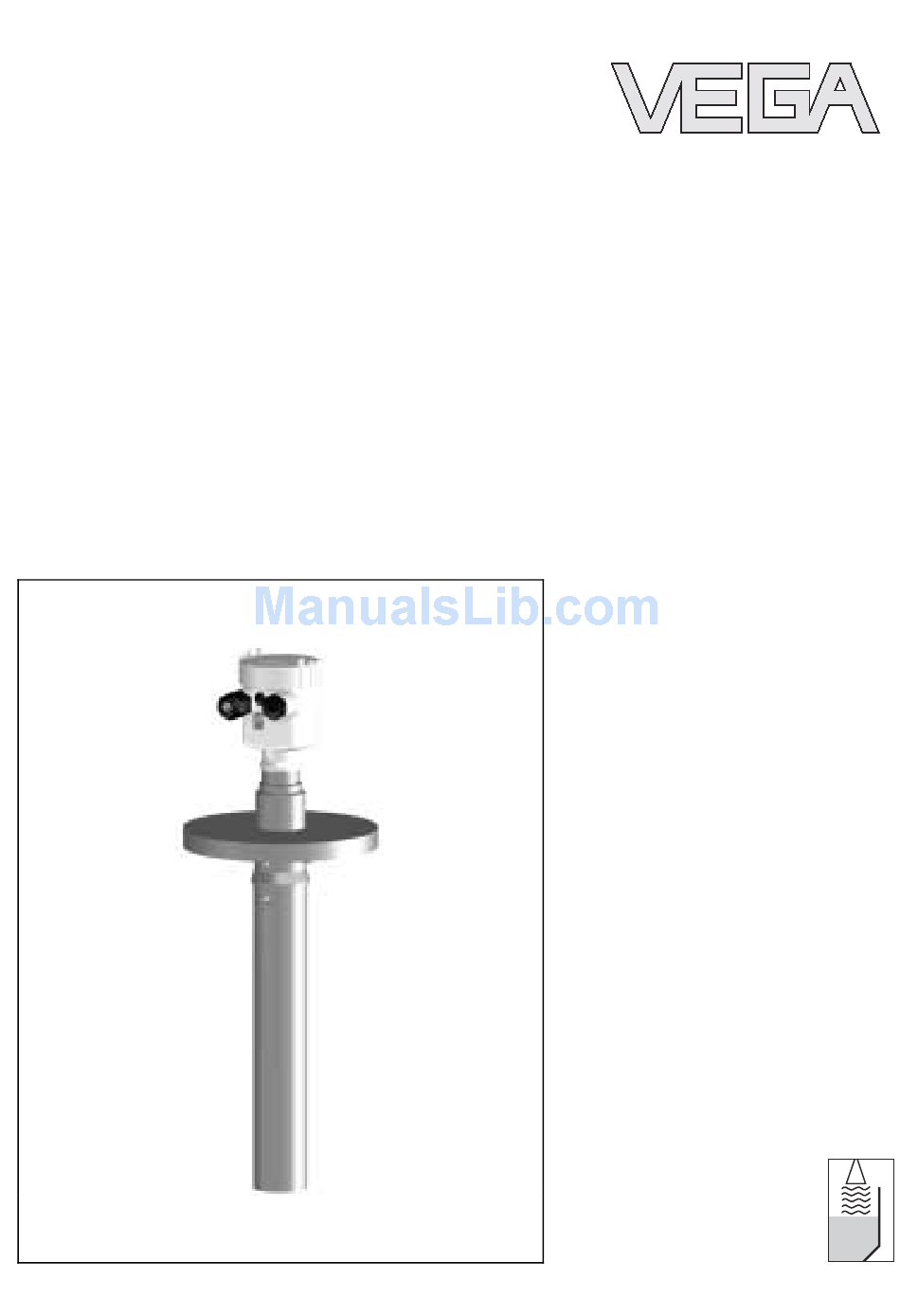

    Operating Instructions VEGAPULS 66 standpipe version Profibus PA...
