Operation

Battery Voltage check
1. Press the "ON/OFF" button, if "Battery Low" appears on the display, replace the batteries.
Earth Voltage measurement

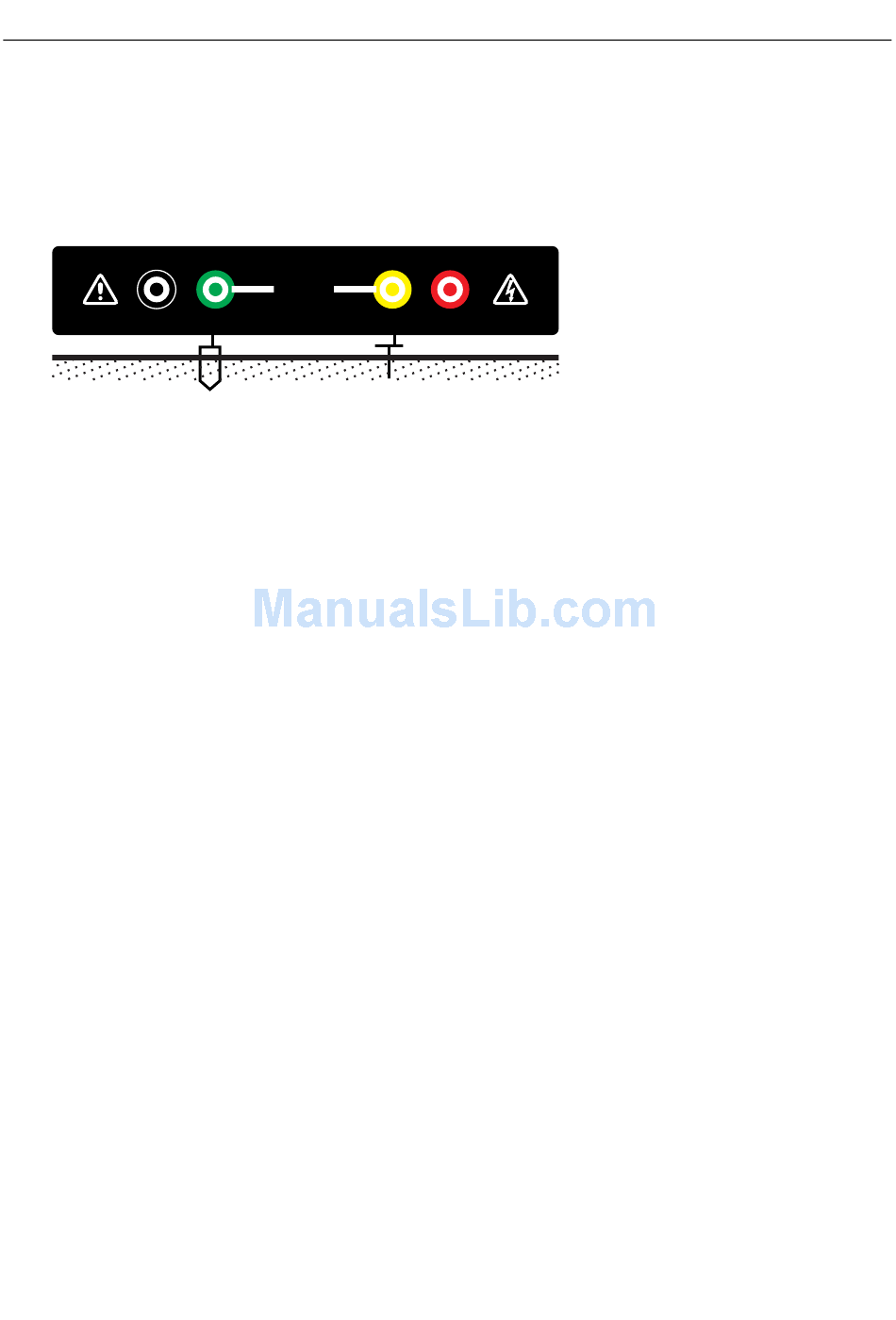

1. Connect the test leads as shown below.
E
C
1
(1) Earth electrode (rod) under test (2) Test spike
2. Press the "ON/OFF" button and wait for "Select Function" to appear on the display.
3. Press the "ACV" button and then the "TEST/STOP" button.
4. The earth voltage will be displayed on the display.
Note: When the earth voltage is more than 10V, errors in earth resistance measurements may
occur. Make sure that the indicated value is less than 10V.
