Features

Microprocessor controlled with advanced safety features

Two line LCD display

Auto-Ranging

Earth resistance testing with four ranges: 0-2Ω/0-20Ω/0-200Ω/0-2kΩ

Earth voltage measuring range of 0-300Vac

Automatic C spike check.

Automatic P spike check.

2-wire test

3-wire test

4-wire test

Auto power off

Data hold

Safety standard: EN 61010-1 CATIV 300V, EN 61326-1

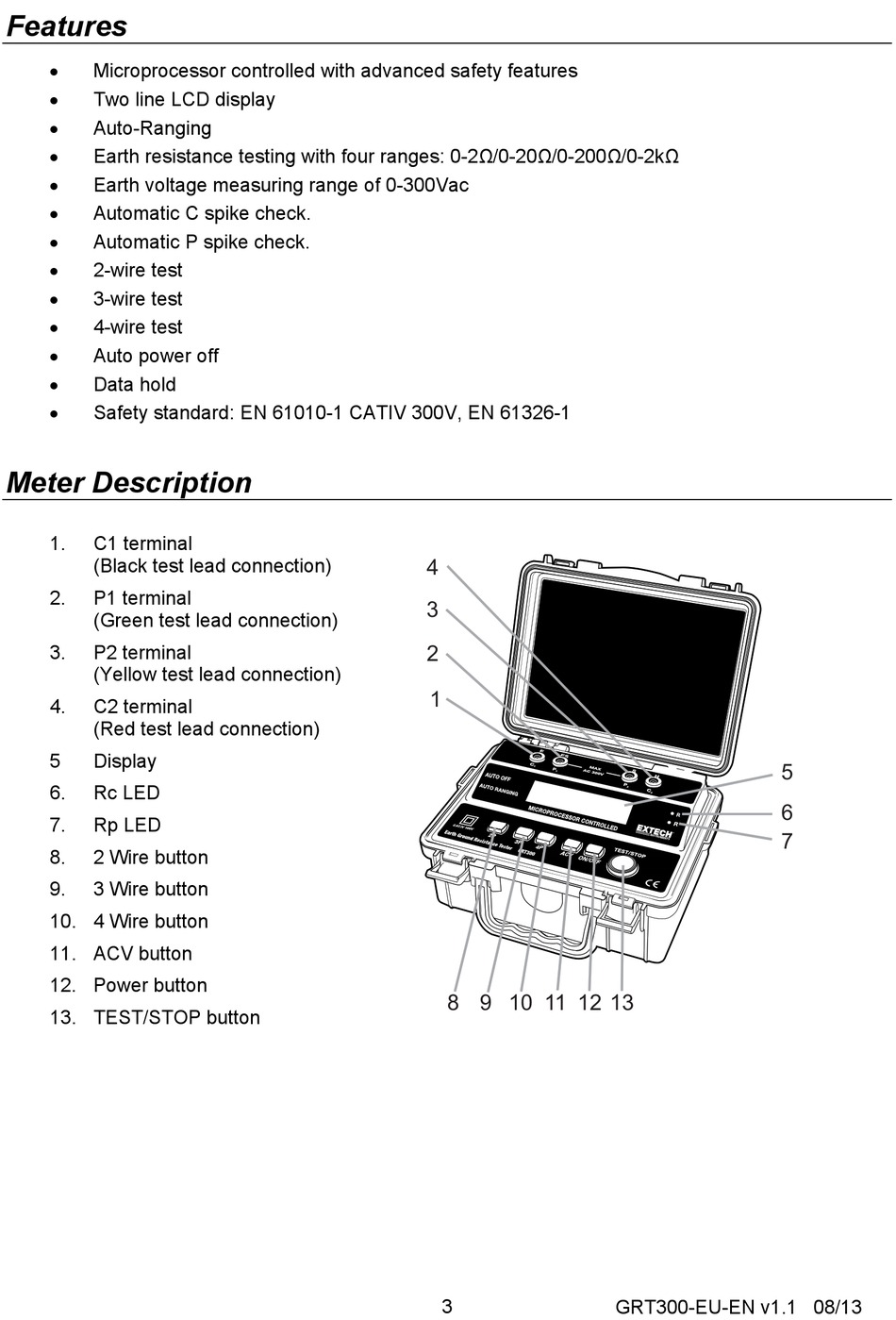

Meter Description

1. C1 terminal
(Black test lead connection)
2. P1 terminal
(Green test lead connection)
3. P2 terminal
(Yellow test lead connection)
4. C2 terminal
(Red test lead connection)
5 Display
6. Rc LED
7. Rp LED
8. 2 Wire button
9. 3 Wire button
10. 4 Wire button
11. ACV button
12. Power button
13. TEST/STOP button
4
3
2
1
8 9 10 11 12 13
3
5
6
7
