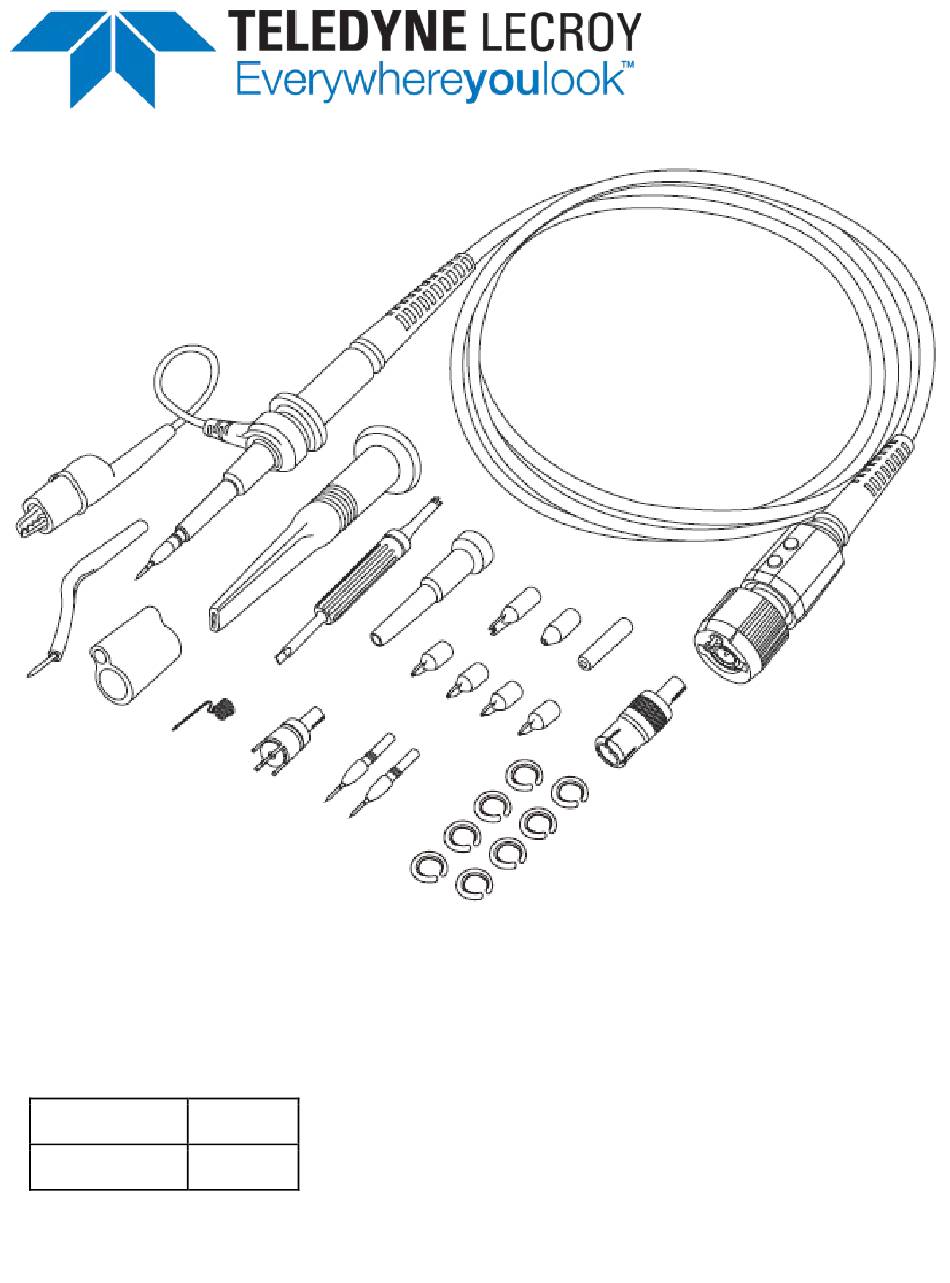

- Page 1 User Manual PP021 PP021-1 Passive Probe PP021-2...
- Page 2 Administration Regulations. Export, reexport or diversion contrary to U.S. law is prohibited. Teledyne LeCroy is a registered trademark of Teledyne LeCroy, Inc. Other product or brand names are trademarks or requested trademarks of their respective holders. Information in this publication supersedes all earlier versions.
-
Page 3: Terms And Symbols
DOUBLE INSULATION PROTECTIVE (EARTH) TERMINAL Introduction Teledyne LeCroy PP021 is a passive high impedance voltage oscilloscope probe designed and calibrated for use with general purpose oscilloscopes having an input impedance of 1 MΩ. It can be compensated for use with instruments having an input capacitance between 14 and 25 pF. -
Page 4: Specifications
PP021 Passive Probe Specifications Input Rise Compensation Impedance Time Length Range Model Attn. R (MΩ) C (pF) (MHz) (ps) (pF) PP021 14 - 25 Attenuation Ratio ....10:1 ±1% Max. Input Voltage ..Circuits not directly connected to Mains: 500 Vrms, ......... - Page 5 User Manual PP021 Input Impedance Profile Voltage vs. Frequency Derating Curve EAR99 technology subject to restrictions on copyrights page.
-
Page 6: Ec Declaration Of Conformity
PP021 Passive Probe EC Declaration of Conformity The product conforms to the applicable European Union requirements per Low Voltage Directive (LVD) 2014/35/EU. Compliance was demonstrated to the following specification as listed in the Official Journal of the European Communities: IEC/EN 61010-031:2015 Safety requirements for electrical equipment for measurement, control and laboratory use –... -
Page 7: General Safety Information
User Manual General Safety Information Observe generally accepted safety procedures in addition to those listed here to avoid personal injury or damage to equipment. The overall safety of any system incorporating this accessory is the responsibility of the assembler of the system. Connect only to grounded instruments. - Page 8 • cause deterioration of the probe body, cables, and accessories. Service Refer all repairs to qualified service personnel. Contact Teledyne LeCroy at the following address to arrange to return the probe for service: Teledyne LeCroy, Inc. 700 Chestnut Ridge Road...
-
Page 9: Probe Compensation
User Manual Probe Compensation Proper compensation of the probe is required to assure amplitude accuracy of the waveform being measured by matching the probe to the oscilloscope’s input capacitance. Compensation should be adjusted whenever the probe is connected to or transferred between oscilloscopes. Low Frequency Apply a 1 kHz square wave to the probe or connect to the oscilloscope’s calibrator output. -

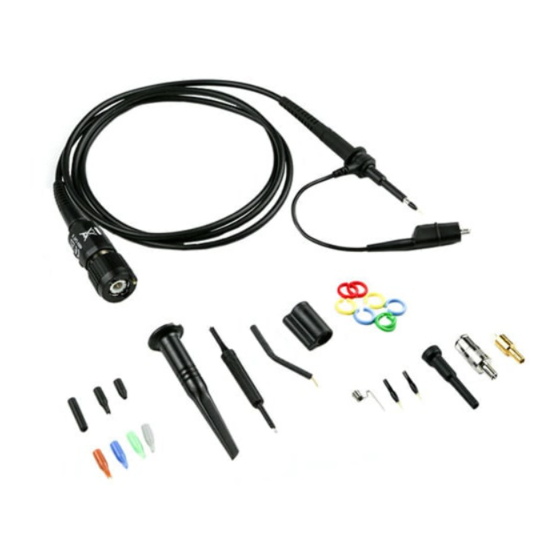

Page 10: Probe Accessories
PP021 Passive Probe Over-compensated, correct, and under-compensated waveforms Probe Accessories Probe Tips Both the rigid probe tip and the spring tip can be screwed on to the probe body by hand. Be sure not to overtighten the tips to avoid damaging the threads. Ground Accessories The ground lead and the short collar are attached to the probe at the time of shipping. -
Page 11: Replaceable Parts
User Manual Replaceable Parts Item Part Number Description PK5-2.5MM-101 Ground Lead with Alligator Clip PK5-2.5MM-102 Rigid Probe Tip (1 installed standard) PK5-2.5MM-103 Short Collar (installed standard) PK5-2.5MM-104 Sprung Hook PK5-PK6-001 Trimmer Tool PK5-2.5MM-105 Long Collar PK5-2.5MM-106 IC Tip Insulators (Black, Brown, Blue, Green, Gray) PK5-2.5MM-107 Tip Insulator 2.5mm PK5-2.5MM-108... -
Page 12: Warranty
Spare parts, replacement parts and repairs are warranted for 90 days. In exercising its warranty, Teledyne LeCroy, at its option, will either repair or replace any assembly returned within the warranty period to the Customer Service Department of an authorized service center.
