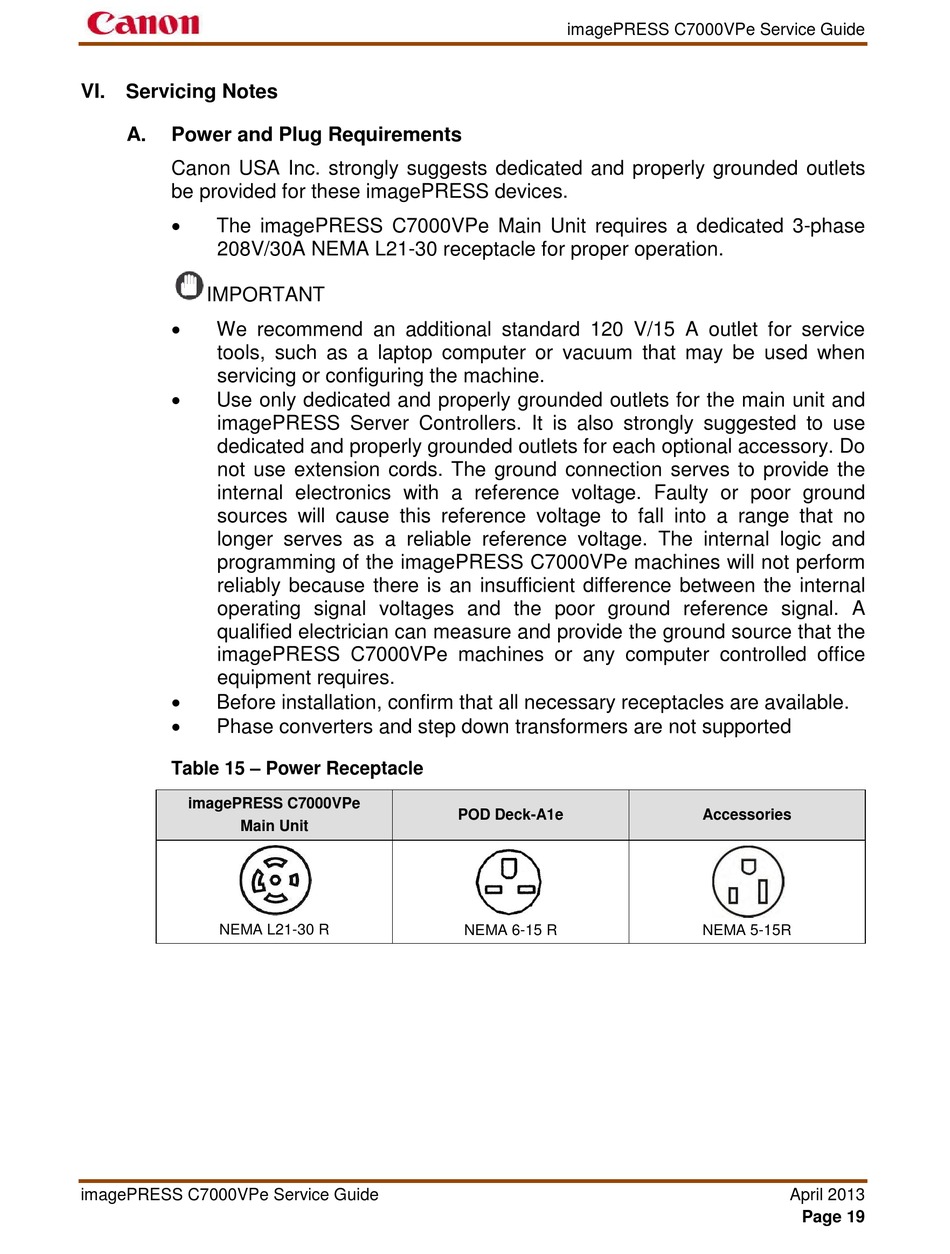

VI. Servicing Notes

A.

Power and Plug Requirements

Canon USA Inc. strongly suggests dedicated and properly grounded outlets
be provided for these imagePRESS devices.

The imagePRESS C7000VPe Main Unit requires a dedicated 3-phase
208V/30A NEMA L21-30 receptacle for proper operation.
IMPORTANT

We recommend an additional standard 120 V/15 A outlet for service
tools, such as a laptop computer or vacuum that may be used when
servicing or configuring the machine.

Use only dedicated and properly grounded outlets for the main unit and
imagePRESS Server Controllers. It is also strongly suggested to use
dedicated and properly grounded outlets for each optional accessory. Do
not use extension cords. The ground connection serves to provide the
internal electronics with a reference voltage. Faulty or poor ground
sources will cause this reference voltage to fall into a range that no
longer serves as a reliable reference voltage. The internal logic and
programming of the imagePRESS C7000VPe machines will not perform
reliably because there is an insufficient difference between the internal
operating signal voltages and the poor ground reference signal. A
qualified electrician can measure and provide the ground source that the
imagePRESS C7000VPe machines or any computer controlled office
equipment requires.

Before installation, confirm that all necessary receptacles are available.

Phase converters and step down transformers are not supported
Table 15 – Power Receptacle
imagePRESS C7000VPe
Main Unit
NEMA L21-30 R
imagePRESS C7000VPe Service Guide
imagePRESS C7000VPe Service Guide
POD Deck-A1e
NEMA 6-15 R
Accessories
NEMA 5-15R
