Basic operation
Tip unsoldering procedure.

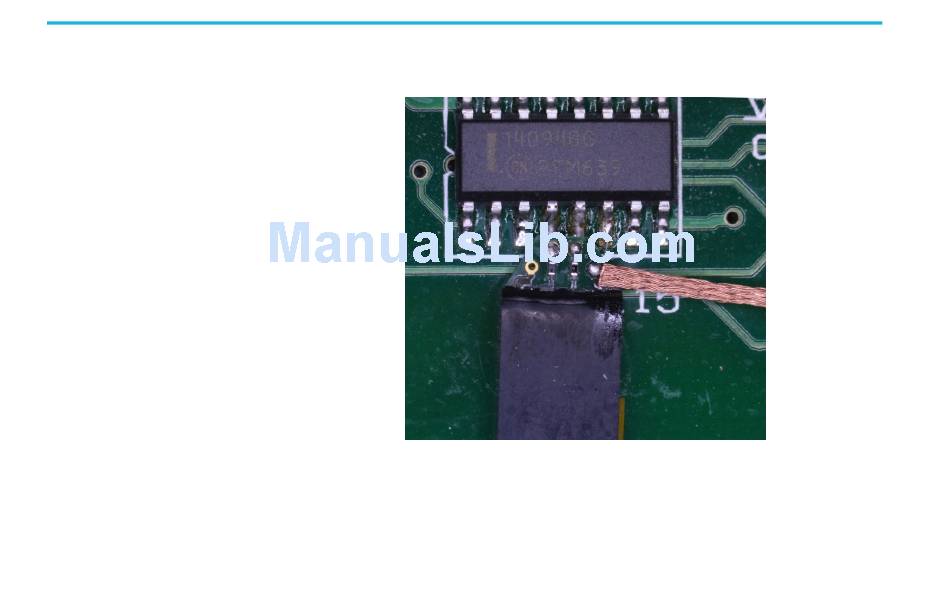

1. Use small solder-wick to remove the solder
and wire from the tip ground via. Size
#1 Solder-Wick is recommended due to
the small size of the tip and vias. Do not
place the solder wick over the 0201 input
resistors and these parts might accidentally
be unsoldered from the board.
58
P7700 Series TriMode Probes User Manual
