Operation

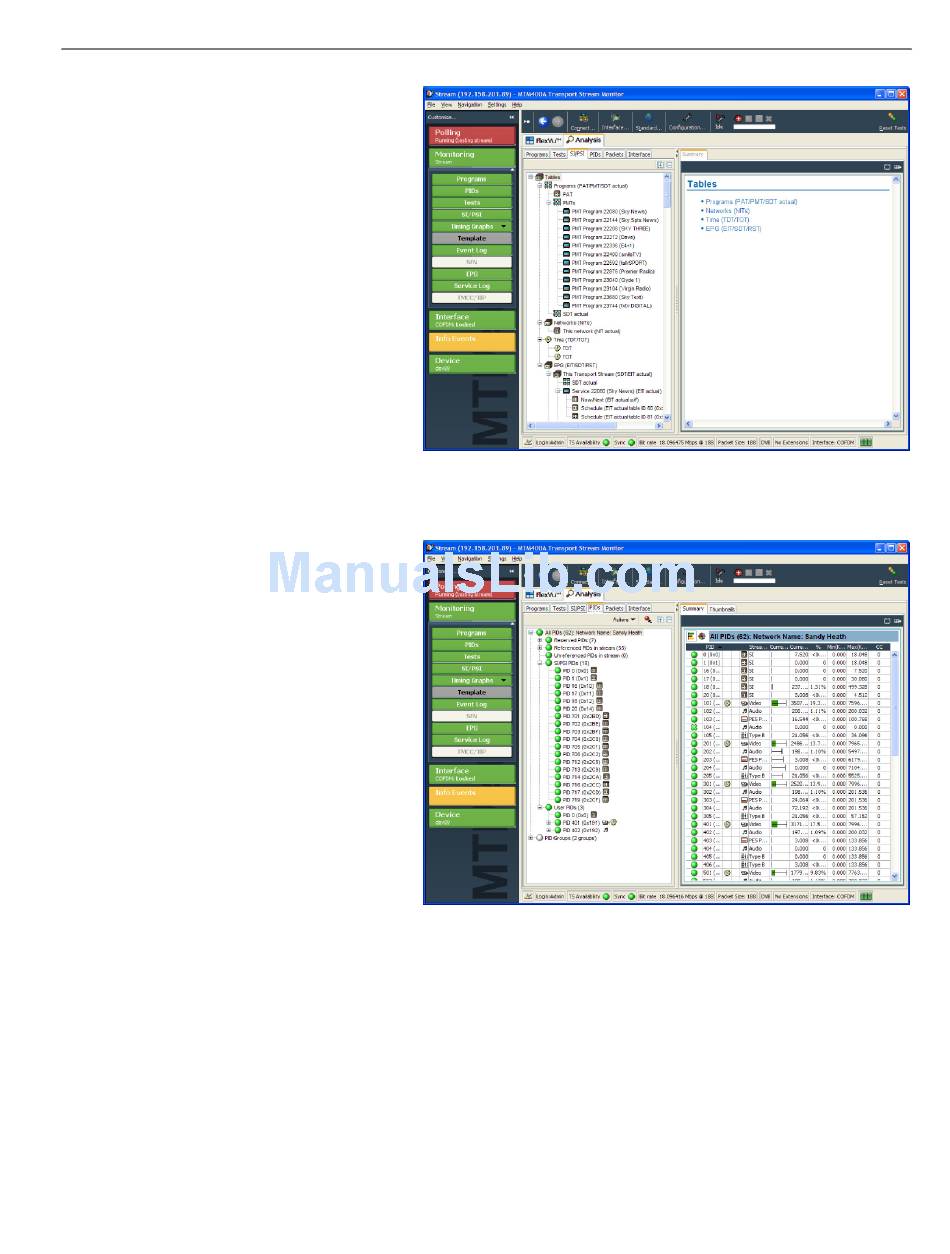

Analysis - SI/PSI (Tables) View.
The
SI/PSI (Tables) view displays the service
information tables from the analyzed
stream that comply with the selected
digital video standard. This includes
MPEG-specific program information, DVB
service information, and ATSC, ISDB
program, and system protocol informa-
tion.
The tables are grouped together by
function and hyperlinks enable you to
quickly access related information within
other tables.
Analysis - PIDs View.
The PIDs view
displays information about all of the PIDs
found in the transport stream. When you
select the transport stream, the associat-
ed summary view provides a PID-oriented
overview of the transport stream, display-
ing the relative data rates of all of the
PIDs contained within the stream.
The information can be displayed either
as a bar chart or as a pie chart. Pop-up
menus enable limit selection and links.
Each PID is associated with a number of
tests. When one or more tests fail, each
failed test will be listed under the relevant
PID. Select a specific PID to display a
summary of all the associated tests.
Select a specific test to display the Event
Log and Parameters for only that test.
