Atmos - Monitor Audio Monitor 200 Owner's Manual

1
-90°
-110°
-135°
2

Atmos

When arranging an Atmos system, for the Atmos channels we would recommend using our C265-IDC.
These speakers employ a unique pivoting IDC (Inverted Dual Concentric) midrange/ tweeter module
which offers a wider dispersion characteristic, and is ideal for Atmos duties. More information on the
C265-IDC can be found on our website: monitoraudio.com

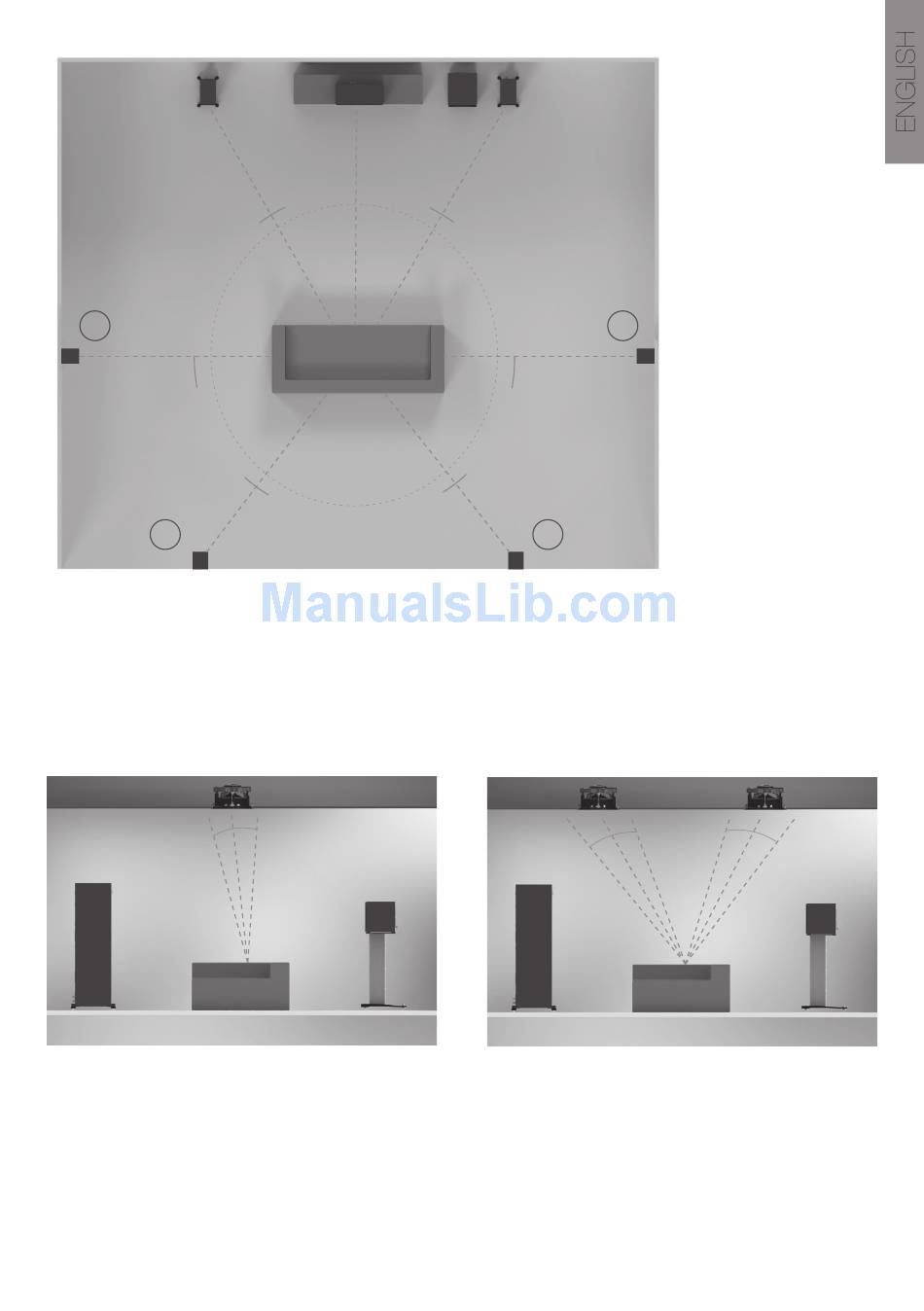

Please see below for ideal positioning of 2 or 4 speaker setups.
65°
2 Atmos speakers (in line with front left and right)
0°
-22° 22°
-30°
-150°
100°
monitoraudio.com
30°
90°
110°
135°
150°
2
30°
4 Atmos Speakers (in line with front left and right)
1. Side surround
speakers
2. Rear surround
speakers
A 7.1 surround system
will make use of side
(position 1) and rear
speakers (position 2)
to create a full 360°
soundstage, if setting up
1
a 5.1 system you can
place your surrounds in
position (1) or (2).
45°
135°
55° 125°
150°
3
