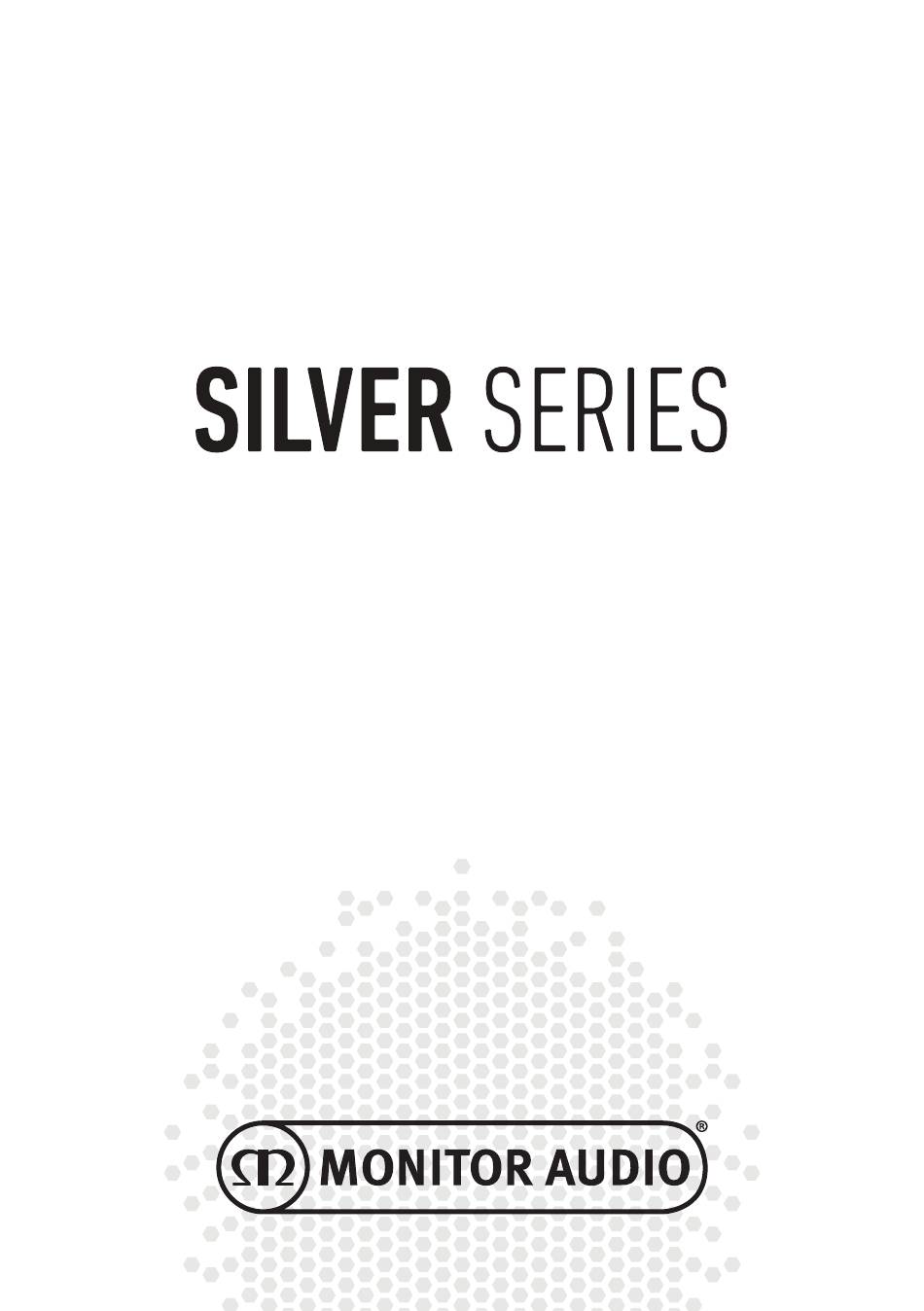

- Page 1 o w n e r s m a n u a l...
-
Page 2: Table Of Contents
Specifications Introduction The revered Silver Series is now entering its sixth generation, introducing groundbreaking design throughout the entire range. Each model has been developed to provide a wider appeal to audiophiles and home cinema enthusiasts alike, whilst elevating performance to a new level. Two new centre speakers now make it possible to assemble stylish, discrete or large, powerful home theatre systems. -
Page 3: Spikes And Feet
Spikes and Feet Select finishes are supplied with a foam gasket on the out-rigger, please ensure this side is placed on the cabinet. For Wooden/Hard Floors (Silver 200, 300 and 500 only) Spike The feet and ‘out-riggers’ are supplied assembled for use on non- carpeted, wooden or hard floors or where spikes are inappropriate. -
Page 4: Av Positioning
FX speakers handed correctly (matching left and right with the front left and right channels) as illustrated on page 5. NOTE: Before adjusting any switches, please ensure that the amplifier is at the very least turned off. This will help to protect the amplifier. Silver Series... -
Page 5: Atmos
RIGHT SPEAKER LEFT SPEAKER Bi-Pole Bi-Pole Di-Pole Di-Pole 2 ft above ear height LEFT SPEAKER RIGHT SPEAKER Bi-Pole Bi-Pole Di-Pole Di-Pole Atmos When arranging an Atmos system, for the Atmos channels we would recommend using our C265-IDC or CPCT380-IDC. These speakers employ a unique pivoting IDC (Inverted Dual Concentric) midrange/ tweeter module which offers a wider dispersion characteristic, and is ideal for Atmos duties. -
Page 6: Wiring
Bi-wiring is accomplished by connecting separate pairs of speaker cables to the terminals on the loudspeaker from a single pair of connections on the amplifier. In the case of the Silver Series, the bottom terminals connect to the bass driver(s) and the top terminals connect to the tweeter in 2 way loudspeakers, or the mid and tweeter in 2.5 and 3 way loudspeakers. -
Page 7: The Effects Of Bi-Wiring And Bi-Amping
In terms of the audible benefit, bi-wiring/ bi-amping, provides more clarity and detail to the midrange and high frequencies. Often the bass will become faster and tighter. Focus and staging will improve as well. In all, this is a very effective and desirable improvement and is highly recommended by Monitor Audio. Port bungs WARNING: Care must be taken not to insert the port bungs too far into the port, as this may result in the foam bung being lost inside the cabinet. -
Page 8: Running-In Your Speakers
Retention Bolt Adjustment The new Silver Series has a bolt-through driver fixing to reduce cabinet colouration. Each bolt acts as a rigid brace, but also removes the need for conventional driver fixings as well, effectively decoupling the driver and front baffle to eliminate a further source of resonance. - Page 10 Monitor Audio Ltd. 24 Brook Road Rayleigh, Essex SS6 7XJ England Tel: +44 (0)1268 740580 Fax: +44 (0)1268 740589 Email: info@monitoraudio.co.uk Web: monitoraudio.com Designed & Engineered in the United Kingdom Made In China Version 2. 2017...
