Installation
Manual
Contents:
- General Specifications
- Technical Specifications
- Installation Rules
- Electrical connections
- DIP-switches settings
- Programming
- Significant Components Position
- Leds Signallings
- Factory Settings
SENECA s.r.l.
Via Austria, 26 - 35127 - PADOVA - ITALY
Tel. +39.049.8705355 - 8705359 - Fax +39.049.8706287
For manuals, EDS files and configuration software, see www.seneca.it
This document is property
authorized. Contents of the present documentation refers to products and technologies described in it.
All technical data contained in the document may be modified without prior notice Content of this
documentation is subject to periodical revision.
ZC-24DO
ZC-24DO
CANopen/MODBUS I/O Module
24 Digital Outputs
of SENECA srl. Duplication and reprodution are forbidden, if not
MI001523-E
ENGLISH 1/8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Seneca ZC-24DO
Summary of Contents for Seneca ZC-24DO
- Page 1 For manuals, EDS files and configuration software, see www.seneca.it This document is property of SENECA srl. Duplication and reprodution are forbidden, if not authorized. Contents of the present documentation refers to products and technologies described in it. All technical data contained in the document may be modified without prior notice Content of this documentation is subject to periodical revision.

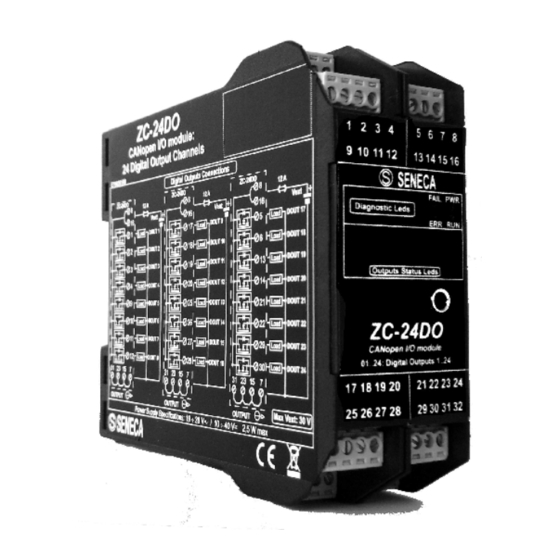

- Page 2 General Specifications • 24 Mosfet Digital Outputs with shared negative pole, 5 - 30 V collectively supplied. • Digital outputs available both by terminals and IDC10/ IDC20 connectors to facilitate the connection to external relays. • Can Interface with CANopen protocol up to 1 Mbps speed or MODBUS RS485 Interface up to 115 Kbit/s speed.
- Page 3 Humidity 30 - 90 % at 40 °C non condensing Altitude Up to 2000 m a.s.l. Storage Temperature -20 / +85 °C Protection IP20 CONNECTIONS Removable Terminals 4-way screw terminals (3.5 mm pitch): outputs. Rear IDC10 Connector CAN/MODBUS Interface and power supply (for DIN rail) IDC10 / IDC20 Connectors Outputs (on the rear, alternatively to terminals).
- Page 4 Electrical Connections POWER SUPPLY AND CAN/MODBUS INTERFACE Power Supply and CAN/MODBUS interface are available by using the bus for the Seneca DIN rail, by the rear IDC10 connector or by Z-PC-DINAL1-35 accessory. Rear Connector (IDC10) GNDCAN / GNDMODBUS CANH / A...
- Page 5 DIGITAL OUTPUTS Digital Outputs Connections from terminals The total current entering on power supply terminal must be limited to 12 A with quick-break fuse or quivalent protection. Digital Outputs Connections from connectors (module rear side) Connection suggested to supply 24 V relays. The total current entering on power supply terminal must be limited to 0.6 A with quick-break fuse or equivalent protection.
- Page 6 RS232 SERIAL PORT The connection cable DB9 with a 3.5 mm stereophonic jack, can be assembled as indicated in the following figure, or can be bought as an accessory. DIP-switches Settings The DIP-switches position defines the module CAN/MODBUS communication parameters: Address and Baud Rate. In the following figure the Baud Rate and Address values are listed as a function of the DIP-switches position: kbps) BAUD RATE (...
- Page 7 Significant Components Position Terminals/Leds/IDC10 Connector/ DIP-switch The terminals numbering, the leds position on the frontal panel, the rear IDC10 connector (fixing on the DIN rail) and the DIP-switch on the rear side are illustrated below. Frontal Panel Lateral Panel ModBus RTU PROTOCOL: FRONT PANEL JACK: RS232, 2400 BAUD, ADD.
- Page 8 - In case of fail, outputs go low. Variations of standard parameters are possible by using configuration softwares Z-NET and EASY-Z-PC (www.seneca.it). Disposal of Electrical & Electronic Equipment (Applicable throughout the European Union and other European countries with separate collections programs). This symbol, found on your producr or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it.
