This document is property of SENECA srl. Duplication and reprodution are forbidden, if not authorized. Contents of the present
documentation refers to products and technologies described in it. All technical data contained in the document may be modified
without prior notice Content of this documentation is subject to periodical revision.
To use the product safely and effectively, read carefully the following instructions before use. The product must be used only for the use
for which it was designed and built. Any other use must be considered with full responsibility of the user. The installation,
programmation and set-up is allowed only for authorized operators; these ones must be people physically and intellectually suitable.
Set up must be performed only after a correct installation and the user must perform every operation described in the installation
manual carefully. Seneca is not considered liable of failure, breakdown, accident caused for ignorance or failure to apply the indicated
requirements. Seneca is not considered liable of any unauthorized changes. Seneca reserves the right to modify the device, for any
commercial or construction requirements, without the obligation to promptly update the reference manuals.
No liability for the contents of this documents can be accepted. Use the concepts, examples and other content at your own risk. There
may be errors and inaccuracies in this document, that may of course be damaging to your system. Proceed with caution, and although
this is highly unlikely, the author(s) do not take any responsibility for that. Technical features subject to change without notice.
USER MANUAL
Z-D-IN
SENECA s.r.l.
Via Austria 26, PADOVA – ITALY
Tel. +39.049.8705355 – 8705359 Fax. +39.049.8706287
Web site:
www.seneca.it
Technical assistance:
supporto@seneca.it
Commercial reference:
(Other)
MI003419
MI00252-3
Page 1
(IT),
commerciale@seneca.it
support@seneca.it
(Other)
(IT),
sales@seneca.it
Advertisement
Table of Contents
Related Manuals for Seneca Z-D-IN
Summary of Contents for Seneca Z-D-IN
- Page 1 Set up must be performed only after a correct installation and the user must perform every operation described in the installation manual carefully. Seneca is not considered liable of failure, breakdown, accident caused for ignorance or failure to apply the indicated requirements.
- Page 2 USER MANUAL – Z-D-IN Date Revision Notes 03/08/2016 Rewriting 13/01/2022 Corrected the bytes of register 40010...
-
Page 3: Table Of Contents
USER MANUAL – Z-D-IN Table of Contents SENECA Z-D-IN ........................4 1. INTRODUCTION ......................5 1.1. FEATURES ........................ 5 2. FEATURES ........................5 3. INPUT CONNECTIONS ....................7 4. DIP-SWITCHES TABLE ....................8 5. MODBUS RTU PROTOCOL ..................9 5.1. -
Page 4: Seneca Z-D-In
UNDER ANY CIRCUMSTANCES, SENECA S.R.L. OR ITS SUPPLIERS SHALL NOT BE RESPONSIBLE FOR LOSS OF RECORDING DATA/INCOMES OR FOR CONSEQUENTIAL OR INCIDENTAL DAMAGE DUE TO NEGLECT OR RECKLESS MISHANDLING OF Z-D-IN, EVEN THOUGH SENECA IS WELL AWARE OF THESE POSSIBLE DAMAGES. -
Page 5: Introduction

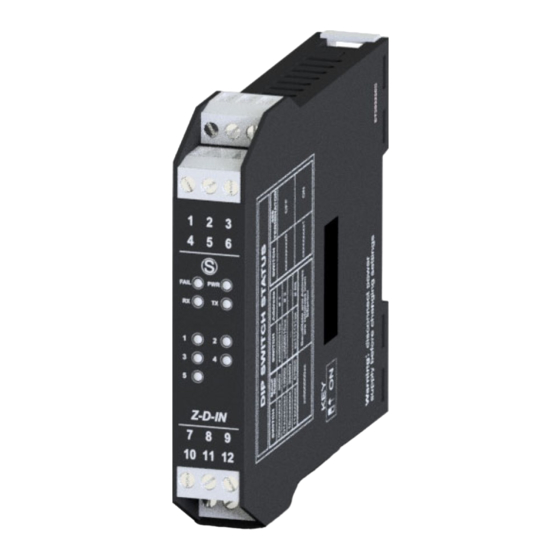

USER MANUAL – Z-D-IN 1. Introduction The Z-D-IN module acquires 5 single-ended digital signals, then converts them to a digital format (IN 1-5 state). The supported communication protocol is Modbus RTU. The following counters are available: 4 counters at 16 bit 1 counter at 16/32 bit (configurable). - Page 6 USER MANUAL – Z-D-IN POWER SUPPLY 10 – 40 Vdc or 19 – 28 Vac ( 50Hz - 60Hz) Supply voltage Power Min: 0.5W; Max: 2.5W consumption The power supply transformer necessary to supply the module must comply with EN60742 (Isolated transformers and safety transformers requirements).
-
Page 7: Input Connections
USER MANUAL – Z-D-IN 3. Input connections Power on the module with < 40 Vdc or < 28 Vac voltage supply. These upper limits must not be exceeded to avoid serious damage to the module. -
Page 8: Dip-Switches Table
USER MANUAL – Z-D-IN 4. Dip-switches table Power off the module before configuring it by Dip-Switches to avoid serious damage due to electrostatic discharges. In the following tables: box without circle means Dip-Switch=0 (OFF state); box with circle means Dip-Switch=1 (ON state). -
Page 9: Modbus Rtu Protocol
USER MANUAL – Z-D-IN 5. Modbus RTU protocol All registers are “Holding register” (Read Modbus function 3) with the convention that the first register is the 40001 address. The following Modbus functions are supported: Read Modbus Register (function 3) Write Single Modbus Register (function 6) -
Page 10: Modbus Register Addresses
USER MANUAL – Z-D-IN 5.2. Modbus Register Addresses Register Comment Regist Default Modbus Modbus Name value or Address Offset Type Start Address Value MachineID Module ID code Unsigne 40001 d 16 bits Inputs Digital inputs 1..5 status value Unsigne 40002... - Page 11 USER MANUAL – Z-D-IN Overflow bits can be written to 0 for reset. Counter 1 16 bit counter (from 0 to 65535) Unsigne 40003 The value is stored into a non d 16 bits (Non volatile) volatile RAM (FeRAM). The Counter value can be written...
- Page 12 USER MANUAL – Z-D-IN Bit 4 RS485 Parity Type If Bit4=0 Even Parity If Bit4=1 Odd Parity Bit 5 Not Used Bit 6 Not Used Bit 7 32 Bit IN5 mode If Bit7=0 IN5 is at 16Bit (default) If Bit7=1 IN5 is at 32Bit (and the...
- Page 13 USER MANUAL – Z-D-IN Counter 4 16 bit counter (from 0 to 65535) Unsigne 40018 copy The value is stored into a non d 16 bits (Non volatile) volatile RAM (FeRAM). The Counter value can be written Counter 5 counter...
-
Page 14: Leds For Signalling
USER MANUAL – Z-D-IN 6. LEDs for signalling In the front-side panel there are 9 LEDs and their state refers to important operating conditions of the module. LED status Meaning Constant light The power is on Blinking light The module has at least one of the errors/overflows described in... -
Page 15: Easy Setup
USER MANUAL – Z-D-IN 8. EASY SETUP To configure the Z-D-IN download the Easy Setup PC software from the Seneca Website: http://www.seneca.it/en/linee-di-prodotto/software/easy/easy-setup/...
