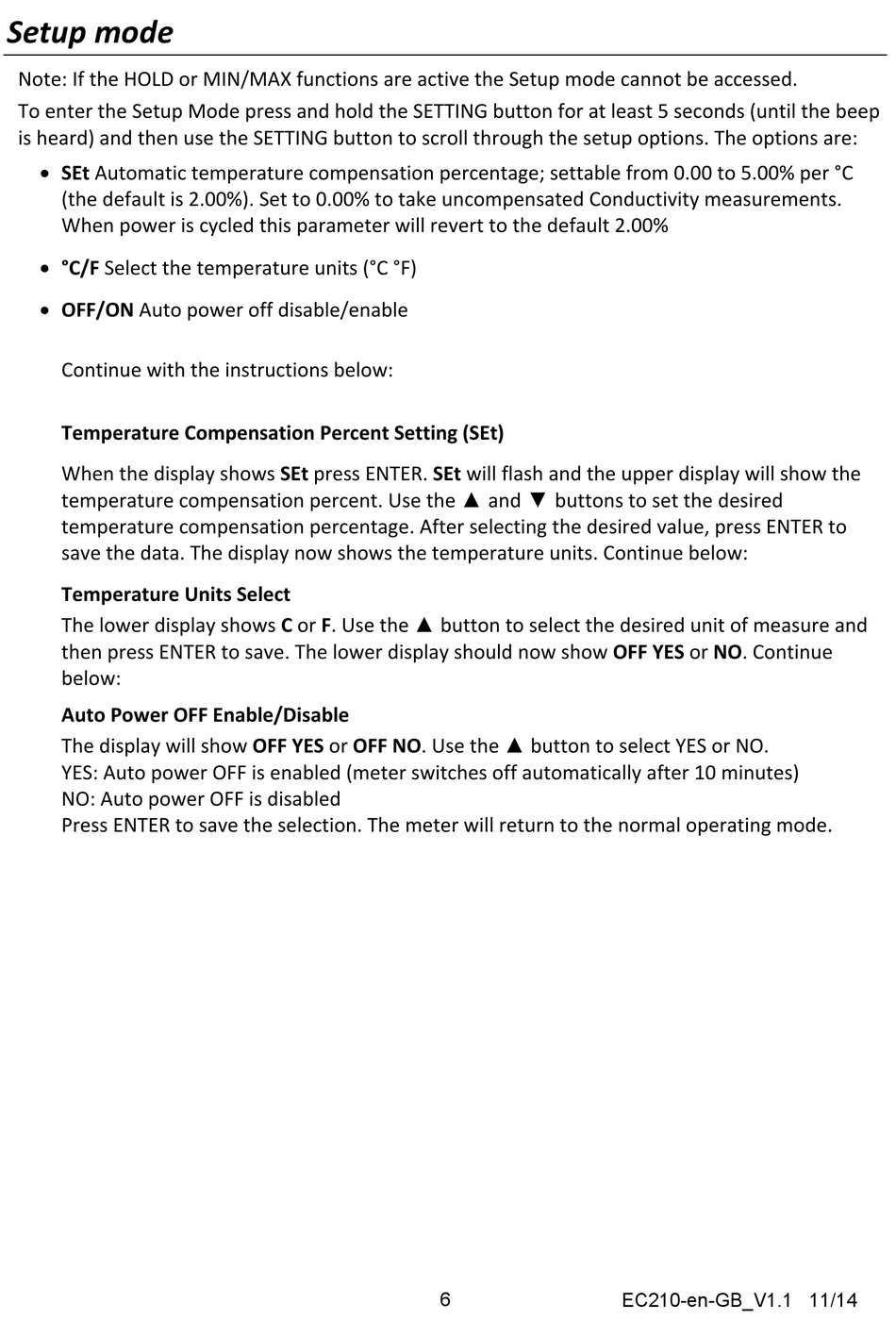

Setup mode
Note: If the HOLD or MIN/MAX functions are active the Setup mode cannot be accessed.
To enter the Setup Mode press and hold the SETTING button for at least 5 seconds (until the beep
is heard) and then use the SETTING button to scroll through the setup options. The options are:
 SEt Automatic temperature compensation percentage; settable from 0.00 to 5.00% per °C
(the default is 2.00%). Set to 0.00% to take uncompensated Conductivity measurements.
When power is cycled this parameter will revert to the default 2.00%
 °C/F Select the temperature units (°C °F)
 OFF/ON Auto power off disable/enable
Continue with the instructions below:
Temperature Compensation Percent Setting (SEt)
When the display shows SEt press ENTER. SEt will flash and the upper display will show the
temperature compensation percent. Use the ▲ and ▼ buttons to set the desired
temperature compensation percentage. After selecting the desired value, press ENTER to
save the data. The display now shows the temperature units. Continue below:
Temperature Units Select
The lower display shows C or F. Use the ▲ button to select the desired unit of measure and
then press ENTER to save. The lower display should now show OFF YES or NO. Continue
below:
Auto Power OFF Enable/Disable
The display will show OFF YES or OFF NO. Use the ▲ button to select YES or NO.
YES: Auto power OFF is enabled (meter switches off automatically after 10 minutes)
NO: Auto power OFF is disabled
Press ENTER to save the selection. The meter will return to the normal operating mode.
