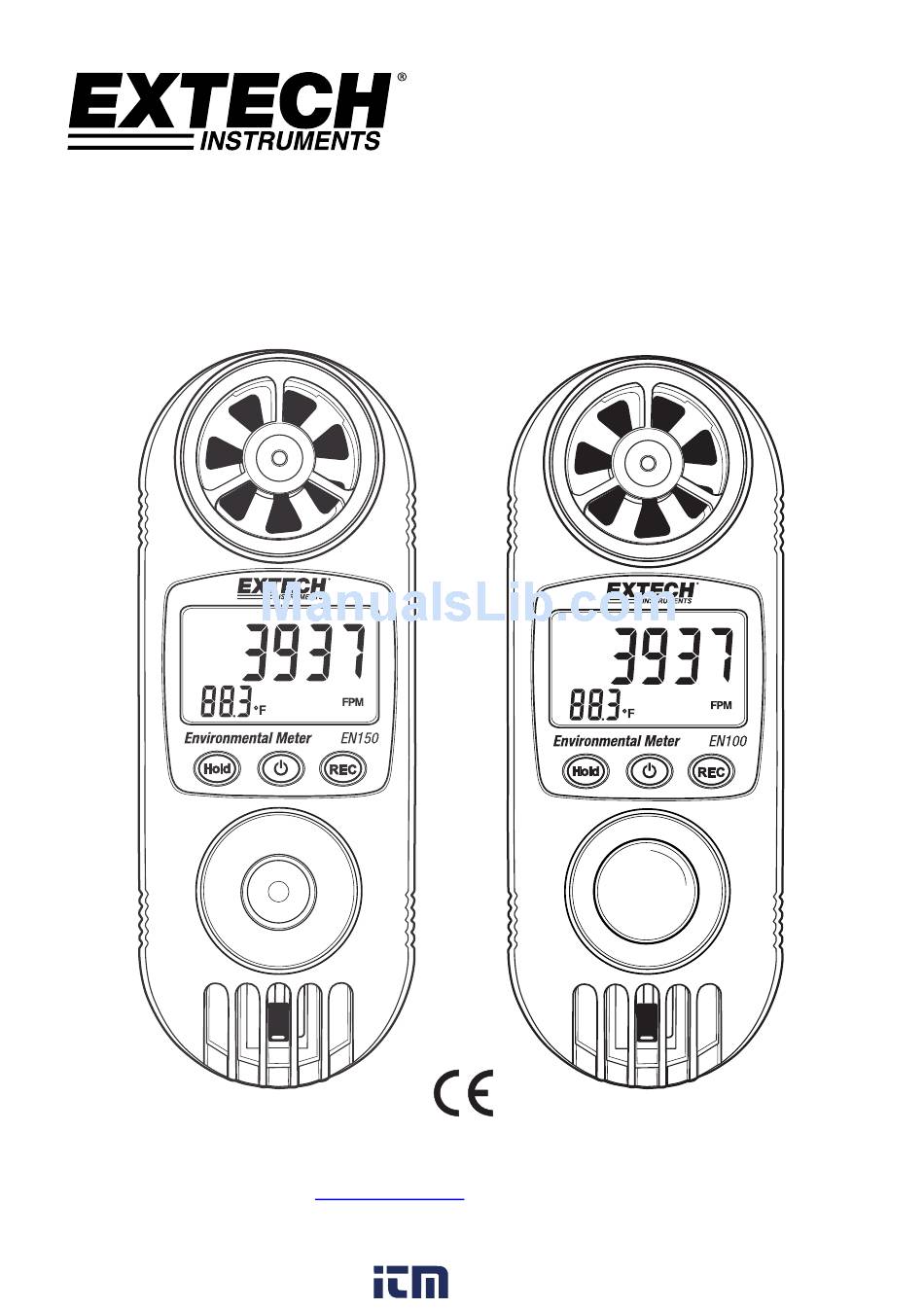

- Page 1 USER MANUAL 11 in 1 Environmental Meter Model: EN150 and EN100 Please visit www.extech.com for user manual translations 800.561.8187 information@itm.com www. .com...
- Page 2 Introduction Congratulations on your purchase of this Extech Meter. The EN100/EN150 contains 11 professional meters built into one convenient package. This meter ships fully tested and calibrated and, with proper use, should provide many years of reliable service. Features This 11-in-1 professional measuring instrument provides the following functions: 1.
- Page 3 Safety International Safety Symbols This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information. Double insulation Cautions Improper use of this meter can cause damage, shock, injury or death. Read and understand this user manual before operating the meter.
-
Page 4: Meter Description
Air Speed Sensor PT100 RTD probe input socket (optional) LCD Display Hold Button REC button Power Button Light Sensor (EN100); UV Sensor (EN150) Air Temperature and Relative Humidity sensor Note: Altitude sensor and battery compartment on rear of unit EN100‐150‐en‐US_v1.6 10/16 800.561.8187 information@itm.com www. - Page 5 Dew Point: °C/ °F Wet Bulb Temperature: °C/ °F HEAt Heat Index: °C/ °F Light Visible light: Lux, Ft-cd (EN100 only) UVA light: uW/cm², mW/cm² (EN150 only) Barometric pressure: mmHg, hPA, inHg HigH Altitude: Ft, m Optional RTD probe (PT100) EN100‐150‐en‐US_v1.6 10/16 ...
-
Page 6: Operation
Operation Powering the meter Press the Power button to turn the instrument ON If the meter does not turn on or if the " " low battery symbol appears in the display, replace the batteries. Press the Function button to select the measurement needed. Press and hold the Power button for >4 seconds to power off the unit. - Page 7 Wind Chill Measurement Select the Wind Chill function by pressing and holding the "HOLD" button until the display indicates “CHiLL” then release the HOLD button. Press and Hold the "REC" button until dCcF appears. Press the Power button (up) to select C or F.
- Page 8 Wet Bulb Measurement Select the Wet Bulb function by pressing and holding the "HOLD" button until the display indicates “_Et” then release the Hold button. Press and Hold the "REC" button until dCcF appears. Press the Power button (up) to select C or F units.
- Page 9 Unit (Lux or Ft-cd) will be displayed. The Display will reverse and will show the light illuminance value in Lux or Ft-cd. Light Measurement – UV Light (EN150 only) Select the UVA Light Measurement function by pressing and holding the "HOLD" button until the display indicates “U A”...
- Page 10 Select the preferred pressure units by pressing "REC" button unit the display shows units. Press the Power button to change the units to HPA and then press “REC” button to save. (mBar = hPa) Select the Altitude function by pressing and holding the "HOLD" button until the display indicates “HigH”...
- Page 11 Hold Function Press the "Hold Button" to freeze the current reading value, the "HOLD" symbol appears on the display. Press the button again to return to normal operation. Data Record Function The Record function captures & displays the Maximum and Minimum reading values. Start the Data Record function by pressing the "REC”...
-
Page 12: Specifications
General Specifications Display Dimensions 0.7 x 1.6” (18 x 32mm) Measurements Air Velocity, Air Flow, Wind Chill, Humidity, Dew Point, Wet Bulb, Heat Index, Light (Visible – EN100; UVA – EN150), Thermometer, Barometric Pressure, Altitude Operating Humidity 80%RH Max. Operating Temperature 32 to 122°F (0 to 50°C ) - Page 13 Humidity/Temperature Units Range Resolution Accuracy < 70 %RH :± 4 %RH 10 to 95 %RH ≧ 70 %RH :± ( 4%rdg + 1.2 %RH ) °F 32 to 122°F ± 2.5°F °C 0 to 50°C ± 1.2°C Dew Point Temperature Units Range Resolution...
- Page 14 Accuracy 0 to 2,200 Lux 1,800 to 20,000 Lux ± 5% rdg ± 8 digits 0 to 204.0 Fc Ft-cd 170 to 1,860 Fc UVA Light (EN150 only) (band pass 290nm to 390nm) Units Range Resolution Accuracy uW/cm² 0 to 1999 ±(4%Full Scale + 2 digits)
-
Page 15: Warranty
Warranty FLIR Systems, Inc. warrants this Extech Instruments brand device to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department for authorization. Visit the website www.extech.com for contact information. A Return Authorization (RA) number must be issued before any product is returned. The sender is responsible for shipping charges, freight, insurance and proper packaging to prevent damage in transit. This warranty does not apply to defects resulting from action of the user such as misuse, improper wiring, operation outside of specification, improper maintenance or repair, or unauthorized modification. FLIR Systems, Inc. specifically disclaims any implied warranties or merchantability or fitness for a specific purpose and will not be liable for any direct, indirect, incidental or consequential damages. FLIR’s total liability is limited to repair or replacement of the product. The warranty set forth above is inclusive and no other warranty, whether written or oral, is expressed or implied. Calibration, Repair, and Customer Care Services FLIR Systems, Inc. offers repair and calibration services for the Extech Instruments products we sell. NIST certification for most products is also provided. Call the Customer Service Department for information on calibration services available for this product. Annual calibrations should be performed to verify meter performance and accuracy. Technical support and general customer service is also provided, refer to the contact information provided below. Support Lines: U.S. (877) 239‐8324; International: +1 (603) 324‐7800 Technical Support: Option 3; E‐mail: support@extech.com Repair & Returns: Option 4; E‐mail: repair@extech.com Product specifications are subject to change without notice Please visit our website for the most up‐to‐date information www.extech.com FLIR Commercial Systems, Inc., 9 Townsend West, Nashua, NH 03063 USA ISO 9001 Certified Copyright © 2014‐2016 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form www.extech.com EN100‐150‐en‐US_v1.6 10/16 800.561.8187 information@itm.com www. .com... -
Page 16: Garantie
Garantie FLIR Systems, Inc. garantit que cet appareil Extech Instruments est exempt de défauts matériaux et de fabrication pendant un an à partir de la date d’envoi (une garantie limitée de six mois s’applique aux capteurs et aux câbles). Si le renvoi de l’appareil pour réparation devient nécessaire durant ou après la période de garantie, contactez le service client pour autorisation. Pour obtenir les coordonnées, visitez le site Web suivant : www.extech.com. Un numéro d’autorisation de retour (AR) doit être délivré avant tout retour de produit. L’expéditeur prend à sa charge les frais d’expédition, le fret, l’assurance et l’emballage correct de l’appareil afin de prévenir toute détérioration durant le transport. Cette garantie ne s’applique pas aux dommages imputables à l’utilisateur, tels que l’usage impropre ou abusif, un mauvais câblage, une utilisation non conforme aux spécifications, un entretien ou une réparation incorrecte, ou toute modification non autorisée. FLIR Systems, Inc. déclinera spécifiquement toute garantie ou qualité marchande ou aptitude à l’emploi prévu, et ne sera en aucun cas tenu responsable pour tout dommage conséquent, direct, indirect ou accidentel. La responsabilité totale de FLIR est limitée à la réparation ou au remplacement du produit. La garantie définie ci‐dessus est inclusive et aucune autre garantie, écrite ou orale, n’est exprimée ou implicite. Calibrage, réparation et services après‐vente FLIR Systems, Inc. offre des services de calibrage et de réparation pour les produits Extech Instruments que nous commercialisons. Nous fournissons également une certification NIST pour la plupart des produits. Contactez notre service client pour toute information sur les services de calibrage disponibles pour ce produit. Un calibrage doit être effectué chaque année pour vérifier les performances et la précision du mètre. Nous offrons également une assistance technique et un service à la clientèle. Veuillez vous reporter aux coordonnées fournies ci‐dessous. Lignes d’assistance: États‐Unis (877) 239‐8324; international: +1 (603) 324‐7800 Service d’assistance technique : Option 3 ; E‐mail : support@extech.com Réparations et retours : Option 4 ; E‐mail : repair@extech.com Les spécifications produit sont sujettes à modifications sans préavis. Pour les toutes dernières informations, veuillez visiter notre site Web. www.extech.com FLIR Commercial Systems, Inc., 9 Townsend West, Nashua, NH 03063 USA Certifié ISO 9001 Copyright © 2014‐2016 FLIR Systems, Inc. Tous droits réservés, y compris la reproduction partielle ou totale sous quelque forme que ce soit. www.extech.com EN100‐150‐en‐US_v1.6 10/16 800.561.8187 information@itm.com www. .com... - Page 17 Garantía FLIR Systems, Inc., garantiza este dispositivo marca Extech Instruments para estar libre de defectos en partes o mano de obra durante un año a partir de la fecha de embarque (se aplica una garantía limitada de seis meses para cables y sensores). Si fuera necesario regresar el instrumento para servicio durante o después del periodo de garantía, llame al Departamento de Servicio a Clientes para obtener autorización. Visite www.extech.com para Información de contacto. Se debe expedir un número de Autorización de Devolución (AD) antes de regresar cualquier producto. El remitente es responsable de los gastos de embarque, flete, seguro y empaque apropiado para prevenir daños en tránsito. Esta garantía no se aplica a defectos resultantes de las acciones del usuario como el mal uso, alambrado equivocado, operación fuera de las especificaciones, mantenimiento o reparación inadecuada o modificación no autorizada. FLIR Systems, Inc., rechaza específicamente cualesquier garantías implícitas o factibilidad de comercialización o idoneidad para cualquier propósito determinado y no será responsable por cualesquier daños directos, indirectos, incidentales o consecuentes. La responsabilidad total de FLIR está limitada a la reparación o reemplazo del producto. La garantía precedente es inclusiva y no hay otra garantía ya sea escrita u oral, expresa o implícita. Servicios de calibración, reparación y atención a clientes FLIR Systems, Inc., ofrece servicios de reparación y calibración para los productos que vendemos de Extech Instruments. Además ofrecemos certificación NIST para la mayoría de los productos. Llame al Departamento de Servicio al Cliente para solicitar información de calibración para este producto. Para verificar el funcionamiento y precisión se debe realizar la calibración anual. Además se provee Soporte Técnico y servicios generales al cliente, consulte la información de contacto en seguida. Líneas de soporte: EE.UU. (877) 239‐8324; Internacional: +1 (603) 324‐7800 Soporte Técnico Opción 3; correo electrónico: support@extech.com Reparación / Devoluciones: Opción 4; correo electrónico: repair@extech.com Las especificaciones del producto están sujetas a cambios sin aviso Por favor visite nuestra página en Internet para la información más actualizada www.extech.com FLIR Commercial Systems, Inc., 9 Townsend West, Nashua, NH 03063 USA Certificado ISO 9001 ...
