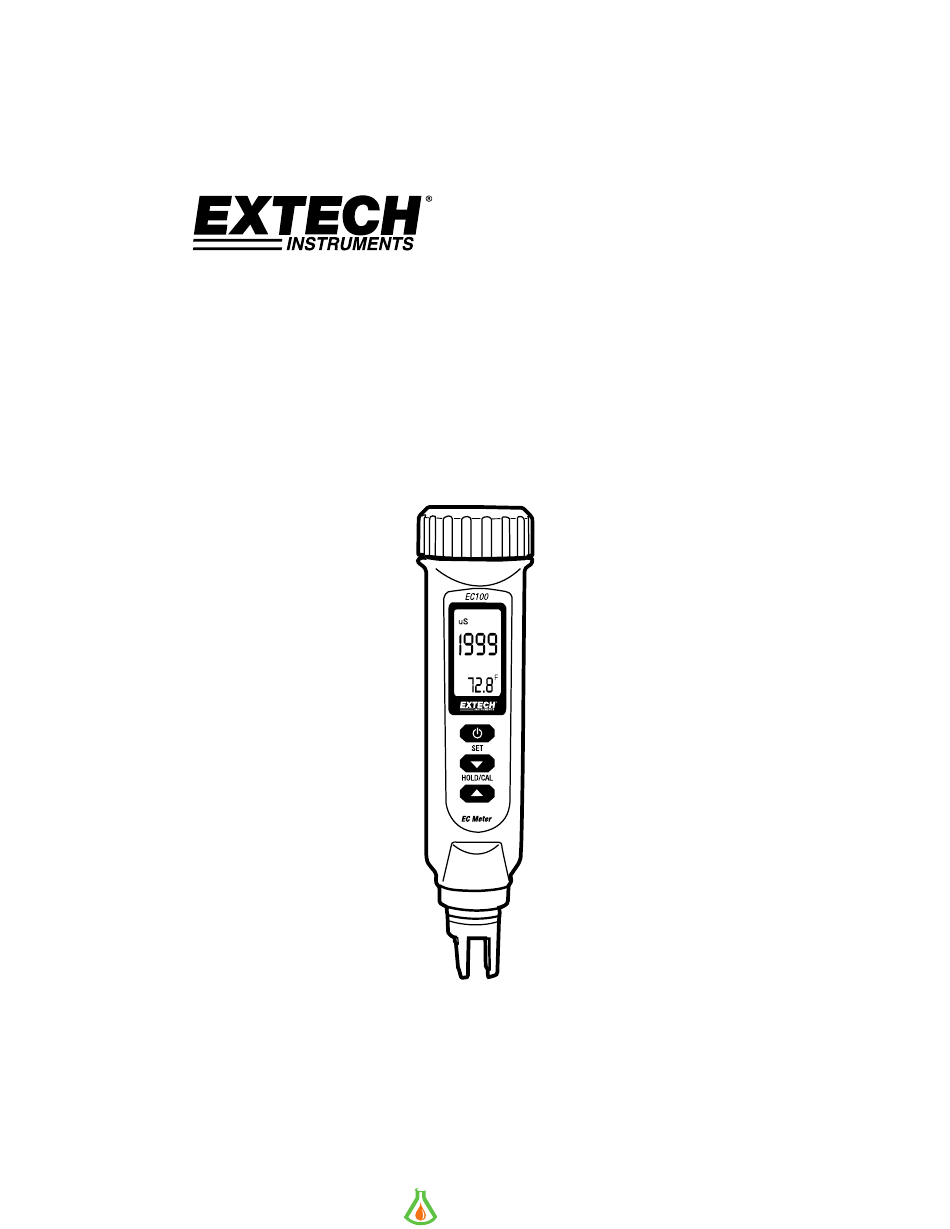

- Page 1 User's Guide Conductivity Meter Pen Style Water Quality Meter Model EC100 GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY sales@GlobalTestSupply.com www. .com The Laboratory Supply Company!
-
Page 2: Supplied Materials
Congratulations on your purchase of the Extech Pen Style Water Quality instrument; the Model EC100 measures Conductivity and Temperature. The instrument is housed in an IP65 Water-proof enclosure for safety. This instrument is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. -
Page 3: Meter Description

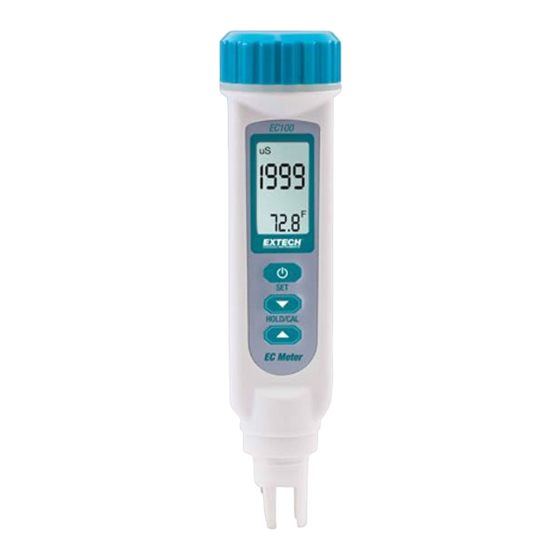

Temperature reading Temperature units of measure Battery strength indicator Calibration icon Keypad Description Power ON-OFF and SET button Down Arrow, Data Hold, and Calibration button Up arrow EC100-EU-EN v2.2 06/13 GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY sales@GlobalTestSupply.com www. .com The Laboratory Supply Company! -
Page 4: Operation
The Conductivity units of measure are µS and mS (micro- and milli-Siemens). To switch from Auto Range mode (default) to Manual Range mode press and hold the up arrow button for at least two seconds as described previously. EC100-EU-EN v2.2 06/13 GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY sales@GlobalTestSupply.com www. -
Page 5: Setup Mode
5. Press the SET button momentarily to confirm the setting. 6. Press and hold the SET button for at least 2 seconds to return to the normal operation mode or use the arrow buttons to move to Parameter P4 (see below). EC100-EU-EN v2.2 06/13 GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY sales@GlobalTestSupply.com... -
Page 6: Battery Replacement And Disposal
All EU users are legally bound by the battery ordinance to return all used batteries to collection points in your community or wherever batteries / accumulators are sold! Disposal in the household garbage is prohibited! EC100-EU-EN v2.2 06/13 GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY sales@GlobalTestSupply.com... - Page 7 Note: To exit the calibration mode without confirming the calibration, press and hold the SET button in Step 9 for at least 2 seconds. This will abort the calibration and revert to the previous calibration values. EC100-EU-EN v2.2 06/13 GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY sales@GlobalTestSupply.com...
-
Page 8: Maintenance
Check again at room temperature. If error persists, repair meter. range or Temperature circuit damage Temperature value is above allowable Check again at room temperature. If error persists, repair meter. range or Temperature circuit damage EC100-EU-EN v2.2 06/13 GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY sales@GlobalTestSupply.com www. -
Page 9: Appendix A: Factory Default Settings
0.8825 15,000 µS 8759 0.5839 8532 0.5688 13,455 0.897 80mS 52,168 0.6521 48,384 0.6048 79,688 0.9961 *442: 40% sodium sulfate, 40% sodium bicarbonate, and 20% chloride EC100-EU-EN v2.2 06/13 GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY sales@GlobalTestSupply.com www. .com The Laboratory Supply Company! -
Page 10: Appendix C: Temperature Effects
15 – 25 – 35 1.730 (15 – 27°C) 1.906 1.937 (15 – 34°C) 2.041 25 - 35 1.762 (25 – 27°C) 1.978 1.997 (25 - 34°C) 2.101 EC100-EU-EN v2.2 06/13 GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY sales@GlobalTestSupply.com www. .com The Laboratory Supply Company! -
Page 11: Specifications
Out-of-range (----) and low battery Power Supply Four (4) LR44 ‘button’ batteries Dimensions 165 x 35 x 32mm (6.5 x 1.4 x 1.3”) Copyright © 2013 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO‐9001 Certified EC100-EU-EN v2.2 06/13 GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY sales@GlobalTestSupply.com www. .com The Laboratory Supply Company!
