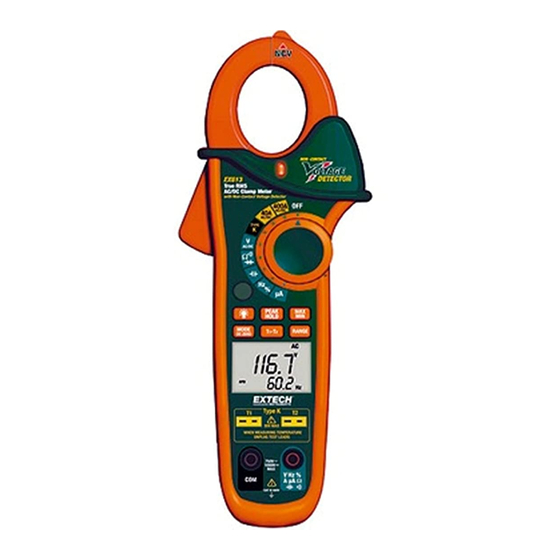

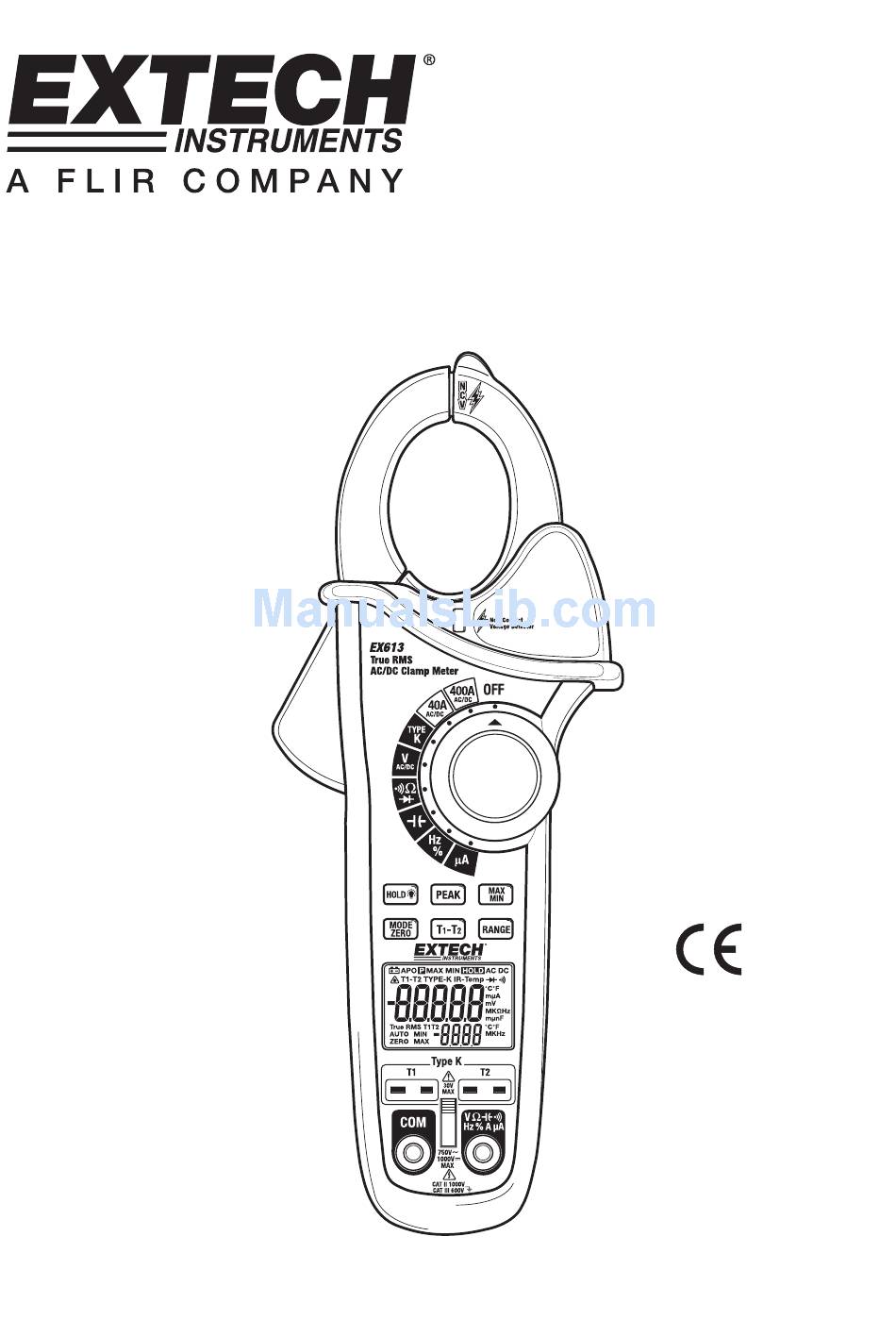

- Page 1 User's Guide 400Amp True RMS AC/DC Clamp Meter Model EX613...
- Page 2 Introduction Congratulations on your purchase of this Extech EX613 True RMS Clamp Meter. This meter measures AC Current, DC Current, AC/DC Voltage, Resistance, Capacitance, Frequency, Diode Test, Duty Cycle and Continuity. Special features include Dual Input Thermocouple Temperature, and Non- Contact Voltage detector.
-
Page 3: Safety Notes
Function Maximum Input A AC, 400A DC/AC A DC 400A DC/AC V DC, V AC 600V DC/AC Resistance, Capacitance, Frequency, Diode Test 250V DC/AC μA 4000 μA Type K Temperature 30V DC, 24V AC EX613-EU-EN-V2.6-4/12... -
Page 4: Meter Description
Farad (Capacitance) Hertz (Frequency) Duty Ratio F and Fahrenheit and Celsius units (Temperature) Therocouple 1, Thermocouple 2, Thermocouple difference n, m, μ, M, k Unit of measure prefixes: nano, milli, micro, mega, and kilo Continuity test • Diode test EX613-EU-EN-V2.6-4/12... -
Page 5: Operation
NOTE: The detector is designed with high sensitivity. Static electricity or other sources of energy may randomly trip the sensor. This is normal operation. EX613-EU-EN-V2.6-4/12... -
Page 6: Ac/Dc Current Measurements
Touch the black test probe tip to the negative side of the circuit. Touch the red test probe tip to the positive side of the circuit. Read the voltage value in the display. Frequency When ACA is selected, the measured frequency can be viewed in the lower display. EX613-EU-EN-V2.6-4/12... -
Page 7: Resistance Measurements
If one reading displays a value (typically 0.400V to 01.800V) and the other reading displays OL, the diode is good. If both readings display OL the device is open. If both readings are very small or ‘0’, the device is shorted. EX613-EU-EN-V2.6-4/12... -
Page 8: Capacitance Measurements
Touch the red test probe tip to the other side of the device. Read the Frequency value on the upper large display. Read the Duty Ratio on the lower small display. Press the MODE button to display the Duty Ratio on the large display. EX613-EU-EN-V2.6-4/12... -
Page 9: Type K Temperature Measurements
Read the temperature on the display. Press the T1-T2 button to step through the display combinations: Upper display Lower display T1-T2 T1- T2 Note: In case of an open input or a temperature overrange, the meter will display “- - - -” . EX613-EU-EN-V2.6-4/12... -
Page 10: Lcd Backlight
APO is now disabled (APO icon is off) and will be reset when the Function switch is returned to the OFF position. Low battery indication When the icon appears in the display, the battery should be replaced. Refer to the battery replacement procedure in the maintenance section. EX613-EU-EN-V2.6-4/12... -
Page 11: Maintenance
Fuse Replacement Remove the battery Remove the Phillips head screws (2) that secures the rear cover. Replace the fuse with one of equal rating. (500mA, 660V fast blow [SIBA 70-180-40]) Replace the rear cover and battery EX613-EU-EN-V2.6-4/12... -
Page 12: Specifications
0.001MΩ Capacitance 400.00nF 0.01nF ±(5.0% + 40 digits) 4000.0nF 0.1nF ±(3.0% + 10 digits) 400.00µF 0.01µF ±(3.5% + 10 digits) 4000.0µF 0.1µF ±(5.0% + 10 digits) 40.000mF 0.001mF Frequency 400.00Hz 0.01Hz ±(1.0% + 3 digits) (clamp) Sensitivity: 5Arms minimum EX613-EU-EN-V2.6-4/12... - Page 13 ±2°F/1°C 0°C 0.1° <1000° 1° >1000° 33 to 211°F ±(1.0% + 2°F/1°C) 1 to 100°C 212 to 718°F ±(1.5% + 3°F/2°C) 101 to 399°C 719 to 1832°F ±(2.5% + 7°F/4°C) 400 to 1000°C Specification does not include probe accuracy EX613-EU-EN-V2.6-4/12...
- Page 14 IEC1010-1 (2001): EN61010-1 (2001) Overvoltage Category III 600V and Category II 1000V, Pollution Degree 2. Approvals Copyright © 2012 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. www.extech.com...
