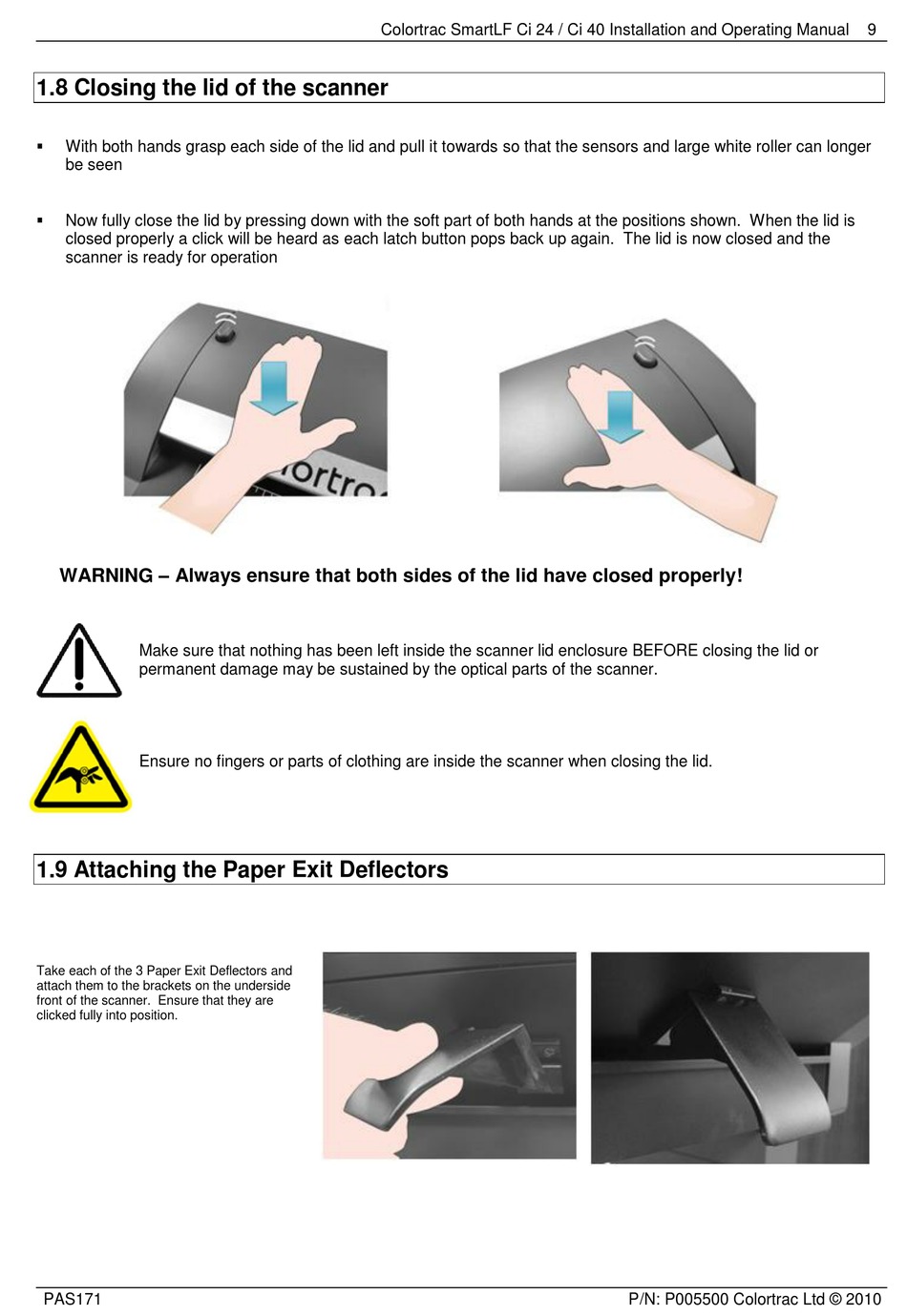

1.8 Closing the lid of the scanner


With both hands grasp each side of the lid and pull it towards so that the sensors and large white roller can longer
be seen

Now fully close the lid by pressing down with the soft part of both hands at the positions shown. When the lid is
closed properly a click will be heard as each latch button pops back up again. The lid is now closed and the
scanner is ready for operation
WARNING – Always ensure that both sides of the lid have closed properly!
Make sure that nothing has been left inside the scanner lid enclosure BEFORE closing the lid or
permanent damage may be sustained by the optical parts of the scanner.
Ensure no fingers or parts of clothing are inside the scanner when closing the lid.

1.9 Attaching the Paper Exit Deflectors

Take each of the 3 Paper Exit Deflectors and
attach them to the brackets on the underside
front of the scanner. Ensure that they are
clicked fully into position.
