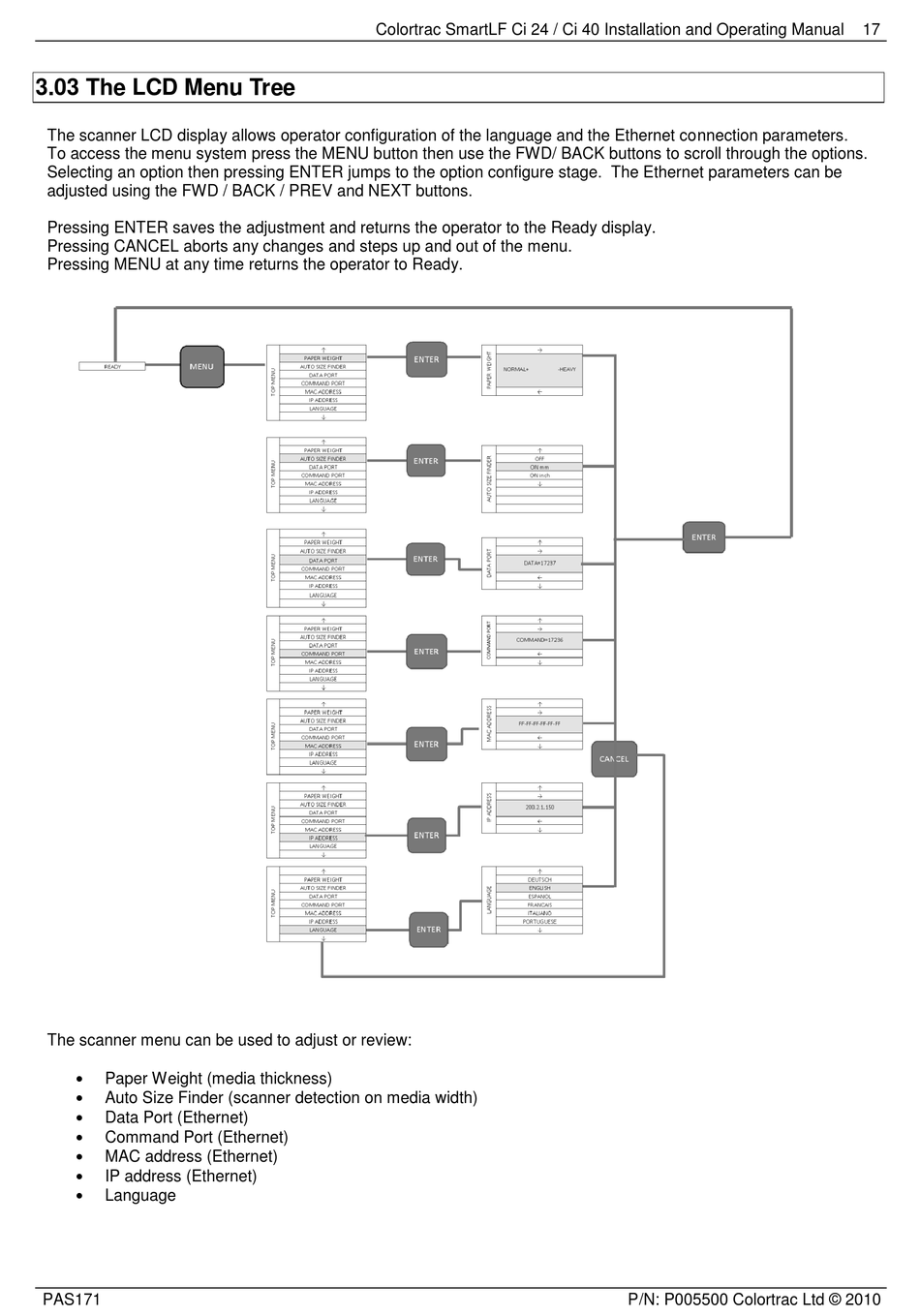

3.03 The LCD Menu Tree

The scanner LCD display allows operator configuration of the language and the Ethernet connection parameters.
To access the menu system press the MENU button then use the FWD/ BACK buttons to scroll through the options.
Selecting an option then pressing ENTER jumps to the option configure stage. The Ethernet parameters can be
adjusted using the FWD / BACK / PREV and NEXT buttons.
Pressing ENTER saves the adjustment and returns the operator to the Ready display.
Pressing CANCEL aborts any changes and steps up and out of the menu.
Pressing MENU at any time returns the operator to Ready.
The scanner menu can be used to adjust or review:

Paper Weight (media thickness)

Auto Size Finder (scanner detection on media width)

Data Port (Ethernet)

Command Port (Ethernet)

MAC address (Ethernet)

IP address (Ethernet)

Language
PAS171
Colortrac SmartLF Ci 24 / Ci 40 Installation and Operating Manual
P/N: P005500 Colortrac Ltd © 2010
17
