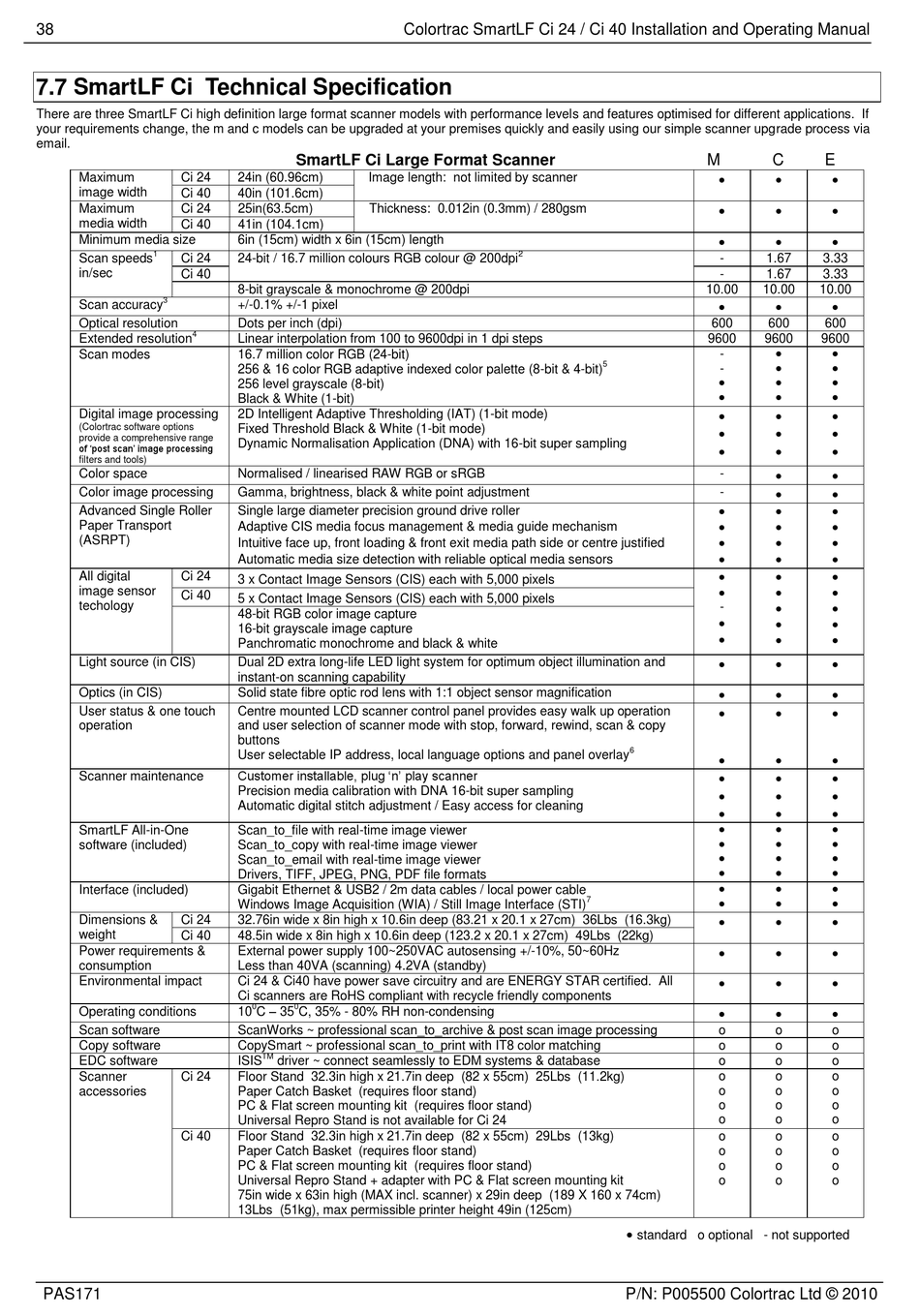

7.7 SmartLF Ci Technical Specification

There are three SmartLF Ci high definition large format scanner models with performance levels and features optimised for different applications. If
your requirements change, the m and c models can be upgraded at your premises quickly and easily using our simple scanner upgrade process via
email.
Maximum Ci 24
image width Ci 40
Maximum Ci 24
media width
Ci 40
Minimum media size
1
Scan speeds Ci 24
in/sec
Ci 40
3
Scan accuracy
Optical resolution
4
Extended resolution
Scan modes
Digital image processing
(Colortrac software options
provide a comprehensive range
of „post scan‟ image processing
filters and tools)
Color space
Color image processing
Advanced Single Roller
Paper Transport
(ASRPT)
All digital Ci 24
image sensor
Ci 40
techology
Light source (in CIS)
Optics (in CIS)
User status & one touch
operation
Scanner maintenance
SmartLF All-in-One
software (included)
Interface (included)
Dimensions & Ci 24
weight
Ci 40
Power requirements &
consumption
Environmental impact
Operating conditions
Scan software
Copy software
EDC software
Scanner Ci 24
accessories
Ci 40
PAS171
Colortrac SmartLF Ci 24 / Ci 40 Installation and Operating Manual
SmartLF Ci Large Format Scanner
24in (60.96cm) Image length: not limited by scanner
40in (101.6cm)
25in(63.5cm) Thickness: 0.012in (0.3mm) / 280gsm
41in (104.1cm)
6in (15cm) width x 6in (15cm) length
24-bit / 16.7 million colours RGB colour @ 200dpi
8-bit grayscale & monochrome @ 200dpi
+/-0.1% +/-1 pixel
Dots per inch (dpi)
Linear interpolation from 100 to 9600dpi in 1 dpi steps
16.7 million color RGB (24-bit)
256 & 16 color RGB adaptive indexed color palette (8-bit & 4-bit)
256 level grayscale (8-bit)
Black & White (1-bit)
2D Intelligent Adaptive Thresholding (IAT) (1-bit mode)
Fixed Threshold Black & White (1-bit mode)
Dynamic Normalisation Application (DNA) with 16-bit super sampling
Normalised / linearised RAW RGB or sRGB
Gamma, brightness, black & white point adjustment
Single large diameter precision ground drive roller
Adaptive CIS media focus management & media guide mechanism
Intuitive face up, front loading & front exit media path side or centre justified
Automatic media size detection with reliable optical media sensors
3 x Contact Image Sensors (CIS) each with 5,000 pixels
5 x Contact Image Sensors (CIS) each with 5,000 pixels
48-bit RGB color image capture
16-bit grayscale image capture
Panchromatic monochrome and black & white
Dual 2D extra long-life LED light system for optimum object illumination and
instant-on scanning capability
Solid state fibre optic rod lens with 1:1 object sensor magnification
Centre mounted LCD scanner control panel provides easy walk up operation
and user selection of scanner mode with stop, forward, rewind, scan & copy
buttons
User selectable IP address, local language options and panel overlay
Customer installable, plug „n‟ play scanner
Precision media calibration with DNA 16-bit super sampling
Automatic digital stitch adjustment / Easy access for cleaning
Scan_to_file with real-time image viewer
Scan_to_copy with real-time image viewer
Scan_to_email with real-time image viewer
Drivers, TIFF, JPEG, PNG, PDF file formats
Gigabit Ethernet & USB2 / 2m data cables / local power cable
Windows Image Acquisition (WIA) / Still Image Interface (STI)
32.76in wide x 8in high x 10.6in deep (83.21 x 20.1 x 27cm) 36Lbs (16.3kg)
48.5in wide x 8in high x 10.6in deep (123.2 x 20.1 x 27cm) 49Lbs (22kg)
External power supply 100~250VAC autosensing +/-10%, 50~60Hz
Less than 40VA (scanning) 4.2VA (standby)
Ci 24 & Ci40 have power save circuitry and are ENERGY STAR certified. All
Ci scanners are RoHS compliant with recycle friendly components
0 C – 35 0
10 C, 35% - 80% RH non-condensing
ScanWorks ~ professional scan_to_archive & post scan image processing
CopySmart ~ professional scan_to_print with IT8 color matching
TM
ISIS driver ~ connect seamlessly to EDM systems & database
Floor Stand 32.3in high x 21.7in deep (82 x 55cm) 25Lbs (11.2kg)
Paper Catch Basket (requires floor stand)
PC & Flat screen mounting kit (requires floor stand)
Universal Repro Stand is not available for Ci 24
Floor Stand 32.3in high x 21.7in deep (82 x 55cm) 29Lbs (13kg)
Paper Catch Basket (requires floor stand)
PC & Flat screen mounting kit (requires floor stand)
Universal Repro Stand + adapter with PC & Flat screen mounting kit
75in wide x 63in high (MAX incl. scanner) x 29in deep (189 X 160 x 74cm)
13Lbs (51kg), max permissible printer height 49in (125cm)
2
5
6
7

standard o optional - not supported
