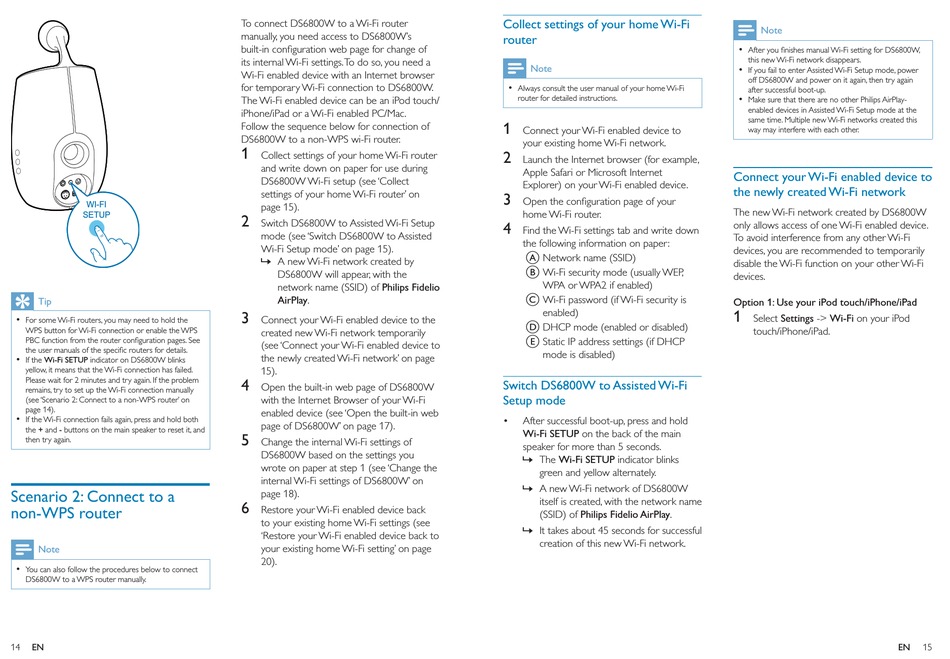

Scenario 2: Connect To A Non-Wps Router - Philips Fidelio SoundSphere User Manual

Mini wireless speakers with airplay
Hide thumbs

Advertisement

WI-FI
WI-FI
SETUP
SETUP
Tip
For some Wi-Fi routers, you may need to hold the
WPS button for Wi-Fi connection or enable the WPS
PBC function from the router configuration pages. See
the user manuals of the specific routers for details.
If the Wi-Fi SETUP indicator on DS6800W blinks
yellow, it means that the Wi-Fi connection has failed.
Please wait for 2 minutes and try again. If the problem
remains, try to set up the Wi-Fi connection manually
(see 'Scenario 2: Connect to a non-WPS router' on
page 14).
If the Wi-Fi connection fails again, press and hold both
the + and - buttons on the main speaker to reset it, and
then try again.
Scenario 2: Connect to a
non-WPS router
Note
You can also follow the procedures below to connect
DS6800W to a WPS router manually.
14
EN
To connect DS6800W to a Wi-Fi router
manually, you need access to DS6800W's
built-in configuration web page for change of
its internal Wi-Fi settings. To do so, you need a
Wi-Fi enabled device with an Internet browser
for temporary Wi-Fi connection to DS6800W.
The Wi-Fi enabled device can be an iPod touch/
iPhone/iPad or a Wi-Fi enabled PC/Mac.
Follow the sequence below for connection of
DS6800W to a non-WPS wi-Fi router.
1
Collect settings of your home Wi-Fi router
and write down on paper for use during
DS6800W Wi-Fi setup (see 'Collect
settings of your home Wi-Fi router' on
page 15).
2
Switch DS6800W to Assisted Wi-Fi Setup
mode (see 'Switch DS6800W to Assisted
Wi-Fi Setup mode' on page 15).
»
A new Wi-Fi network created by
DS6800W will appear, with the
network name (SSID) of Philips Fidelio
AirPlay.
3
Connect your Wi-Fi enabled device to the
created new Wi-Fi network temporarily
(see 'Connect your Wi-Fi enabled device to
the newly created Wi-Fi network' on page
15).
4
Open the built-in web page of DS6800W
with the Internet Browser of your Wi-Fi
enabled device (see 'Open the built-in web
page of DS6800W' on page 17).
5
Change the internal Wi-Fi settings of
DS6800W based on the settings you
wrote on paper at step 1 (see 'Change the
internal Wi-Fi settings of DS6800W' on
page 18).
6
Restore your Wi-Fi enabled device back
to your existing home Wi-Fi settings (see
'Restore your Wi-Fi enabled device back to
your existing home Wi-Fi setting' on page
20).
Collect settings of your home Wi-Fi
router
Note
Always consult the user manual of your home Wi-Fi
router for detailed instructions.
1
Connect your Wi-Fi enabled device to
your existing home Wi-Fi network.
2
Launch the Internet browser (for example,
Apple Safari or Microsoft Internet
Explorer) on your Wi-Fi enabled device.
3
Open the configuration page of your
home Wi-Fi router.
4
Find the Wi-Fi settings tab and write down
the following information on paper:
A Network name (SSID)
B Wi-Fi security mode (usually WEP,
WPA or WPA2 if enabled)
C Wi-Fi password (if Wi-Fi security is
enabled)
D DHCP mode (enabled or disabled)
E Static IP address settings (if DHCP
mode is disabled)
Switch DS6800W to Assisted Wi-Fi
Setup mode
After successful boot-up, press and hold
Wi-Fi SETUP on the back of the main
speaker for more than 5 seconds.
»
The Wi-Fi SETUP indicator blinks
green and yellow alternately.
»
A new Wi-Fi network of DS6800W
itself is created, with the network name
(SSID) of Philips Fidelio AirPlay.
»
It takes about 45 seconds for successful
creation of this new Wi-Fi network.
Note
After you finishes manual Wi-Fi setting for DS6800W,
this new Wi-Fi network disappears.
If you fail to enter Assisted Wi-Fi Setup mode, power
off DS6800W and power on it again, then try again
after successful boot-up.
Make sure that there are no other Philips AirPlay-
enabled devices in Assisted Wi-Fi Setup mode at the
same time. Multiple new Wi-Fi networks created this
way may interfere with each other.
Connect your Wi-Fi enabled device to
the newly created Wi-Fi network
The new Wi-Fi network created by DS6800W
only allows access of one Wi-Fi enabled device.
To avoid interference from any other Wi-Fi
devices, you are recommended to temporarily
disable the Wi-Fi function on your other Wi-Fi
devices.
Option 1: Use your iPod touch/iPhone/iPad
1
Select Settings -> Wi-Fi on your iPod
touch/iPhone/iPad.
EN
15
